ZL6105

概要

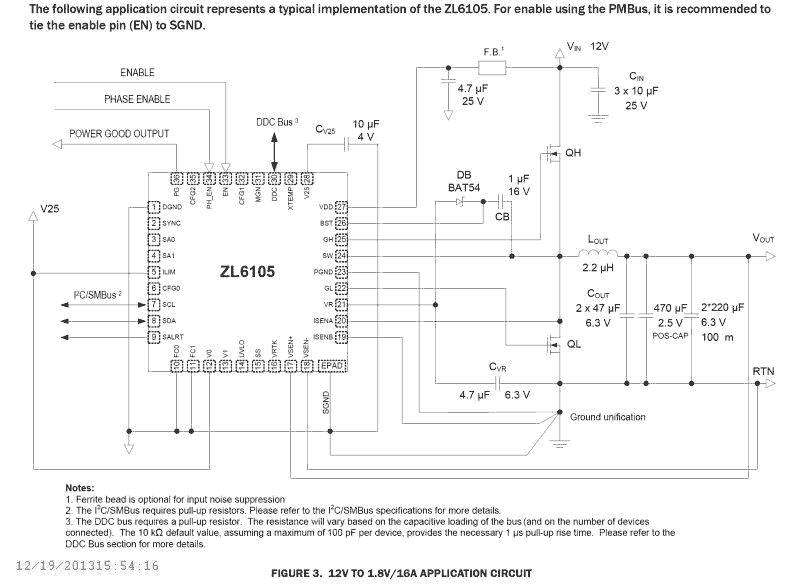

The ZL6105 is a digital power controller with integrated MOSFET drivers. Auto compensation eliminates the need for manual compensation design work. Adaptive performance optimization algorithms improve power conversion efficiency. Zilker Labs Digital-DC™ technology enables a blend of power conversion performance and power management features. The ZL6105 is designed to be a flexible building block for DC power and can be easily adapted to designs ranging from a single-phase power supply operating from a 3. 3V to a multiphase current sharing supply operating from a 12V input. The ZL6105 eliminates the need for complicated power supply managers as well as numerous external discrete components. The ZL6105 uses the I²C/SMBus™ with PMBus™ protocol for communication with a host controller and the Digital-DC bus for communication between Zilker Labs devices. The ZL6105 is pin for pin compatible with the ZL2008. The POLA V_OUT table and compensation table have been removed. A new single resistor V_OUT table and the Auto Compensation feature have been added.

Power Conversion
Efficient Synchronous Buck Controller
Auto Compensating PID Filter
Adaptive Light Load Efficiency Optimization
3V to 14V Input Range
0.54V to 5.5V Output Range (with margin)
±1% Output Voltage Accuracy
Internal 3A MOSFET Drivers
Fast Load Transient Response
Current Sharing and Phase Interleaving
Snapshot™ Parameter Capture
Pb-Free (RoHS Compliant)
Digital Soft-start/stop
Power-Good/Enable
Voltage Tracking, Sequencing and Margining
Voltage, Current and Temperature Monitoring
I²C/SMBus Interface, PMBus Compatible
Output Voltage and Current Protection
Internal Non-volatile Memory (NVM)

Servers/Storage Equipment
Telecom/Datacom Equipment
Power Supply Modules
