The ISL28005 is a ground-sensing current sense amplifier that amplifies millivolt current signals developed across sub-1Ω sense resistors.

The ISL28005 sub-family of lower-cost amplifiers for general (current) sensing applications feature measurement accuracies better than 4% and input offset voltages less than 500μV over the -40 °C to +125 °C temperature range.

The ISL28005xEVAL1Z evaluation board is a design platform containing all the circuitry needed to characterize critical performance parameters of the ISL28005 in either a high-side or low-side current sense application. The ISL28005 is available in fixed 100V/V, 50V/V, 20V/V gains.

For greater precision, the ISL28006 sub-family offers gain accuracy and input offset voltages as low as 1% and 300μV over the full temperature range, depending on the device.

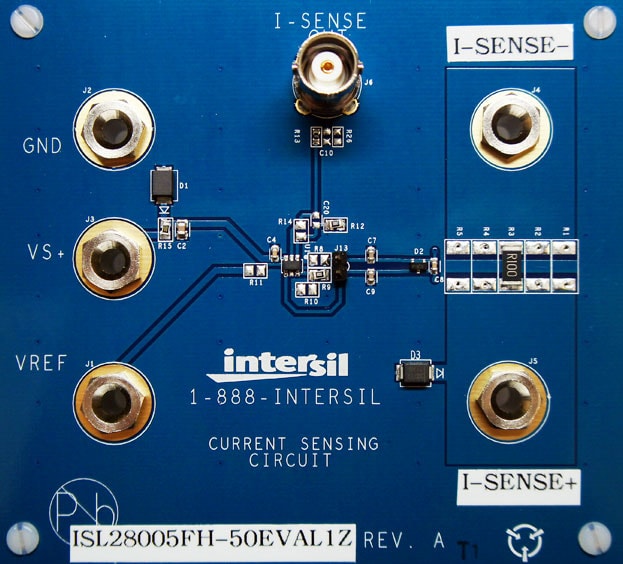

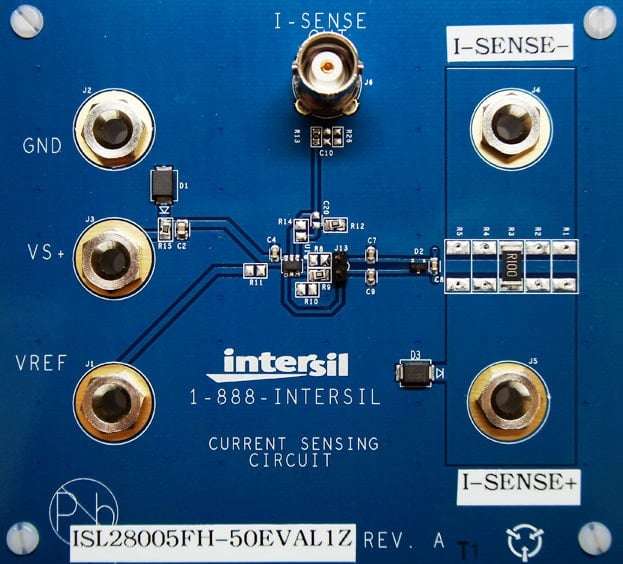

ISL28005/6FH-xxEV1Z Current Sense Amplifier Eval Board
ISL28005/6FH-xxEV1Z Current Sense Amplifier Eval Board
  • Low power consumption: 50µA,Typ.
  • Supply range: 2.7V to 28V
  • Wide common mode input: 0V to 28V
  • Fixed gain versions
    • ISL28005-100: 100V/V
    • ISL28005-50: 50V/V
    • ISL28005-20: 20V/V
  • ISL28005
    • Vos max = 500uV
    • Gain accuracy max = 2%
  • ISL28006
    • Vos max = 250uV
    • Gain accuracy max = 0.7%
    • Adjustable gain option – ISL28006-ADJ

アプリケーション

  • Power management/monitors
  • Power distribution and safety
  • DC/DC, AC/DC converters
  • Battery management /charging
  • Automotive power distribution

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－開発ツール
ISL28005xEVAL1Z Evaluation Board Manual
PDF 1.48 MB
1件

設計・開発

ソフトウェアダウンロード
分類 タイトル 日時
PCB設計ファイル
ISL2800xEVAL1Z Design Files
ZIP 241 KB
1件

製品選択

    Processing table
    説明
    ご購入 / サンプル
    型名
    ISL28005FH-50EVAL1Z
    circleアクティブ
    サンプル入手可能
    今すぐ購入する
    		Micropower, Rail-to-Rail Input Current Sense Amplifier with Voltage Output and 50V/V Fixed Gain サンプルを入手,
    ISL28005FH-100EVAL1Z
    circleアクティブ
    サンプル入手可能
    今すぐ購入する
    		Micropower, Rail-to-Rail Input Current Sense Amplifier with Voltage Output and 100V/V Fixed Gain サンプルを入手,
    ISL28005FH-20EVAL1Z
    circleアクティブ
    サンプル入手可能
    今すぐ購入する
    		Micropower, Rail-to-Rail Input Current Sense Amplifier with Voltage Output and 20V/V Fixed Gain サンプルを入手,
