概要

The ISL28218SOICEVAL1Z evaluation board is designed to evaluate the performance of the ISL28218 40V precision low power operational amplifier. The ISL28218 is a single supply, rail-to-rail output, dual amplifier with ground sensing inputs that allow the common mode input voltage to swing 0.5V below the V- rail. The ISL28218 can operate from a single or dual supply with a 3V to 40V supply range. The ISL28218 features very low power, low offset voltage and low temperature drift making it ideal for use in applications for precision medical and instrumentation, current sensing, and power supply and industrial process controls.

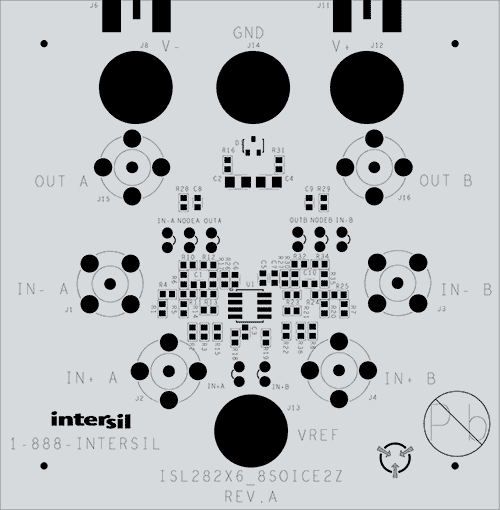

ISL28218SOICEVAL1Z 40V Precision Op Amp Eval Board
ISL28218SOICEVAL1Z 40V Precision Op Amp Eval Board
  • Single supply operation: +3V to +40V
  • Dual supply operation: ±1.5V to ±20V
  • Singled-ended or differential input operation
  • External VREF input
  • Banana jack connectors for power supply and VREF inputs
  • BNC connectors for op amp input and output terminals
  • Convenient PCB pads for op amp input/output impedance loading

アプリケーション

  • Precision instruments
  • Medical instrumentation
  • Data acquisition
  • Power supply control
  • Industrial process control

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－開発ツール
ISL28218SOICEVAL1Z User Guide
PDF 472 KB
データシート
ISL28118, ISL28218 Datasheet
PDF 1.68 MB
2件

設計・開発

ソフトウェアダウンロード
分類 タイトル 日時
PCB設計ファイル
ISL28218SOICEVAL1Z Design Files
ZIP 216 KB
1件
