概要

The HFA3102 is an all NPN transistor array configured as dual differential amplifiers with tail transistors. Based on Intersil bonded wafer UHF-1 SOI process, this array achieves very high fT (10GHz) while maintaining excellent hFE and VBE matching characteristics over temperature. Collector leakage currents are maintained to under 0. 01nA.

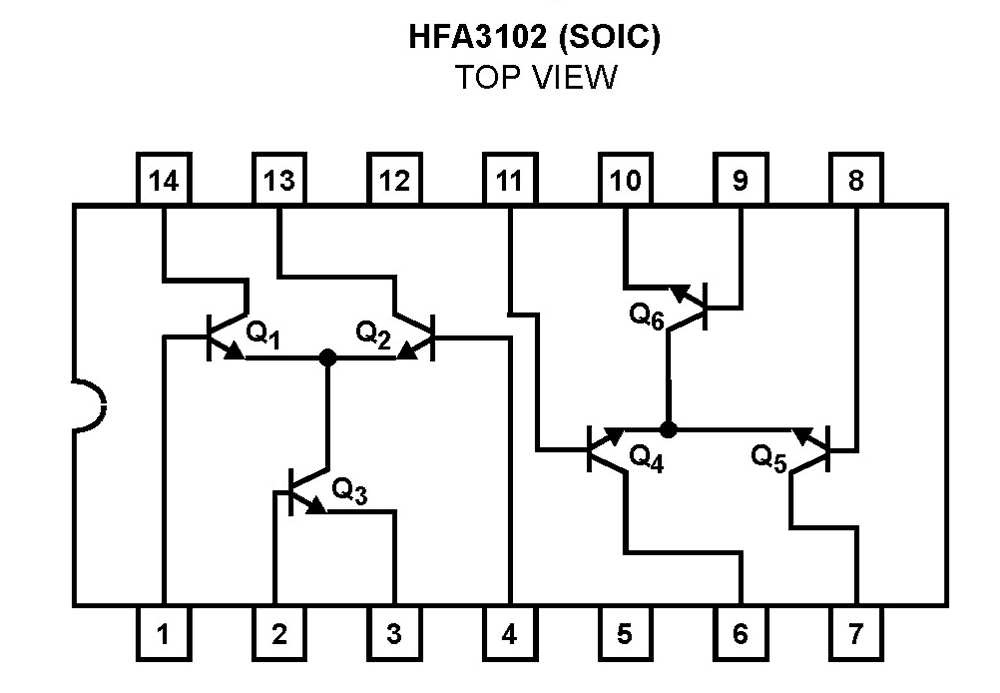

HFA3102 Functional Diagram
HFA3102 Functional Diagram
  • High Gain-Bandwidth Product (fT) 10GHz
  • High Power Gain-Bandwidth Product 5GHz
  • High Current Gain (hFE) 70
  • Noise Figure (Transistor) 3.5dB
  • Low Collector Leakage Current <0.01nA
  • Excellent hFE and VBE Matching
  • Pin-to-Pin to UPA102G
  • Pb-Free Plus Anneal Available (RoHS Compliant)

アプリケーション

  • Single Balanced Mixers
  • Wide Band Amplification Stages
  • Differential Amplifiers
  • Multipliers
  • Automatic Gain Control Circuits
  • Frequency Doublers, Tripplers
  • Oscillators
  • Constant Current Sources
  • Wireless Communication Systems
  • Radio and Satellite Communications
  • Fiber Optic Signal Processing
  • High Performance Instrumentation

ドキュメント

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    ご購入 / サンプル
    型名
    HFA3102BZ
    circleアクティブ
    memory
    spa
    view_in_ar
    サンプル入手可能
    今すぐ購入する
    		SOICN Tube 3 4.5 サンプルを入手,
    HFA3102BZ96
    circleアクティブ
    memory
    spa
    view_in_ar
    今すぐ購入する
    		SOICN Reel 3 4.5
