14-Bit, +3.3V, 210/130MSPS High-Speed D/A Converter Evaluation Board
The ISL5961EVAL1 evaluation board provides a quick and easy method for evaluating the ISL5961 14-bit, 130/210MSPS high-speed digital-to-analog (D/A) converter. The...
主要ドキュメント:
概要
説明

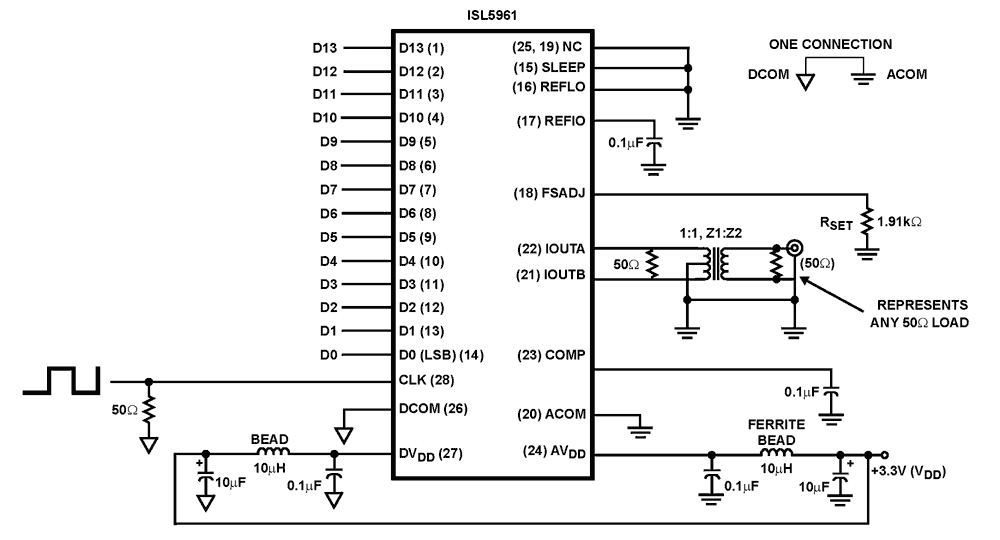

The ISL5961 is a 14-bit, 130/210+MSPS (Mega Samples Per Second), CMOS, high-speed, low power, D/A (digital-to-analog) converter, designed specifically for use in high-performance communication systems such as base transceiver stations utilizing 2.5G or 3G cellular protocols. This device complements the ISL5x61 family of high-speed converters, which include 10, 12 and 14-bit devices.
特長
- Speed grades 130M and 210+MSPS
- Low power 103mW with 20mA output at 130MSPS
- Adjustable full-scale output current 2mA to 20mA
- +3.3V power supply
- 3V LVCMOS compatible inputs
- Excellent spurious free dynamic range (75dBc to Nyquist, fS = 130MSPS, fOUT = 10MHz)
- UMTS adjacent channel power = 71dB at 19.2MHz
- EDGE/GSM SFDR = 94dBc at 11MHz in 20MHz window
- Pin compatible, 3.3V, lower power replacement for the AD9754 and HI5960
- Pb-free available
製品比較
アプリケーション
- Cellular infrastructure - Single or multi-carrier: IS-136, IS- 95, GSM, EDGE, CDMA2000, WCDMA, TDS-CDMA
- BWA infrastructure
- Medical/Test instrumentation
- Wireless communication systems
- High-resolution imaging systems
- Arbitrary waveform generators
ドキュメント
ピックアップ
ログイン後、ご登録が可能となります。
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日時 |
| データシート | PDF 1.00 MB | |
| カタログ | PDF 5.67 MB 英語 | |
| 製品変更通知 | PDF 98 KB | |
| アプリケーションノート | PDF 503 KB | |
| アプリケーションノート | PDF 1.08 MB | |
| アプリケーションノート | PDF 287 KB | |
6件
|
||
設計・開発
ボード＆キット
14-Bit, +3.3V, 210/130MSPS High-Speed D/A Converter Evaluation Board
The ISL5961EVAL2 evaluation board provides a quick and easy method for evaluating the ISL5961 14-bit, 130/210MSPS high-speed digital-to-analog (D/A) converter. The...
主要ドキュメント:
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
| TSSOP | Tube | 3 | 9.425 | サンプルを入手, |
