概要

The Intersil ISL43L110 and ISL43L111 devices are low ON-resistance, low voltage, bidirectional, single pole/single throw (SPST) analog switches designed to operate from a single +1. 1V to +4. 5V supply. Targeted applications include battery powered equipment that benefit from low RON resistance, excellent RON flatness, and fast switching speeds (tON = 8ns, tOFF = 5ns). The digital logic input is 1. 8V CMOS compatible when using a single +3V supply. Cell phones, for example, often face ASIC functionality limitations. The number of analog input or GPIO pins may be limited and digital geometries are not well suited to analog switch performance. This family of parts may be used to switch in additional functionality while reducing ASIC design risk. The ISL43L11X are offered in a 5 lead SC70 package, alleviating board space limitations. The ISL43L110 has one normally open (NO) switch and ISL43L111 has one normally closed (NC) switch.

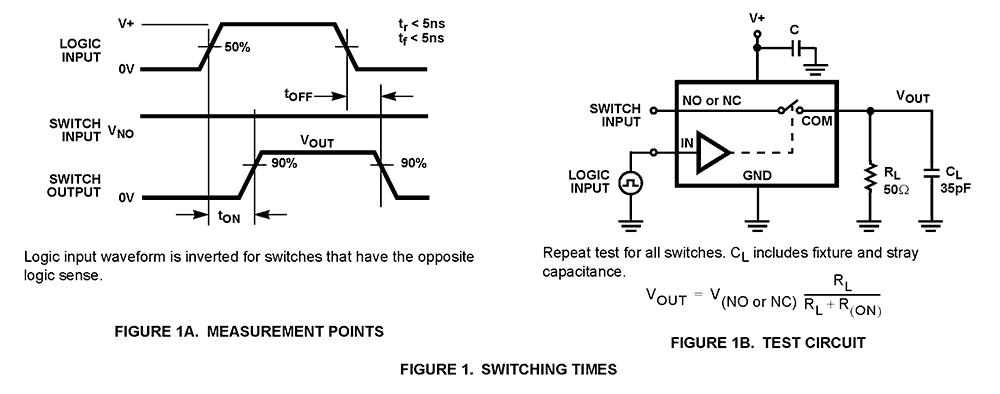

ISL43L110 Functional Diagram
ISL43L110 Functional Diagram
  • Pb-Free available (RoHS compliant)
  • Drop in replacement for the MAX4715 and MAX4716
  • ON resistance (RON)
  • VCC = +4.3V 0.21Ω
  • VCC = +3.0V 0.24Ω
  • VCC = +1.8V 0.45Ω
  • RON flatness 0.03Ω
  • Single supply operation +1.1V to +4.5V
  • Fast switching action (+3.9V Supply)
  • tON 8ns
  • tOFF 5ns
  • ESD HBM rating >4kV
  • 1.8V, CMOS logic compatible (+3V supply)
  • 5 lead SC70 packaging

アプリケーション

  • Battery powered, handheld, and portable equipment Cellular/mobile phones Pagers Laptops, notebooks, palmtops
  • Portable test and measurement
  • Medical equipment
  • Audio and video switching

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート
ISL43L110, ISL43L111 Datasheet
PDF 643 KB
カタログ
アナログIC　カタログ
PDF 5.40 MB 英語
製品変更通知
PCN11088 - Lead Frame Material Change for Assembly of the Listed Intersil SC-70 Packaged Products - Carsem, Ipoh Malaysia (CAM)
PDF 201 KB
3件

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    ご購入 / サンプル
    型名
    ISL43L110IHZ-T
    circleアクティブ
    memory
    spa
    view_in_ar
    サンプル入手可能
    		 SC70 Reel 2 サンプルを入手,
