概要

The 82P33831 Synchronization Management Unit (SMU) provides tools to manage timing references, clock sources and timing paths for IEEE 1588 and Synchronous Ethernet (SyncE) based clocks. The device supports up to three independent timing paths that control: IEEE 1588 clock synthesis; SyncE clock generation; and general purpose frequency translation. The device supports physical layer timing with Digital PLLs (DPLLs) and it supports packet based timing with Digitally Controlled Oscillators (DCOs). Input-to-input, input-to-output and output-to-output phase skew can all be precisely managed. The device outputs low-jitter clocks that can directly synchronize 40GBASE-R, 10GBASE-R and 10GBASE-W and lower-rate Ethernet interfaces; as well as CPRI/OBSAI, SONET/SDH and PDH interfaces and IEEE 1588 Time Stamp Units (TSUs).

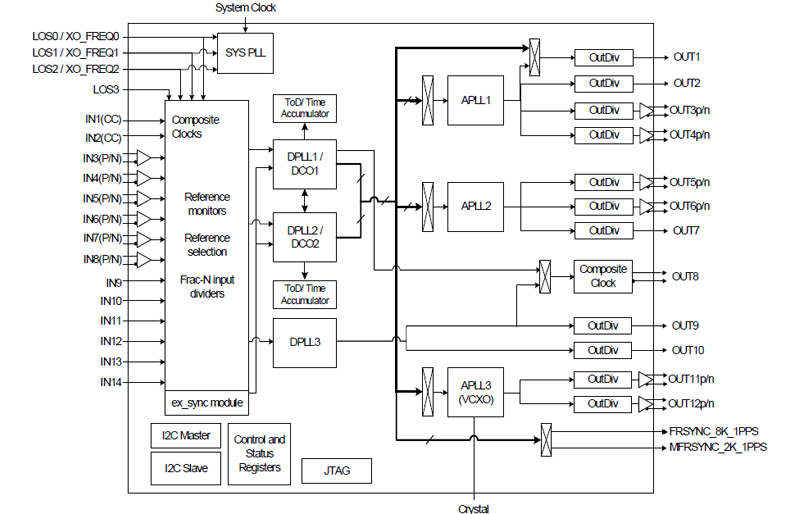

82P33831 Functional Block Diagram
82P33831 Functional Block Diagram
  • SMU allows any IEEE 1588 software, running on an external processor, to control the generation of electrical clocks, and to access and control physical layer synchronization
  • Supports Telecom Boundary Clock (T-BC) and Telecom Time Slave Clock (T-TSC) applications per G.8273.2 with physical layer frequency support to the DCOs
  • Physical layer clocks comply with ITU-T G.8262 for Synchronous Ethernet Equipment Clock (EEC), and G.813 for Synchronous Equipment Clock (SEC), and Telcordia GR-253-CORE for Stratum 3 and SONET Minimum Clock (SMC)
  • System-wide precise 1PPS (Pulse Per Second) edge alignment is supported with programmable input-to-input, input-to-output and output-to-output phase delays: sub-ns resolution
  • 24 hour time holdover is supported by DCOs with fine frequency resolution (1.7e-16)
  • Generates clocks for: 10GBASE-R, 10GBASE-W, 40GBASE-R and CPRI/OBSAI interfaces without external jitter attenuators: jitter generation <0.3 ps RMS (10 kHz to 20 MHz)
  • Generates clocks for: Ethernet, SONET/SDH and PDH interfaces: jitter generation <1 ps RMS (12 kHz to 20 MHz)
  • IEEE 1588 grand master applications are supported by locking to 1 PPS (Pulse Per Second) references from GPS or other GNSS sources
  • Eases local oscillator sourcing by supporting any of eight common TCXO/OCXO frequencies for the System Clock: 10 MHz, 12.8 MHz, 13 MHz, 19.44 MHz, 20 MHz, 24.576 MHz, 25 MHz or 30.72 MHz
  • Automatically loads configuration from an external EPROM after reset without processor intervention
  • 144 pin CABGA package

ドキュメント

設計・開発

ソフトウェア／ツール
Timing Commander
Timing Commander™は、Windows™ベースの革新的なソフトウェアプラットフォームで、システム設計を行うエンジニアは、直感的かつ柔軟なグラフィカルユーザインタフェース（GUI）により、高度なタイミングデバイスの構成、プログラミング、モニタリングが行えます。
ダウンロード
Timing Commander Installer (v1.17)
 Code Generator ルネサス
1件

ソフトウェアダウンロード
分類 タイトル 日時
ソフトウェア／ツール－ソフトウェア
Timing Commander Installer (v1.17)
ログインしてダウンロード ZIP 18.02 MB
ソフトウェア／ツール－その他
82P33x31 Timing Commander Personality
ログインしてダウンロード TCP 4.00 MB
ソフトウェア／ツール－その他
82P33x31_APLL3 Timing Commander Personality
ログインしてダウンロード TCP 1024 KB
3件
82EBP33831 Evaluation Board - top view

82EBP33831

Evaluation
詳しくはこちら

Evaluation Board for 82P33831 Synchronization Management Unit for IEEE 1588 and 10G/40G Synchronous Ethernet

The 82EBP33831 Evaluation board for IEEE 1588 and Synchronous Ethernet allows the user to connect up to eight differential ended, up to eight single ended, and up to...
主要ドキュメント:
82EBP33831 Evaluation Board User Guide
