概要

This evaluation system is a hardware and software platform for testing Renesas real-time clock (RTC) devices; the system requires only a PC for the controller and power functions. Renesas offers a large portfolio of RTC devices with features including a crystal oscillator, clock and date counters, auto switch-over to battery backup, voltage monitoring with low voltage reset, a watchdog timer, and alarms.

The evaluation system enables users to test all of these functions and to evaluate device performance criteria, such as long-term clock accuracy. Hardware options, such as battery and crystal types, can also be tested. The software sets up easily and enables the evaluation of all major RTC functions. The hardware's two-piece construction - utilizing a motherboard and a daughterboard - allows the evaluation of multiple RTC products simply by switching out small daughterboards.

Renesas real-time clock (RTC) products include a low cost set of products that strike a balance of features and performance for a wide variety of applications. Formerly, the devices in the RTC product line used EEPROM cells for registers and general-purpose memory. The new devices use battery-backed SRAM for all memory which results in a lower cost, yet very reliable, RTC device.

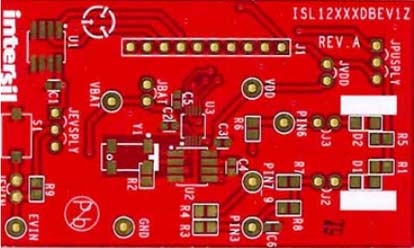

RTC USB Evaluation System Daughterboard
RTC USB Evaluation System Motherboard
RTC USB Evaluation System Daughterboard
RTC USB Evaluation System Motherboard
  • Used to evaluate all major RTC functions and device performance criteria for long-term clock accuracy
  • Features Renesas RTC products including:
    • Crystal oscillator
    • Clock and date counters
    • Auto switch-over to battery backup
    • Voltage monitoring with low voltage reset
    • Watchdog timer
    • Alarms
  • Hardware options for battery and crystal types
  • Easy to use software set up
  • Motherboard/Daughterboard configuration allows the evaluation of multiple RTCs

アプリケーション

  • Utility meters
  • HVAC equipment
  • Audio/Video components
  • Set-top boxes, televisions
  • Modems
  • Network routers, hubs, switches, bridges
  • Cellular infrastructure equipment
  • Fixed broadband wireless equipment
  • Pagers/PDAs
  • Point of Sale (POS) equipment
  • Test meters/fixtures
  • Office automation (copiers, fax)
  • Home appliances
  • Computer products
  • Other industrial, medical, automotive

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－開発ツール
Real Time Clock USB Evaluation Board User Guide
PDF 815 KB
マニュアル－開発ツール
AN1373: Low Cost RTC Family User Guide
PDF 443 KB
マニュアル－開発ツール
Real Time Clock USB Eval Board User Guide
PDF 913 KB
3件

設計・開発

ソフトウェアダウンロード
分類 タイトル 日時
PCB設計ファイル
ISL1202xMDBEV1Z Design Files
ZIP 245 KB
1件

製品選択

    Processing table
    説明
    ご購入 / サンプル
    型名
    ISL12022DBEV1Z
    circleアクティブ
    サンプル入手可能
    		 Low Power RTC with Battery-Backed SRAM and Embedded Temp Compensation ±5ppm with Auto Day Light Saving サンプルを入手,
    ISL12058DBEV1Z
    circleアクティブ
    サンプル入手可能
    		 Low Cost and Low Power I2C Bus™ Real Time Clock/Calendar Low Power and Low Cost RTC with Alarm Function サンプルを入手,
    ISL12058EVALZ
    circleアクティブ
    サンプル入手可能
    		 Low Cost and Low Power I2C Bus™ Real Time Clock/Calendar Low Power and Low Cost RTC with Alarm Function サンプルを入手,
    ISL12008DBEV1Z
    circleアクティブ
    サンプル入手可能
    		 I2C Real Time Clock with Battery Backup Low Power RTC with Battery ReSeal™ Function サンプルを入手,
    ISL1208DBEV1Z
    circleアクティブ
    サンプル入手可能
    		 I2C Real Time Clock/Calendar, Low Power RTC with Battery-Backed SRAM サンプルを入手,
    ISL12026DBEV1Z
    circleアクティブ
    サンプル入手可能
    		 Real Time Clock/Calendar with I2C Bus™ and EEPROM サンプルを入手,
    ISL12057DBEV1Z
    circleアクティブ
    サンプル入手可能
    		 Low Cost and Low Power I2C Real Time Clock/Calendar with Alarm Function and Dual IRQ Pins サンプルを入手,
    ISL12022MDBEV1Z
    circleアクティブ
    サンプル入手可能
    		 Low Power RTC with Battery-Backed SRAM, Integrated ±5ppm Temperature Compensation and Auto Day Light Saving サンプルを入手,
    ISL12020MDBEV1Z
    circleアクティブ
    サンプル入手可能
    		 Real Time Clock with Embedded Crystal, ±5ppm Accuracy サンプルを入手,
