概要

The 8V97053-EVK is designed to help the customer evaluate the 8V97053 RF Synthesizer / PLL. When the board is connected to a PC running Timing Commander software through USB, the device can be configured and programmed through a graphical interface or through register settings, to generate frequencies with best-in-class performance.

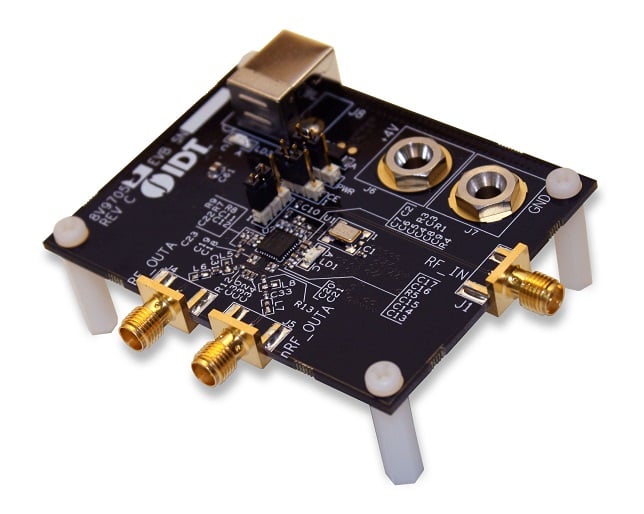

8V97053-EVK Evaluation Board
8V97053-EVK Evaluation Board (Top)
8V97053-EVK Evaluation Board
8V97053-EVK Evaluation Board (Top)
  • Board comes pre-populated with the 8V97053
  • Fully configurable through Timing Commander software
  • USB powered for portability
  • Onboard 25MHz TCXO plus alternate SMA input provide flexibility for input reference selection

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－ハードウェア
8V9705x Evaluation Board User Guide
PDF 448 KB
アプリケーションノート
Timing Commander Installation Guide
PDF 348 KB
マニュアル－ハードウェア
8V9705x EVB Collateral
ZIP 3.78 MB
回路図
8V9705x Evaluation Board Schematic
PDF 57 KB
4件

設計・開発

ソフトウェア／ツール
Timing Commander
Timing Commander™は、Windows™ベースの革新的なソフトウェアプラットフォームで、システム設計を行うエンジニアは、直感的かつ柔軟なグラフィカルユーザインタフェース（GUI）により、高度なタイミングデバイスの構成、プログラミング、モニタリングが行えます。
ダウンロード
Timing Commander Installation GuideTiming Commander Installer (v1.17)
 Code Generator ルネサス
1件

ソフトウェアダウンロード
分類 タイトル 日時
ソフトウェア／ツール－ソフトウェア
Timing Commander Installer (v1.17)
ログインしてダウンロード ZIP 18.02 MB
1件
