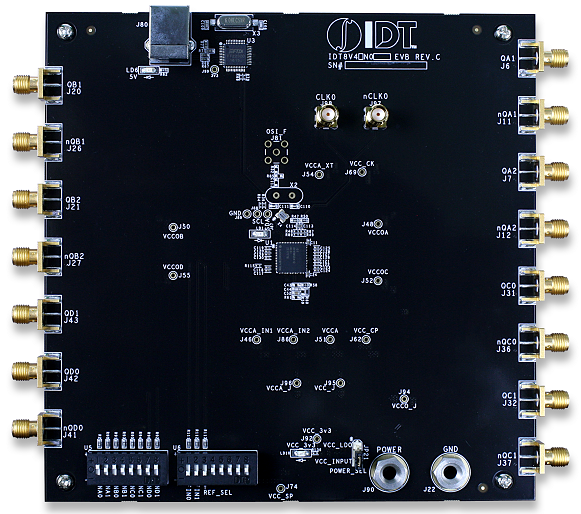

The EVK-8V49NS0412 evaluation board kit is a platform that is designed to help the customer evaluate Renesas' 8V49NS0412 and 8V49NS0312 FemtoClock® NG 12-output clock generator. When the board is connected to a PC running Timing Commander software through USB, the device can be configured and programmed through a graphical interface or through register settings, to generate frequencies with best-in-class performance.
8V49NS0312 and 8V49NS0412 are two similar devices, the only difference is the frequency selection pin for different initial frequency plan.
特長
- Terminals for input clocks
- Selected output channels were supported – QA1, QA2, QB1, QB2, QC0, QC1, QD0, and QD1
- Supports LVPECL/LVDS output style and swing programmed by a graphic user interface
- Supports external power supply from connector or on board LDO regulator
- Output frequency can be selected by external DIP switches
- Software controlled with a graphical user interface
アプリケーション
設計・開発
ソフトウェア／ツール
ソフトウェア／ツール
| Software title
|
Software type
|
会社名
|
|---|---|---|
| Timing Commander Timing Commander™は、Windows™ベースの革新的なソフトウェアプラットフォームで、システム設計を行うエンジニアは、直感的かつ柔軟なグラフィカルユーザインタフェース（GUI）により、高度なタイミングデバイスの構成、プログラミング、モニタリングが行えます。
|
Code Generator | ルネサス |
1件
|
||
Processing table
