概要

The EVK-8V97051A is designed to help the customer evaluate the 8V97051A RF Synthesizer / PLL. When the board is connected to a PC running Renesas Timing Commander software through USB, the device can be configured and programmed through a graphical interface or through register settings, to generate frequencies with best-in-class performance.

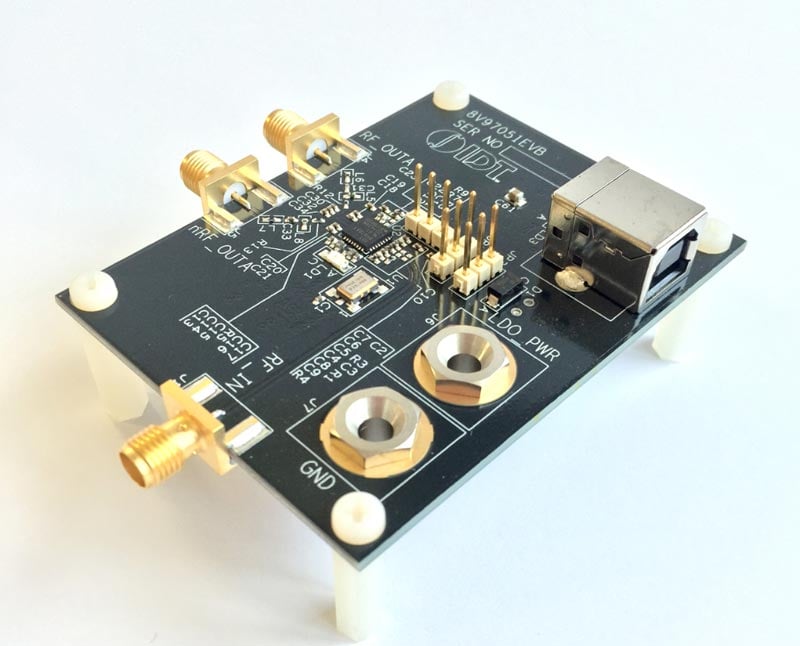

8V97051 Evaluation Board

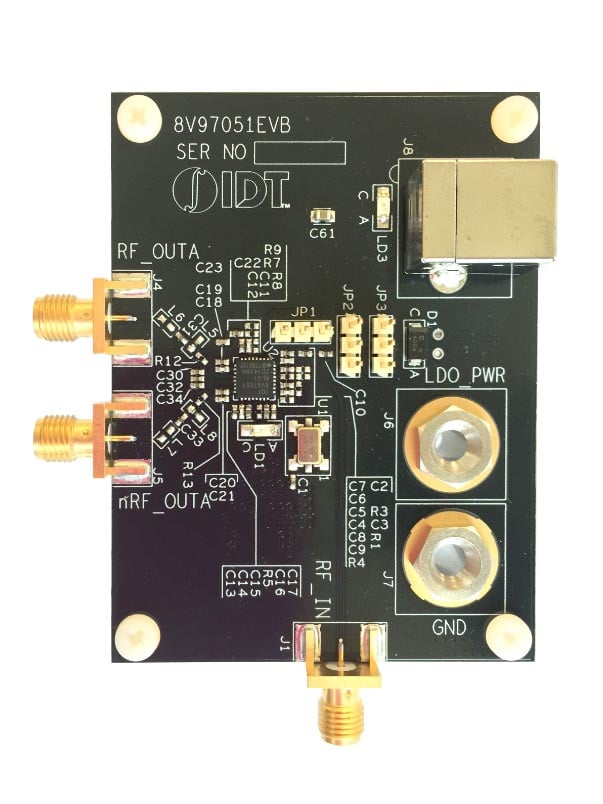

8V97051 - Evaluation Board (Top)
8V97051 Evaluation Board
8V97051 - Evaluation Board (Top)
  • Board comes pre-populated with the 8V97051A
  • Fully configurable through Renesas Timing Commander software
  • USB powered for portability
  • Onboard 25MHz TCXO plus alternate SMA input provide flexibility for input reference selection

ドキュメント

= ピックアップ
分類 タイトル 日時
ガイド
8V97051 EVB User Guide
PDF 332 KB
アプリケーションノート
Timing Commander Installation Guide
PDF 348 KB
マニュアル－ハードウェア
8V9705x EVB Collateral
ZIP 3.78 MB
回路図
8V9705x Evaluation Board Schematic
PDF 57 KB
ガイド
8V97051 EVB User Guide Shortform
PDF 50 KB
5件

設計・開発

ソフトウェア／ツール
Timing Commander
Timing Commander™は、Windows™ベースの革新的なソフトウェアプラットフォームで、システム設計を行うエンジニアは、直感的かつ柔軟なグラフィカルユーザインタフェース（GUI）により、高度なタイミングデバイスの構成、プログラミング、モニタリングが行えます。
ダウンロード
Timing Commander Installation GuideTiming Commander Installer (v1.17)
 Code Generator ルネサス
1件

ソフトウェアダウンロード
分類 タイトル 日時
ソフトウェア／ツール－ソフトウェア
Timing Commander Installer (v1.17)
ログインしてダウンロード ZIP 18.02 MB
1件

製品選択

    Processing table
    ご購入 / サンプル
    型名
    EVK-8V97051A
