Evaluation Board for 5L2503 MicroClock
This is the evaluation board for the Renesas 5L2503 MicroClock programmable clock generator. With crystal integration, the 5L2503 only requires a small space on the...
概要
説明

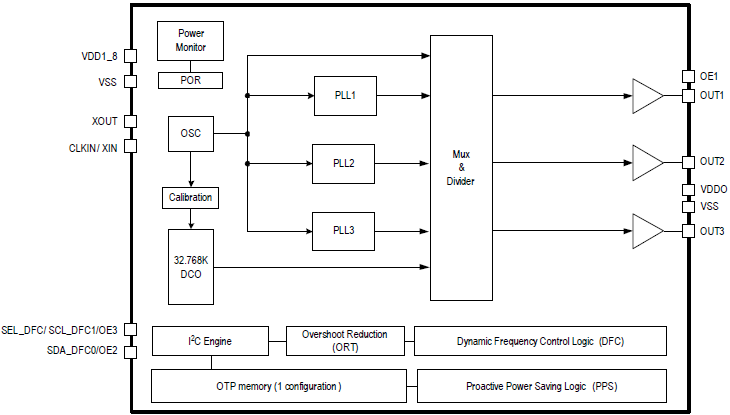

The 5L2503 MicroClock™ is a programmable clock generator intended for low-power, consumer, wearable, and smart devices. The 5L2503 device is a 3 PLL& architecture design. Each PLL is individually programmable, allowing for up to 3 unique frequency outputs. The 5L2503 has built-in unique features such as Proactive Power Saving (PPS) to deliver better system-level power management.
An internal OTP memory allows the user to store the configuration in the device without programming after power-up and then the device can be reprogrammed again through the I²C interface. The 5L2503 has programmable VCO and PLL source selection allowing the user to do power-performance optimization based on the application requirements. A low-power 32.768kHz clock is supported with only less than 2μA current consumption for system RTC reference clock needs.
特長
- Configurable OE pin function as OE, PPS, or DFC control function
- Proactive Power Saving (PPS) features save power during the end device power-down mode
- Dynamic Frequency Control (DFC) feature allows programming up to 4 different frequencies that switch dynamically
- Spread spectrum clock support to lower system EMI
- I²C Interface
- Supported by the Timing Commander™ software tool
製品比較
アプリケーション
ドキュメント
ピックアップ
ログイン後、ご登録が可能となります。
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日時 |
| データシート | PDF 570 KB | |
| アプリケーションノート | PDF 187 KB | |
| アプリケーションノート | PDF 348 KB | |
| 概要 | PDF 1023 KB | |
| アプリケーションノート | PDF 307 KB | |
| アプリケーションノート | PDF 495 KB | |
| アプリケーションノート | PDF 565 KB | |
| アプリケーションノート | PDF 438 KB | |
8件
|
||
設計・開発
ソフトウェア／ツール
ソフトウェア／ツール
| Software title
|
Software type
|
会社名
|
|---|---|---|
| Timing Commander Timing Commander™は、Windows™ベースの革新的なソフトウェアプラットフォームで、システム設計を行うエンジニアは、直感的かつ柔軟なグラフィカルユーザインタフェース（GUI）により、高度なタイミングデバイスの構成、プログラミング、モニタリングが行えます。
|
Code Generator | ルネサス |
1件
|
||
ボード＆キット
5L2503 MicroClock Development Kit
The 5L2503 evaluation board is made for configuration and signal integrity verification. With USB programming board, Renesas Timing CommanderTM GUI can be used to...
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
本デバイスは、ルネサス事業所でのプログラム書き込みが可能です。カスタムプログラムユーティリティをお試しください。
Processing table
| VFQFPN | 12 | I | Yes | Cut Tape | 1 | サンプルを入手, | ||
| VFQFPN | 12 | I | Yes | Reel | 1 | 1.63 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
ビデオ&トレーニング
MicroClock™ Clock Generator Family Overview
A brief overview of the MicroClock™ family of tiny, flexible clock generators designed for wearable, hearable, and IoT applications.
