5P49V5908

概要

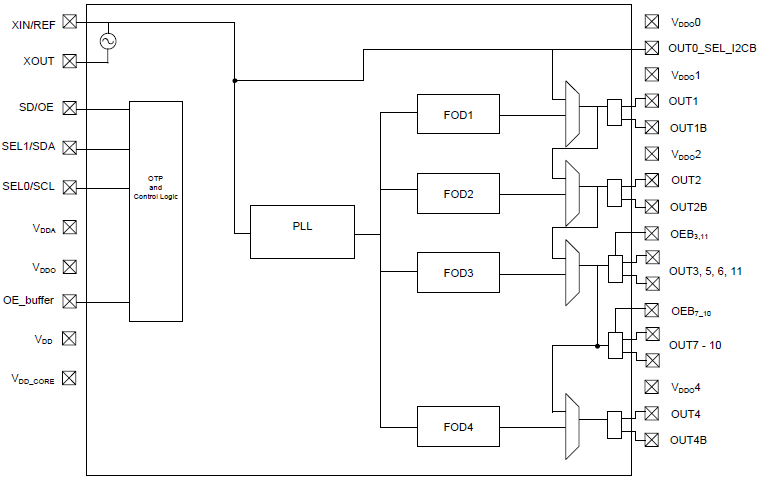

The 5P49V5908 is a programmable clock generator intended for high-performance consumer, networking, industrial, computing, and data communications applications. Configurations may be stored in on-chip One-Time Programmable (OTP) memory or changed using the I²C interface. This is Renesas' fifth generation of programmable clock technology (VersaClock^® 5). The frequencies are generated from a single reference clock or crystal.

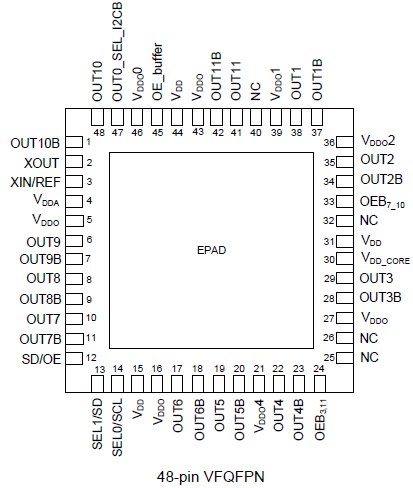

Two select pins allow up to four different configurations to be programmed and accessible using processor GPIOs or bootstrapping. The different selections may be used for different operating modes (full function, partial function, and partial power down), regional standards (US, Japan, Europe), or system production margin testing. The device may be configured to use one of two I²C addresses to allow multiple devices to be used in a system. The device is packaged in a 48-pin 6mm x 6mm VFQFPN (NDG48), with an industrial operating temperature of -40 °C to +85 °C.

Generates up to four independent output frequencies with a total of 11 differential outputs and one reference LVCMOS output
Supports multiple differential output I/O standards:
- Three universal output pairs with each configurable as one differential output pair (LVDS, LVPECL, or regular HCSL) or two LVCMOS outputs. The frequency of each output pair can be individually programmed
- Eight copies of Low Power HCSL (LP-HCSL) outputs
Meets PCIe^® Gen 1/2/3, USB 3.0, 1/10 GbE clock requirements
<0.7 ps RMS typical phase jitter on outputs
Four fractional output dividers (FODs)
Independent spread spectrum capability from each fractional output divider
Stores 4 different configurations in OTP non-volatile memory
Input frequency ranges up to 200MHz
Output frequency ranges up to 350MHz
Programmable loop bandwidth and crystal load capacitance
1.8V/2.5V/3.3V core and output voltages
Supported by the Timing Commander™ software tool

Ethernet switch/router
PCI Express 1.0/2.0/3.0
Broadcast video/audio timing
Multi-function printer
Processor and FPGA clocking
Any-frequency clock conversion
MSAN/DSLAM/PON
Fiber Channel, SAN
Telecom line cards
1GbE and 10GbE

ドキュメント

設計・開発

ソフトウェア／ツール

Software title	Software type	会社名

Timing Commander Timing Commander™は、Windows™ベースの革新的なソフトウェアプラットフォームで、システム設計を行うエンジニアは、直感的かつ柔軟なグラフィカルユーザインタフェース（GUI）により、高度なタイミングデバイスの構成、プログラミング、モニタリングが行えます。ダウンロード Timing Commander Installation Guide Timing Commander Installer (v1.18.1)VersaClock 5 Timing Commander Users Guide	Code Generator	ルネサス
1件

ソフトウェアダウンロード


分類	タイトル	日時
ソフトウェア／ツール－ソフトウェア	Timing Commander Installer (v1.18.1) ログインしてダウンロード ZIP 18.02 MB	2024年12月2日
ソフトウェア／ツール－その他	VersaClock 5 Timing Commander Personality File ログインしてダウンロード TCP 2.94 MB	2015年10月6日
2件

EVKVC5-5908

Evaluation

詳しくはこちら

Evaluation Board for 5P49V5908 VersaClock 5

This is the evaluation board for the Renesas 5P49V5908 programmable clock generator. With RMS phase jitter less than 0.75 picoseconds over the full 12kHz to 20MHz...

主要ドキュメント:

VersaClock 5 5P49V5907/5908 Evaluation Boards User Guide

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる

製品選択

Processing table

	Pkg. Type	Lead Count (#)	Temp. Grade	Pb (Lead) Free	Carrier Type	Price (USD) \| 1ku	ご購入 / サンプル
(4) Obsolete / NRND / LTB	VFQFPN	最大値最小値	I	Yes	Reel Tray	最大値参考価格は、1,000個を基準としています。また、予告なく変更される場合があります。最小値参考価格は、1,000個を基準としています。また、予告なく変更される場合があります。	サンプルを入手購入/見積
型名	Logical Operator		Logical Operator	Logical Operator	Logical Operator		Logical Operator
5P49V5908A000NDGI circle新規採用非推奨品 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model サンプル入手可能	VFQFPN	48	I	Yes	Tray		サンプルを入手, 購入/見積
5P49V5908A000NDGI8 circle新規採用非推奨品 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	VFQFPN	48	I	Yes	Reel		購入/見積
5P49V5908B000NDGI circle新規採用非推奨品 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model サンプル入手可能今すぐ購入する	VFQFPN	48	I	Yes	Tray	9.741	サンプルを入手, 購入/見積
5P49V5908B000NDGI8 circle新規採用非推奨品 memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	VFQFPN	48	I	Yes	Reel		購入/見積

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product

ビデオ&トレーニング

Programmable Clock Generator with PCIe Timing Outputs by IDT

This video provides an overview of IDT's programmable clock generators 5P49V5907 and 5P49V5908 featuring the fifth generation of programmable clock technology (VersaClock® 5). With additional outputs supporting PCI Express® timing, these devices present a blend of low power, flexibility, and high performance suitable for a wide range of applications including performance consumer, networking, industrial, computing, and data communications. For more information, visit the Programmable Clocks page.
