概要

The HXT44420 is a quad, low-power, linear PAM4 Directly Modulated Laser (DML) driver for LR applications. It supports signaling rates up to 28GBuad or 56Gbps PAM4. In conjunction with an individual DML, the HXT44420 handles the complete electrical-to-optical conversion, including CML input with equalization, laser bias and modulations, laser power control, and supervision.

The HXT44420 also integrates several functions required for Automatic Power Control (APC), as well as internal and module temperature measurements and reporting. With an additional RSSI input, one can directly measure the module receive optical power and report it.

HXT44420 is designed as a directly DC-coupled die used in a Transmitter Optical Sub-Assembly (TOSA) application. Thus, one can reduce the number of discrete components for better RF performance, and cost-effective and compact assemblies.

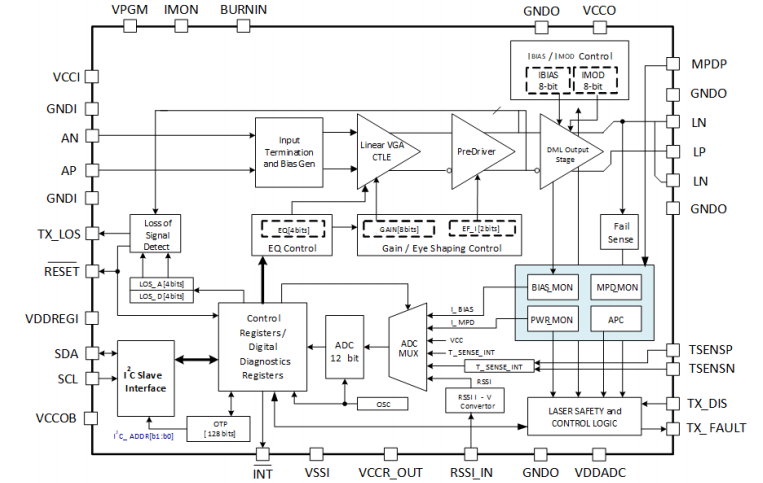

HXT44420 - Block Diagram
HXT44420 - Block Diagram
  • 290mW power dissipation per channel
  • Supports up to: IMOD = 60mAPP and IBIAS = 60mA with VCC = 3.3V for lower power
  • Integrated 12-bit ADC with 6-channel analog multiplexor front-end
  • Programmable 8-bit laser modulation and bias current control
  • Integrated bias monitor, transmit and receive power monitor capability
  • Automatic power control (APC)
  • Programmable input LOS and Squelch function with disable, transmit disable, and transmit fault indication
  • Programmable input CTLE
  • Integrated temperature sensor and input for external module temperature sensor
  • Interrupts with user-selectable mask control
  • Input polarity inversion
  • Laser disable for IMOD and IBIAS
  • Integrated OTP for calibration
  • 2-wire interface control

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート－簡略版
HXT44420 Short-Form Datasheet
PDF 145 KB
データシート
HXT44420 Datasheet
ログインしてダウンロード PDF 1.43 MB
2件

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Temp. Grade
    Carrier Type
    Moisture Sensitivity Level (MSL)
    ご購入 / サンプル
    型名
    HXT44420-DNG
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    		 WAFER E WFP 0 サンプルを入手,
    HXT44420-EVB
    fast_forwardプレビュー
    memory
    view_in_ar
    サンプル入手可能
    		 BOARD C Box 0 サンプルを入手,
