概要

The IMX3102 is a 2:1 I³C basic bus multiplexer switch with an integrated temperature sensor for I³C and I²C applications. It is designed to be used for various motherboard applications.

There are two master ports (Master port 0 and Master port 1) and one slave port. Any one of those two Master ports can be selected as Active Master which has the control of the slave port as well as the IMX3102 itself.

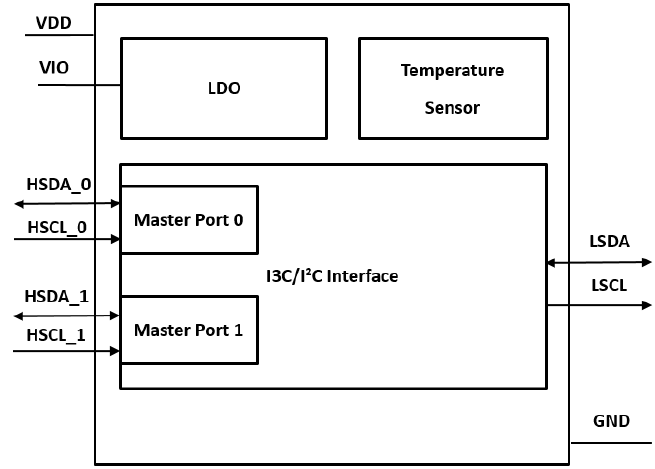

IMX3102 - Block Diagram
IMX3102 - Block Diagram
  • 2:1 bus multiplexer
  • Two-wire programmable I²C or I³C bus serial interface
  • Single device load on the host bus
  • Up to 12.5MHz transfer rate
  • Single 1.8V power supply input
  • 1.0V VLDO output at VIO pin
  • Supports 1.0V, 1.1V, and 1.2V Push-Pull IO levels
  • Supports 1.0V, 1.1V, 1.2V, 1.8V, 2.5V, and 3.3V open-drain IO levels
  • Integrated temperature sensor; 0.5 °C accuracy with 0.25 °C resolution
  • Packet Error Check (PEC) function, Parity Error Check function
  • Bus reset function
  • In-band interrupt (IBI)
  • Programmable I²C, I³C bus addressing scheme
  • 9-contact thermally enhanced DFN package
  • Temperature: Industrial range of -40 °C to 85 °C

アプリケーション

  • Server boards
  • PCs/Notebook motherboards
  • Embedded automation

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート－簡略版
IMX3102 Short-Form Datasheet
PDF 31 KB
製品変更通知
PCN# : 230025 Change in marking format on select DFN-8 package
PDF 437 KB
製品変更通知
PCN# : 220024 Add Carsem, Malaysia as Alternate Wafer Test, Final Test and Backend Location
PDF 396 KB
概要
Memory Multiplexer Family Overview
PDF 807 KB
4件

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Carrier Type
    MOQ
    Moisture Sensitivity Level (MSL)
    ご購入 / サンプル
    型名
    IMX3102-Y1B000NCG8
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    		 DFN Reel 2500 1 サンプルを入手,
