概要
説明

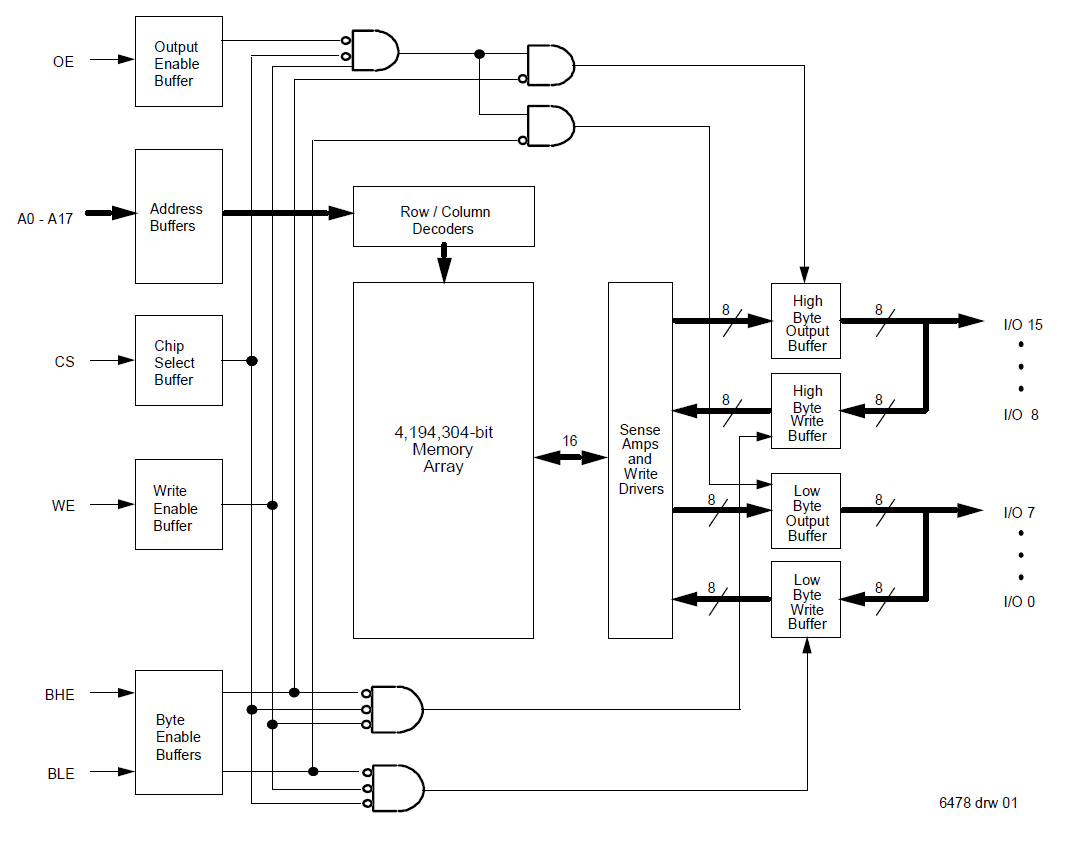

The 71V416 3.3V CMOS SRAM is organized as 256K x 16. All bidirectional inputs and outputs of the 71V416 are LVTTL-compatible and operation is from a single 3.3V supply. Fully static asynchronous circuitry is used, requiring no clocks or refresh for operation.
特長
- JEDEC Center Power / GND pinout for reduced noise.
- Equal access and cycle times
- – Commercial and Industrial: 10/12/15ns
- One Chip Select plus one Output Enable pin
- Bidirectional data inputs and outputs directly
- LVTTL-compatible
- Low power consumption via chip deselect
- Upper and Lower Byte Enable Pins
- Single 3.3V power supply
- Available in 44-pin, 400 mil plastic SOJ, 44-pin, 400 mil TSOP Type II, and 48-pin BGA packages
製品比較
アプリケーション
設計・開発
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
Pkg. Type |
Lead Count (#) |
Temp. Grade |
Pb (Lead) Free |
Carrier Type |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
ご購入 / サンプル |
|
|---|---|---|---|---|---|---|---|---|
| 型名 | ||||||||
| CABGA | 48 | C | Yes | Tray | 3 | サンプルを入手, | ||
| TSOP | 44 | C | Yes | Tray | 3 | 5.637 | サンプルを入手, | |
| TSOP | 44 | C | Yes | Reel | 3 | 6.715 | ||
| TSOP | 44 | I | Yes | Tray | 3 | 7.849 | サンプルを入手, | |
| CABGA | 48 | C | Yes | Reel | 3 | |||
| CABGA | 48 | I | Yes | Tray | 3 | 7.496 | サンプルを入手, | |
| CABGA | 48 | I | Yes | Reel | 3 | |||
| CABGA | 48 | I | No | Tray | 4 | 7.294 | サンプルを入手, | |
| TSOP | 44 | C | Yes | Tray | 3 | 6.688 | サンプルを入手, | |
| TSOP | 44 | I | Yes | Tray | 3 | 7.422 | サンプルを入手, | |
| TSOP | 44 | I | Yes | Reel | 3 | |||
| CABGA | 48 | C | Yes | Tray | 3 | 6.785 | サンプルを入手, | |
| CABGA | 48 | I | Yes | Tray | 3 | 7.4 | サンプルを入手, | |
| TSOP | 44 | C | Yes | Reel | 3 | 9.01 | ||
| TSOP | 44 | I | Yes | Tray | 3 | 7.422 | サンプルを入手, | |
| TSOP | 44 | I | Yes | Reel | 3 | |||
| CABGA | 48 | C | Yes | Tray | 3 | 6.96 | サンプルを入手, | |
| CABGA | 48 | C | Yes | Reel | 3 | |||
| TSOP | 44 | C | Yes | Tray | 3 | サンプルを入手, | ||
| TSOP | 44 | C | Yes | Reel | 3 | 9.01 | ||
| TSOP | 44 | I | Yes | Tray | 3 | 6.793 | サンプルを入手, | |
| TSOP | 44 | I | Yes | Reel | 3 | |||
| CABGA | 48 | C | Yes | Tray | 3 | サンプルを入手, | ||
| TSOP | 44 | C | Yes | Tray | 3 | 6.496 | サンプルを入手, | |
| TSOP | 44 | C | Yes | Reel | 3 | 6.782 | ||
| TSOP | 44 | I | Yes | Tray | 3 | 6.825 | サンプルを入手, | |
| TSOP | 44 | I | Yes | Reel | 3 | 9.44 | ||
| TSOP | 44 | C | Yes | Tray | 3 | 9.26 | サンプルを入手, | |
| TSOP | 44 | C | Yes | Reel | 3 | |||
| TSOP | 44 | I | Yes | Tray | 3 | 6.793 | サンプルを入手, | |
| TSOP | 44 | I | Yes | Reel | 3 | 9.44 |
