概要

The BFG motor control reference design and software solution address a wide range of embedded motor-driven applications. The motor control reference design for Renesas RX MCUs is integrated with the RX motor control development kits for a total project-ready solution.

Renesas RX Ready
Renesas RX Ready

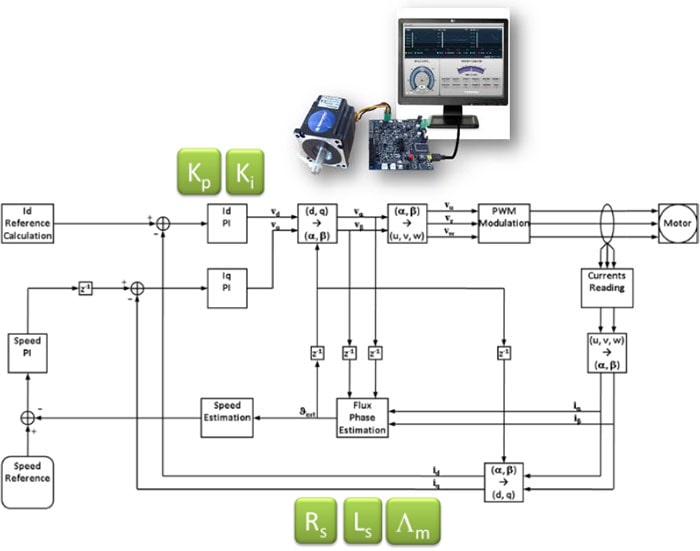

BFG Motor Control Block Diagram
  • State-of-the-Art 3-phase BLDC/PMSM field oriented control
  • Sensorless 3-shunt method
  • Auto-tuning capabilities including motor parameter identification
  • System parameters enabled to be optimized during system run
  • Supports low voltage and external high voltage Inverters
  • Supported on toolchains including e2 studio

アプリケーション

  • All 3-phase motor driven applications for:
    • Smart appliances
    • Smart homes
    • Smart buildings
    • Industrial control

ソフトウェア

ソフトウェア／ツールページ
統合開発環境 e² studio RXファミリ向け情報
Eclipseベース ルネサス統合開発環境
IDE and Coding Tool ルネサス
1件

ドキュメント

= ピックアップ
分類 タイトル 日時
製品概要
BFG Motor Control Solution Brief for RX MCUs
PDF 297 KB
