概要

The RAA223183 is an off-line Flyback regulator with a 1000V integrated MOSFET, designed for high-reliability application of single-phase and 3-phase smart meter power supplies and other generally isolated power supplies. The RAA223183 can deliver up to 7W power from the single-phase and 11W from 3-phase universal inputs.

RAA223183 - Typical Flyback Circuit

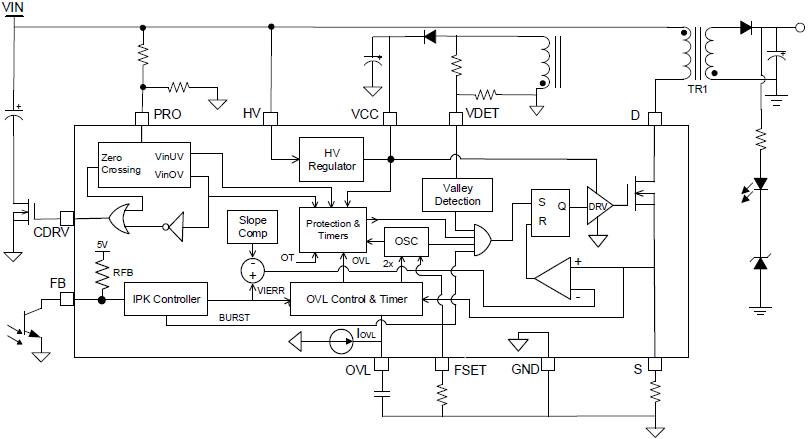

RAA223183 - Block Diagram
RAA223183 - Typical Flyback Circuit
RAA223183 - Block Diagram
  • Flyback regulator with 1000V 9Ω MOSFET
  • Single 400V bulk capacitor for single-phase input up to 460VAC
  • Frequency doubling for heavy load operation (up to 15W in single-phase and 21W and above in 3-phase), with programmable duration (maximum time depends on thermal capability)
  • Valley switching to reduce switching losses
  • Programmable constant frequency PWM operation
  • Burst mode operation at light load
  • Protection features: Short-circuit protection (SCP), overload protection (OLP), input undervoltage lockout (VinUV), Input OVP, VCC overvoltage protection (VccOV), VCC undervoltage lockout (VccUV) and over-temperature protection (OTP).
  • 4KV surge compliance per IEC 61000-4-5 with cap-saving operation

アプリケーション

  • Smart meter
  • Large appliances
  • Industry control

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート
RAA223183 Datasheet
PDF 2.45 MB
アプリケーションノート
AN1681: Grounding Techniques
PDF 509 KB
アプリケーションノート
AN1684: Nonideality of Ground
PDF 397 KB
3件

設計・開発

RTKA223183DE0010BU Flyback Regulator Evaluation Board - Top

RTKA223183DE0010BU

Evaluation
詳しくはこちら

1000V Off-Line Flyback Regulator Evaluation Board

The RTKA223183DE0010BU dual output 6W universal input flyback evaluation board featuring the RAA223183 1000V regulator is used to evaluate a low-cost, high-performance...

主要ドキュメント:
RTKA223183DE0010BU Evaluation Board Manual

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Carrier Type
    MOQ
    Moisture Sensitivity Level (MSL)
    ご購入 / サンプル
    型名
    RAA2231834GSP#HA0
    circleアクティブ
    memory
    spa
    view_in_ar
    サンプル入手可能
    今すぐ購入する
    		SOICN Reel 2500 3 サンプルを入手,
