概要

RAJ240055/RAJ240057は、MCUとアナログ・フロントエンドデバイスを1パッケージ化したリチウムイオン・バッテリ残量管理IC(FGIC)です。 複数の低消費電力モードを持ち、超低消費電力動作で高いパフォーマンスを実現できるルネサスRL78 CPUコアと、様々なバッテリ保護および管理機能を内蔵しています。RAJ240055/RAJ240057は、制御ファームウェアを内蔵フラッシュメモリに格納し、内蔵されたアナログ回路およびデジタル回路を制御して、電池の電圧／電流／温度測定、残量推定、過電流／電圧／温度保護などの電池管理動作を実行することができます。

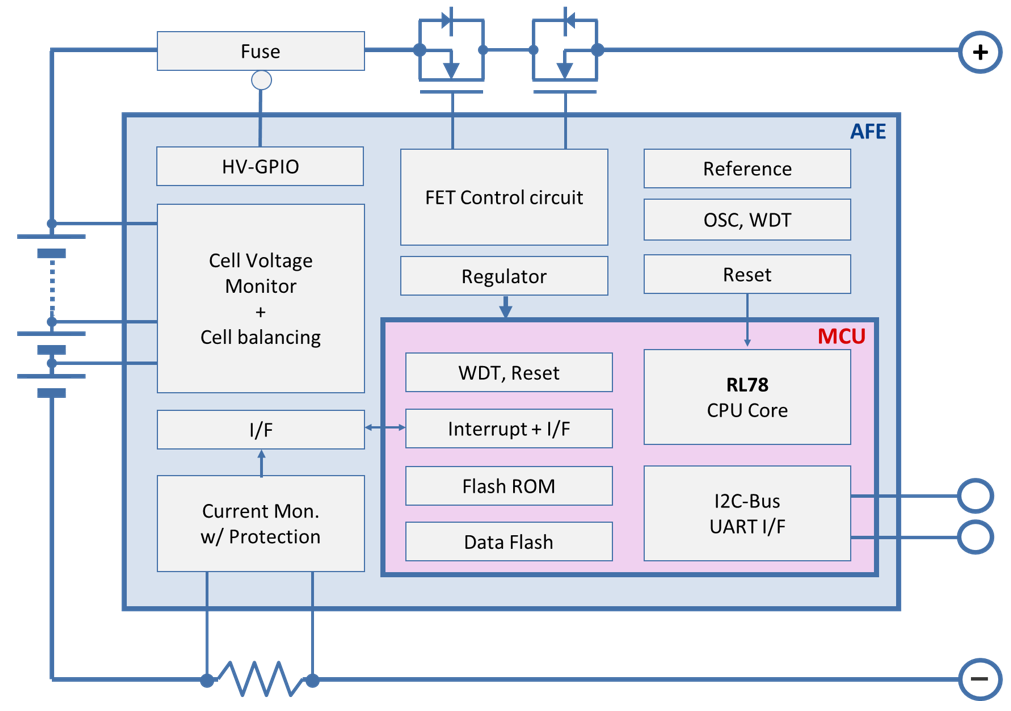

RAJ240055DNP, RAJ240057 Functional Diagram
RAJ240055DNP, RAJ240057 Functional Diagram
  • Fully integrated battery management solution with battery capacity measurement and programmable protection capability.
  • Supports up to 4 Li-ion or Li-Polymer battery cells in series.
  • Supports various self-diagnosis functions for functional safety.
  • Integrated with Renesas Ultra Low Power RL78 CPU core for multi-function process.
  • Memory
    Code flash memory: 64 kB (RAJ240055) / 128 kB (RAJ240057)
    Data flash memory (up to 100,000 erase/write cycles): 4 kB
    SRAM: 4 kB (RAJ240055) / 7 kB (RAJ240057)
  • Clock generator
    High speed on-chip oscillator: up to 32 MHz
    Low speed on-chip oscillator: 15 kHz
    AFE high speed on-chip oscillator: 4.194 MHz
    AFE low speed on-chip oscillator: 131.072 kHz
  • General Purpose I/O Ports
    Total: 12 pins
    CMOS input/output: 6, CMOS input: 1
    N-ch open drain Input/output [6 V tolerance]: 3
    High voltage input [30 V tolerance]: 1
    High voltage input/output [VCC tolerance]: 1
  • Serial interface
    CSI (SPI): 1 channel
    UART: 2 channels
    Simplified I2C: 1 channel
    I2C: 1 channel
  • Timer
    MCU 16-bit timer: 6 channels
    MCU 12-bit interval timer: 1 channel
    AFE timer: 2 channels
    • AFE timer A: setting range: 125 ms to 64 s
    • AFE timer B: setting range：61 us to 2 s
  • Embedded A/D converter
    AFE 15-bit resolution sigma-delta A/D converter
    • Automatic measurement mode
    • Continuous measurement mode
  • Current integrating circuit
    18-bit resolution sigma-delta A/D converter
  • Impedance measurement circuit
    Simultaneous measurement of battery voltage and current
  • Over current detection circuit
    Short circuit current detection: 2 channels
    Charge overcurrent detection
    Discharge overcurrent detection
    Charge wakeup current detection
    Discharge wakeup current detection
    DBPT current detection
  • Series regulator
    2.0 V or 3.3 V output can be selected (> 20 mA)
  • Charge and Discharge MOSFET control
    Supports High-side Nch MOSFET drive (built-in charge pump circuit)
  • Ultra Low Power consumption
    Power down mode: 1 uA
    Sleep mode1 current: 20 uA (DFET and CFET off)
    Sleep mode2 current: 40 uA (DFET and CFET on)
    In Sleep mode, enable H/W protection function
  • Additional features
    Internal Cell Balancing Circuit (>10 mA)
    Internal Watchdog Timer (MCU)
    MCU Runaway Detection Circuit (AFE)
    3 Thermistor Sensor Ports with On-chip Pull-up Resistors
    Random cell connection tolerant
  • Voltage and temperature condition
    Power supply voltage: VCC = 2.2 to 25.0 V
    Operating ambient temperature TA = -40 to +85°C
  • Package Information
    32 pin plastic mold QFN
    ([Body] 4.0 mm x 4.0 mm, 0.4 mm pitch)
