概要

The ISL62386 controller generates supply voltages for battery-powered systems. The ISL62386 includes two pulse-width modulation (PWM) controllers, adjustable from 0. 6V to 5. 5V, and two linear regulators, LDO5 and LDO3, that generate a fixed 5V output and a fixed 3. 3V output respectively. Each can deliver up to 100mA. The Channel 2 switching regulator will automatically take over the LDO5 load when programmed to 5V output. This provides a large power saving and boosts efficiency. The ISL62386 includes on-board power-up sequencing, one power-good (PGOOD) output, digital soft-start, and an internal soft-stop output discharge that prevents negative voltages on shutdown. The patented R3 PWM control scheme provides a low jitter system with fast response to load transients. Light-load efficiency is improved with period-stretching discontinuous conduction mode (DCM) operation. To eliminate noise in audio frequency applications, an ultrasonic DCM mode is included, which limits the minimum switching frequency to approximately 28kHz. The ISL62386 is available in a 32 Ld 5mm x 5mm TQFN package, and can operate over the extended temperature range (-10 °C to +100 °C).

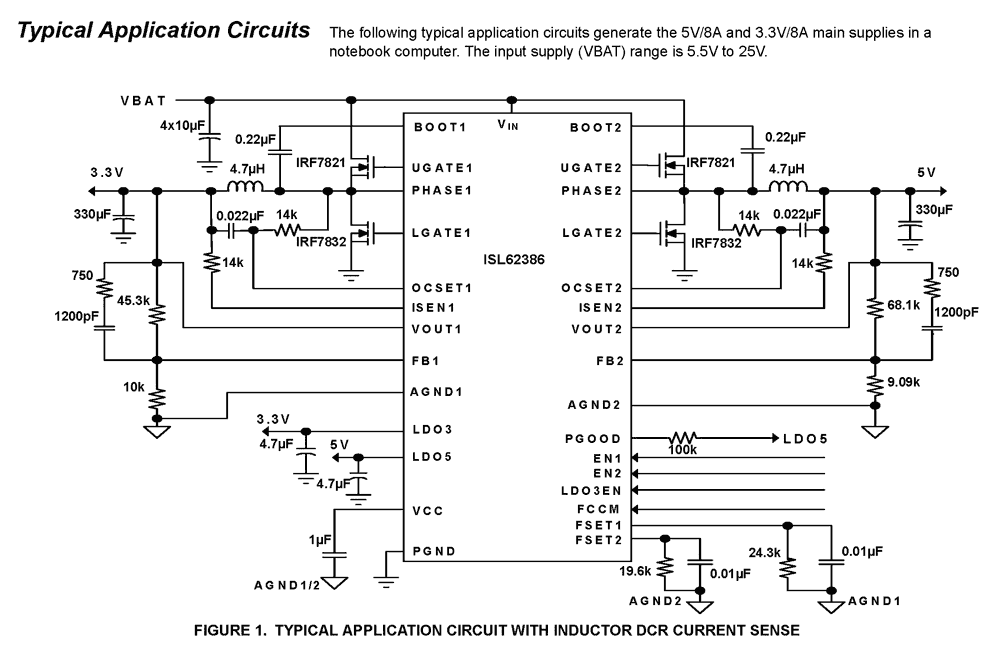

ISL62386 Functional Diagram
ISL62386 Functional Diagram
  • High Performance R3 Technology
  • Fast Transient Response
  • ±1% Output Voltage Accuracy: -10 °C to +100 °C
  • Two Fully Programmable Switch-Mode Power Supplies with Independent Operation
  • Programmable Switching Frequency
  • Integrated MOSFET Drivers and Bootstrap Diode
  • Fixed +3.3V LDO Output with Enable Control
  • Fixed +5V LDO with Automatic Switchover to SMPS2
  • Internal Soft-Start and Soft-Stop Output Discharge
  • Wide Input Voltage Range: +5.5V to +25V
  • Full and Ultrasonic Pulse-Skipping Mode
  • Power-Good Indicator
  • Overvoltage, Undervoltage and Overcurrent Protection
  • Thermal Monitor and Protection
  • Pb-Free (RoHS Compliant)

アプリケーション

  • Notebook and Sub-Notebook Computers
  • PDAs and Mobile Communication Devices
  • 3-Cell and 4-Cell Li+ Battery-Powered Devices
  • General Purpose Switching Buck Regulators

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート
ISL62386 Datasheet
PDF 946 KB
製品変更通知
PCN21016 - Correction of Moisture Sensitivity Level and Alternate bond wire material of the listed Renesas DFN, QFN, TDFN, TQFN packaged products
PDF 202 KB
製品変更通知
PCN20029A - Alternate bond wire material and assembly facility of the listed Renesas QFN packaged products
PDF 326 KB
ホワイトペーパー
How Green is Your Cloud?
PDF 295 KB
製品変更通知
PCN15046 - Wafer Fabrication Site Change for Listed Intersil Products - Global Foundry P6 Process transfer to Palm Bay - Phase II
PDF 398 KB
製品変更通知
PCN10055 - Alternate Bond Wire Material for Assembly of the Listed Intersil DFN/QFN Packaged Products - STATS ChipPAC Malaysia
PDF 248 KB
アプリケーションノート
AN1681: Grounding Techniques
PDF 509 KB
アプリケーションノート
AN1684: Nonideality of Ground
PDF 397 KB
8件

設計・開発

ISL62386HI/LOEVAL1Z Power Supply Controller Eval Boards

ISL62386HIEVAL1Z

Evaluation
詳しくはこちら

High-Efficiency, Quad Output System Power Supply Controller Evaluation Board

The ISL62386HIEVAL1Z evaluation board is used to demonstrate the performance of the ISL62386 quad-output voltage controller. The ISL62386 includes two pulse-width...

主要ドキュメント:
ISL62386xxEVAL1Z User Guide
ISL62386HI/LOEVAL1Z Power Supply Controller Eval Boards

ISL62386LOEVAL1Z

Evaluation
詳しくはこちら

High-Efficiency, Quad Output System Power Supply Controller Evaluation Board

The ISL62386LOEVAL1Z evaluation board is used to demonstrate the performance of the ISL62386 quad-output voltage controller. The ISL62386 includes two pulse-width...

主要ドキュメント:
ISL62386xxEVAL1Z User Guide
