概要

The RTKA212832DR0000BU provides a simple platform to demonstrate the performance of RAA212832, a synchronous buck regulator with 2 LDO outputs. The evaluation board can support a wide input voltage range of 14V to 72V. The buck output is 12V capable of 500mA. The buck output is used as the input for the 5V 100mA and 3.3V 50mA LDO outputs. The buck output can also be set to 6V to further reduce power dissipation on the LDO rails.

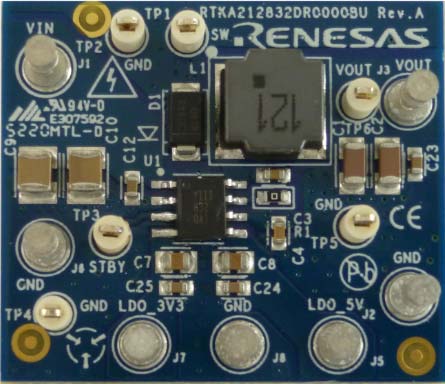

RAA212832 Demonstration Board
RAA212832 Demonstration Board
  • Buck Converter:
    • 4.5V to 72V input voltage
    • Fixed output voltage 12V
    • 500mA output load capability
    • 0.6Ω high-side MOSEFT rDS(ON)
    • Fixed switching frequency 350kHz operation
    • 6V standby function by STBY pin setting
    • High-side OCP, UVP, UVLO, OTP fault protection
  • 5V LDO Regulator:
    • 6V to 12V input voltage
    • Fixed output voltage 5V
    • 100mA output load capability
    • Current limit foldback function
  • 3.3V LDO Regulator:
    • 6V to 12V input voltage
    • Fixed output voltage 3.3V
    • 50mA output load capability
    • Current limit foldback function

アプリケーション

  • Electric-bike power management
  • Motor driver control board power supply

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－開発ツール
RTKA212832DR0000BU Demonstration Board Manual
PDF 3.78 MB
データシート
RAA212832 Datasheet
PDF 3.29 MB
2件

設計・開発

ソフトウェアダウンロード
分類 タイトル 日時
PCB設計ファイル
RTKA212832DR0000BU Design Files
ZIP 267 KB
1件
