概要

The ISL8240MEVAL3Z evaluation board allows users to easily evaluate the ISL8240M dual 20A/single 40A step-down switching mode DC/DC analog power module. The ISL8240MEVAL3Z evaluation board enables a single output by paralleling two phases to deliver 40A of continuous load current.

The evaluation board shows how easy it is to apply the ISL8240M high-power, current-sharing DC/DC analog power module to power-hungry datacom, telecom and FPGA applications. All that is needed for a complete design are the ISL8240M module, a few passive components, and VOUT setting resistors.

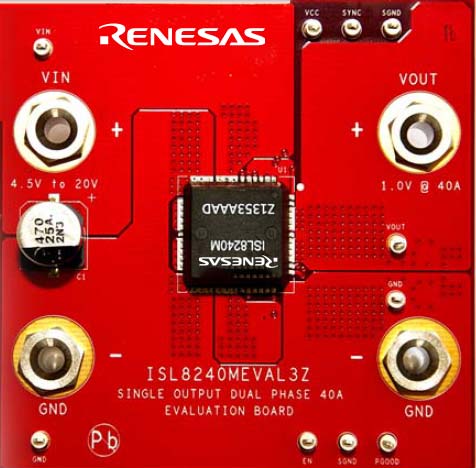

ISL8240MEVAL3Z Power Module Evaluation Board
ISL8240MEVAL3Z Power Module Evaluation Board
  • Fully-encapsulated dual step-down switching power supply
  • Up to 100W output from a 17mm x 17mm PCB footprint
  • Dual 20A or single 40A output
  • Up to 94% conversion efficiency
  • 4.5V to 20V input voltage range
  • 0.6V to 2.5V output voltage range
  • 1.5% output voltage accuracy with differential remote sensing
  • Output overvoltage, overcurrent and over-temperature protection
  • QFN package with exposed leads permits easy probing and visual solder inspection

アプリケーション

  • Computing, networking and telecom infrastructure equipment
  • Industrial and medical equipment
  • General purpose point-of-load (POL) power

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－開発ツール
ISL8240MEVAL3Z User Guide
PDF 684 KB
データシート
ISL8240M Datasheet
PDF 1.86 MB
2件

設計・開発

ソフトウェアダウンロード
分類 タイトル 日時
PCB設計ファイル
ISL8240MEVAL3Z Design Files
ZIP 1.69 MB
1件
