概要

The iW3671 front-end flyback power factor correction device provides high power factor (PF >0.9) and low THD (<20%) down to 33% load current using Renesas' PF-Boost™ technology. The device can be configured in both isolated and non-isolated configurations, as a buck, buck-boost, or flyback converter, and consumes less than 150mW no-load standby power at 230VAC.

The iW3671 integrates a full range of protection features including output overvoltage, over-power, input overvoltage and undervoltage, overcurrent and sense resistor short circuit protection, open loop, and over-temperature protection.

For an integrated high-voltage startup option, see the iW3677.

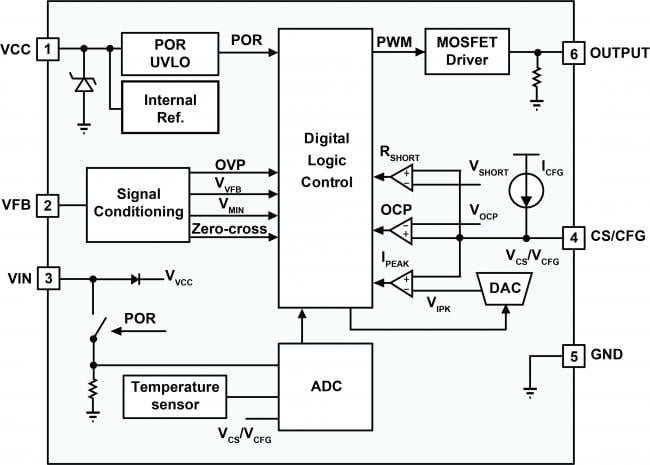

iW3671 Functional Block Diagram

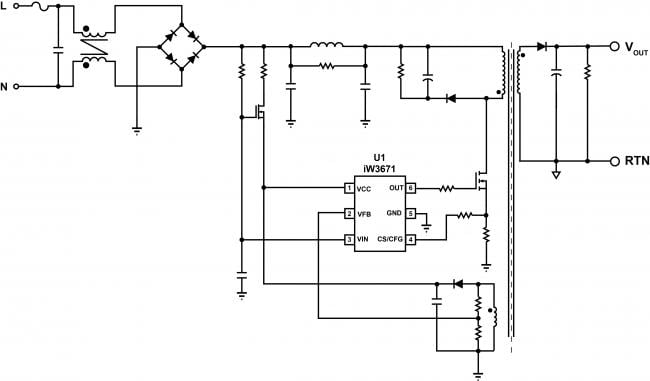

iW3671 Typical Applications Diagram
iW3671 Functional Block Diagram
iW3671 Typical Applications Diagram
  • 100W Offline Controller Supports Isolated and Non-isolated Flyback, Buck and Buck-Boost
  • PF >0.9 and THD <20% Across Input Voltage at Output Power >33%
    • THD <10% at Full Load, Across the Input Voltage Range
  • Supports Wide AC Input Voltage – 90VAC to 305VAC with Tight AC Load and Line Regulation (±3%)
  • Fast PFC Ready Time <0.2s
  • Standby Power - <150mW at Input Voltage of 230VAC
  • Fully Protected
    • Output Overvoltage, Over-Power, Overcurrent, Sense-Resistor Short Protections
    • Input Voltage Undervoltage and Overvoltage Protection
    • Built-In Over-Temperature Protection
    • Open Loop Protection

アプリケーション

  • Commercial Lighting:
    • External Fixture Drivers

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート
iW3671 Datasheet
ログインしてダウンロード PDF 2.13 MB 简体中文
製品概要
iW3671 Product Summary
PDF 534 KB 简体中文
その他資料
Reference Design EBC20071: iW3671-00, iW380-00, iW350-30, 36V/0.8A, 0-10V Dimmable SSL LED Driver Design
ログインしてダウンロード ZIP 6.12 MB
その他資料
Reference Design EBC20075: iW3671-00, iW380-20, iW350-30, 36V/800mA, 0-10V Dimmable LED Driver Design
ログインしてダウンロード ZIP 6.04 MB
4件

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    ご購入 / サンプル
    型名
    IW3671-00C
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    		 SOT23-6L Tape & Reel 1 サンプルを入手,
