Evaluation Board for F6922
The Renesas F6922EVB Evaluation Board is designed to reduce the learning cycle, build system-level confidence and enable a rapid time to market with the F6922 IC. The...
概要
説明
The F6922 is an ultra-low power consumption, dual-channel, low noise amplifier (LNA) RFIC designed for application in Ku- Band SATCOM planar phased array antennas. The exceptional combination of low power consumption, low noise, high gain, and compact size, maximizes the antenna array G/T while minimizing overall system power dissipation. An external bias current provides gain control, standby mode and temperature compensation.

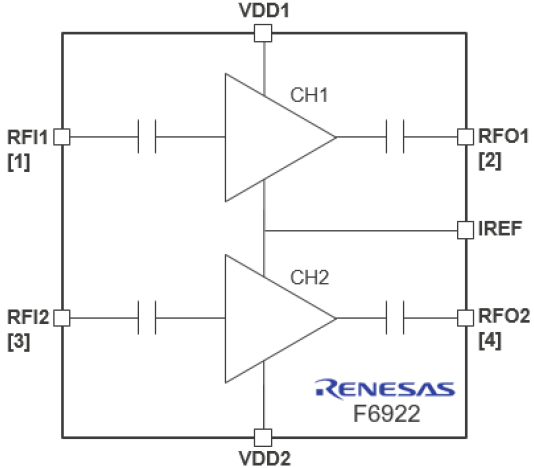

The F6922 includes two independent gain/phase matched LNA channels in a compact 23-pin, 0.5mm pitch BGA package. All inputs and outputs are single-ended and 50Ω matched for ease of integration on to phased array antenna panels.
特長
- Frequency: 17.7 – 21.2 GHz
- Gain: 19.5dB typ. at 19.5GHz
- Noise figure: 1.8dB
- Output P1dB: -2.3dBm
- Power consumption: 15mW/ch
- Channel isolation: 30dB
- Supply voltage: 0.9 – 1.0V
- Common bias control input
- Compact size for planar integration on λ/2 grid
- 2.7mm × 2.7mm × 0.9mm, 23-pin BGA
- -40 °C to +85 °C ambient operating temperature range
製品比較
アプリケーション
アプリケーション
- Electronically Steered Phased Array Antennas (ESAs)
- Aerospace, Maritime, and Satcom-on-the-move (SOTM)
- Ka-Band SATCOM Terminals
- Communication, Electronic Warfare (EW), and Radar Systems
