Evaluation Kit for ZSSC3154
The ZSSC3154KIT Evaluation Kit provides the hardware needed for configuration, calibration and evaluation of the ZSSC3154 Sensor Signal Conditioner (SSC) IC. The user's...
概要
説明
The ZSSC3154 Mass Calibration System provides the hardware needed for simultaneous configuration, calibration and evaluation of multiple ZSSC3154 Sensor Signal Conditioner (SSC) ICs. The user's PC can communicate via the SSC Communication Board with multiple ZSSC3154 ICs (DUTs) mounted on either the user's modules or ZSSC3154 Mass Calibration Reference Boards, which are connected through the Mass Calibration Board (MCB). Each MCB allows connection of up to 24 DUTs. The system can operate with up to 8 MCBs, allowing connection of up to 192 DUTs. The Evaluation Kit Software is available on-line for free download.
For further information and support for the SSC Communication Board, visit the SSC-CB product page.
Additional boards can be ordered separately. To enable product comparisons, this modular kit is compatible with other select IDT devices. Contact your local sales representative for more information.
特長
- 4 Mass Calibration Boards
- SSC Communication Board
- 4 ZSSC3154 Mass Calibration Reference Boards with 1 sample ZSSC3154 mounted
- USB Cable
- SSC Flat Cable: 30m of 10-wire flat cable and 100 connectors
アプリケーション
ドキュメント
= ピックアップ
ログイン後、ご登録が可能となります。
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日時 |
| マニュアル－開発ツール | PDF 2.56 MB | |
| データシート－簡略版 | PDF 401 KB | |
| データシート | PDF 1.79 MB | |
3件
|
||
設計・開発
ソフトウェア／ツール
関連ボード＆キット

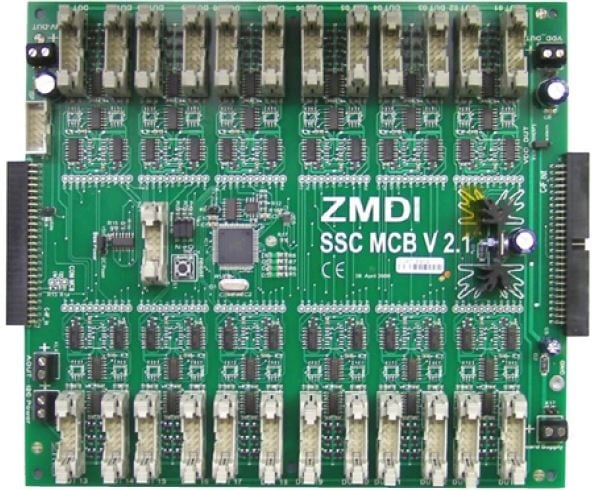

SSC Mass Calibration Board
