概要
説明

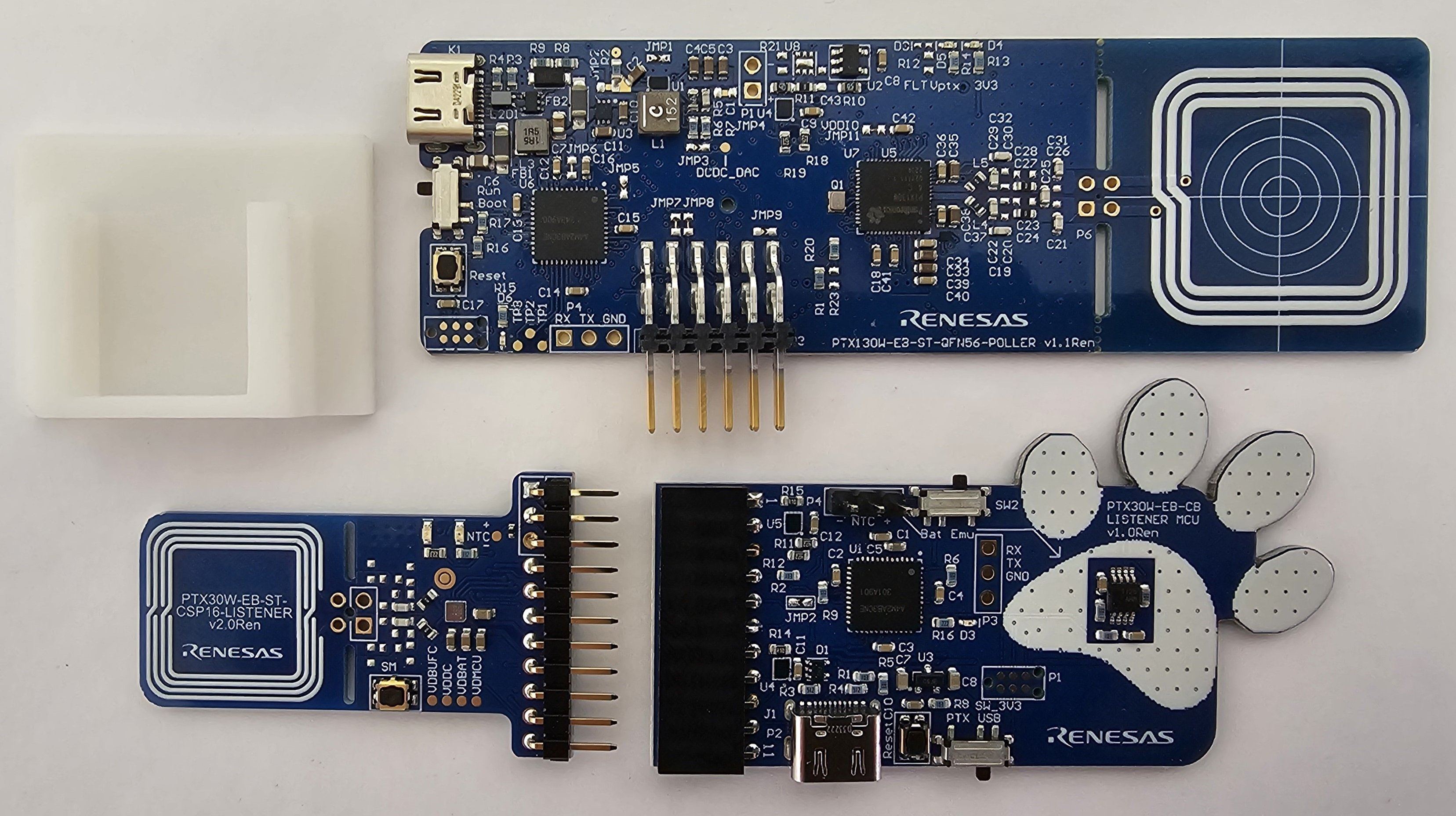

The PTX130W-30W-EVK wireless charging (WLC) evaluation kit combines the high-efficiency, high-power PTX130W NFC WLC IC with the PTX30W fully integrated, high-power harvesting WLC listener IC. Users are able to cut development time and effort with increased flexibility for NFC wireless charging with this complete system reference design.
特長
- Demonstrate up to 1W charging power on the PTX30W listener
- Evaluate NFC wireless charging with customer target device
- Mock-up with own antenna for RF evaluation
- Software evaluation and integration
アプリケーション
アプリケーション
- Stylus
- Smart ring
- Smart glasses
- Wearable devices
- Hearing aids
- Medical sensors
- Smart watches
- Fitness trackers
ドキュメント
ログイン後、ご登録が可能となります。
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日時 |
| マニュアル－ハードウェア | PDF 1.14 MB | |
| マニュアル－ハードウェア | PDF 2.97 MB | |
| マニュアル－ハードウェア | PDF 1.84 MB | |
| マニュアル－ハードウェア | PDF 944 KB | |
| クイックスタートガイド | PDF 2.21 MB | |
| 回路図 | SCH 11 KB | |
| マニュアル－開発ツール | PDF 1.43 MB | |
7件
|
||
