Overview

The RX660 Group is the first 5V-compatible product among the RX600 and RX700 high-end general-purpose microcontrollers. With this 5V support, it gives excellent noise tolerance and does not require any external coils for noise suppression, which contribute to the reduction of the overall system cost. The RXv3 core operates at 120 MHz with no wait access to the flash memory, resulting in stable arithmetic processing and achieving excellent real-time performance. The number of effective general-purpose IO pins has been increased by approximately 10% from the previous 5V-compatible RX210, enabling an increase in the number of sensors that can be connected with the same package, contributing to easier system upgrades. For peripheral functions, this is the first in the RX series to incorporate CAN FD, enabling the implementation of next-generation networks such as industrial networks. Furthermore, HOCO oscillation accuracy of 1.0% can be guaranteed in a high-end product for the first time, enabling a reduction in external oscillators and contributing to lower system costs. A wide range of customer platform development can be handled with a single chip with a LFQFP package lineup ranging from 48-pin to 144-pin, and featuring up to 1MB flash memory and 128KB SRAM. This easily improves the performance and expands the functionality of home appliances and industrial equipment.

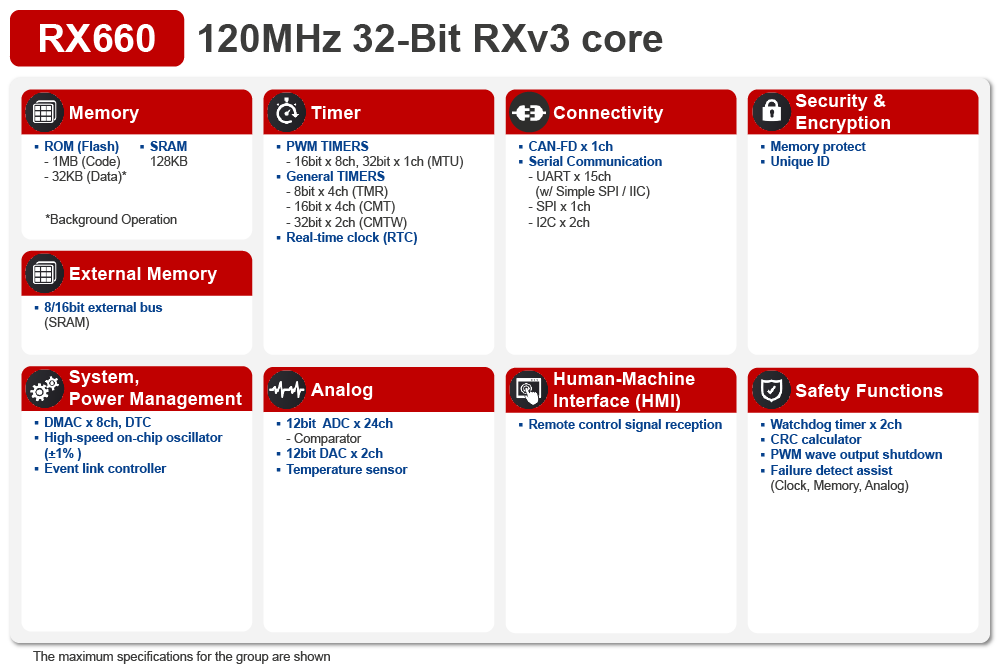

RX660 Block Diagram

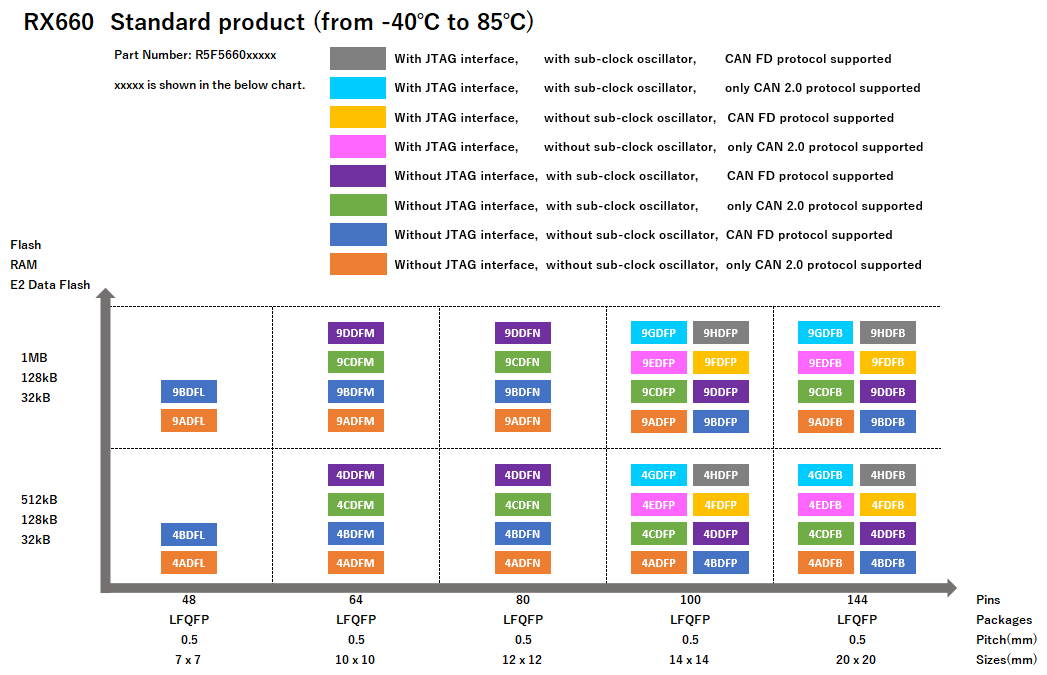

Pin-Memory Diagram of RX660 standard products
Pin-Memory Diagram of RX660 High-temperature products
RX660 Block Diagram
Pin-Memory Diagram of RX660 standard products
Pin-Memory Diagram of RX660 High-temperature products
  • Wide operating voltage range of 2.7 to 5.5V
  • 120MHz RXv3 CPU core on-board (721CoreMark)
  • Single-precision FPU, batch register save function for faster interrupt response, trigonometric function accelerator (TFU)
  • Up to 1MB flash memory (120MHz read access) and 128KB SRAM
  • 32KB data flash that can store data like an EEPROM
  • Pin layout is compatible with existing RX products, peripheral function compatible
  • +/-1.0% accuracy high-speed on-chip oscillator
  • CAN FD (ISO 11898-1:2015 standard)
  • Infrared remote control receiver circuit
  • SCI (up to 13 ch) supporting a variety of communication functions
  • SCI (up to 2 ch) with 16-byte transmit/receive FIFO
  • I2C bus interface (RIICa) (2 ch)
  • RSPI (1 ch) up to 30 Mbps transfer
  • 16-bit general-purpose PWM timer (complementary PWM output possible)
  • 12-bit A/D converter (1 unit: 24 ch), 12-bit D/A converter (2 ch), comparator (4 ch)
  • Real-Time Clock (RTC)
  • Diverse package lineup from 48 to 144 pins
  • Up to 134 general-purpose I/O ports

Documentation

Design & Development

Software & Tools
RI600V4 Real-time OS for RX Family
μITRON4.0 Specification real-time OS for RX Family [Required IDE : e2 studio, CS+] * RI600V4 is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600V4 are requested to contact our regional marketing departments for details.
ITRON OS Renesas
RI600PX Real-time OS for RX Family
μITRON4.0/PX Specification real-time OS for RX Family [Required IDE : CS+] * RI600PX is not generally promoted to U.S. and European customers. Customers in U.S. and Europe who are interested in RI600PX are requested to contact our regional marketing departments for details.
ITRON OS Renesas
C/C++ Compiler Package for RX Family [CC-RX]
C/C++ Compiler Package for RX Family [IDE: CS+, e² studio, High-performance Embedded Workshop]
 Compiler/Assembler Renesas
e² studio Partner OS Aware Debugging
Standard debugger in e2 studio for supporting task level debugging of real-time OS applications.
 Plug-in, OS Aware Debugging, Etc. Renesas
E2 emulator Lite [RTE0T0002LKCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
 Emulator Renesas
E2 emulator [RTE0T00020KCE00000R]
On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
 Emulator Renesas
E20 emulator [R0E000200KCT00]
On-chip debugging emulator. Also available as a flash memory programmer. For RX600 or RX700 Series MCU, trace functions and Real-time RAM monitor functions available. For MCUs other than RX600 or RX700, the available debugging function corresponds to that of E2 Emulator Lite. [Support MCU/MPU: RX, RL78, RH850, V850, 78K0R, 78K0, R8C]
 Emulator Renesas
CS+
Renesas integrated development environment (IDE) [Support MCU/MPU: RH850, V850, RX, RL78, 78K0R, 78K0] (Note: CS+ is not generally promoted to U.S. and European customers.) (Note: To use Smart Configurator on CS+ for RL78/G23 and RX family MCUs, install the Smart Configurator for each MCU family separately downloading from ”Design & Support” > ”Development Tools” > ”Smart Configurator”)
 IDE and Coding Tool Renesas
CS+ Partner OS Aware Debugging Plug-in
Features for task level debugging of real-time OS applications [Plugin for Renesas IDE CS+] [Support MCU/MPU: RX, RL78]
 Plug-in, OS Aware Debugging, Etc. Renesas
PG-FP6
Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C]
 Programmer (Unit/SW) Renesas
Renesas Flash Programmer (Programming GUI)
Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU Renesas Synergy, DA1453x, DA1459x, DA1469x, DA1470x, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78K0R, 78K0]
 Programmer (Unit/SW) Renesas
External Flash Definition Editor
Utility for downloading data to external flash memory (for emulators)
 Other Emulators and Options Renesas
Simulator for CS+ of RX Family
Simulator for CS+ of RX Family [Support IDE : CS+] (Note: This product is included in Compiler Package and is not available separately.)
Simulator Renesas
Crypto Library
Robust encode library to ensure security for all types of system developments
 Security / Crypto Renesas
FAT File System [M3S-TFAT-Tiny] for the RX Family
FAT file system for RX Family
File System Renesas
Sound Playback/Compression System [M3S-S2-Tiny] for RX Family
Sound playback system for RX Family
Sound / Voice Renesas
SPI/QSPI Serial Flash Memory, QSPI Serial Phase Change Memory Driver
Device Driver for SPI and QSPI Serial Flash Memory and QSPI Serial Phase Change Memory
 Serial Memory Renesas
DSP Library for RX Family
Software library that implements numeric operation function used in DSP with general purpose MCU
DSP / FFT Renesas
QE for Display: Development Assistance Tool for Display Applications
This development assistance tool supports the development of embedded systems which use the LCD display functions of display controllers from Renesas. [Plugin for Renesas IDE "e² studio"] [Standalone Version] [Support MCU/MPU:RZ, RX, RA]
Solution Toolkit Renesas
RX Smart Configurator
RX Smart Configurator is a utility for combining software in ways that meet your needs. It simplifies the embedding of Renesas drivers in your systems through supports for importing middleware and drivers and configuring pins.
 Solution Toolkit Renesas
e² studio - Information for the RX Family
Eclipse-based Renesas integrated development environment (IDE).
IDE and Coding Tool Renesas
Simulator for e² studio of RX Family
Simulator for e² studio of RX Family [Support IDE : e² studio] (Note: This product is included in the Renesas IDE "e² studio" and is not available separately.)
Simulator Renesas
Renesas IAR Embedded Workbench Device-Support-Packages
Renesas IAR Embedded Workbench Device-Support-Packages include all device-specific files to be used with the Embedded Workbench IDE.
 IDE and Coding Tool Renesas
RX Driver Package
Device driver set for the RX Family (including major middleware). Target devices : RX130, RX23W, RX231, RX24U, RX64M, RX65N, RX66T, RX71M, RX72M etc.
Software Package Renesas
Add 3 hidden items
24 items
Target Board for RX660

RTK5RX6600C00000BJ

Evaluation
Learn More

Target Board for RX660

The Target Board for RX660 provides an entry point to evaluation, prototyping and developing for the RX660 MCU. Moreover, since this board incorporates an emulator...

Featured Documents:
Target Board for RX660 User's Manual Rev.1.00
rsk_rx660_kit

RX660-Starter-Kit

Starter
Learn More

Renesas Starter Kit for RX660

The Renesas Starter Kit for RX660 is the perfect starter kit for developers who are new to the RX660 (code Flash 1MB, pin count 144-pin). The kit includes an LCD...

ECAD Models

Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.

Explore ECAD Models
Diagram of ECAD Models

Product Options

    Processing table
    Carrier Type
    PLP
    CPU
    Program Memory (KB)
    Data Flash (KB)
    RAM (KB)
    Supply Voltage (V)
    Operating Freq (Max) (MHz)
    Sub-clock (32.768 kHz)
    Lead Count (#)
    I/O Ports
    Ethernet
    UART (#)
    SPI (#)
    I2C (#)
    CAN Interface
    DMA
    Timer
    ADC
    DAC
    Human Machine Interface
    RTC
    Watchdog Timer (ch)
    LVD or PVD
    Debug Interface
    Pkg. Type
    Pkg. Dimensions (mm)
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    Buy / Sample
    Part Number
    R5F56604ADFB#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 512 32 128 2.7 - 5.5 120 No 144 134 No 15 16 17 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 20 x 20 x 1.7 3 5.179
    R5F56609AGFM#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 No 64 56 No 12 13 13 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 14-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 10 x 10 x 1.4 3
    R5F56609CDFP#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 100 90 No 14 15 16 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 14 x 14 x 1.4 3 4.932
    R5F56609EGFP#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 100 91 No 14 15 16 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes JTAG/Single-wire Serial LFQFP 14 x 14 x 1.4 3 5.851
    R5F56609DDFB#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 144 132 No 15 16 17 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 20 x 20 x 1.7 3
    R5F56609GDFP#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 100 89 No 14 15 16 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes JTAG/Single-wire Serial LFQFP 14 x 14 x 1.4 3
    R5F56609ADFM#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 No 64 56 No 12 13 13 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 14-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 10 x 10 x 1.4 3
    R5F56609BGFN#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 No 80 72 No 13 14 15 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 17-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 12 x 12 x 1.7 3 5.354
    R5F56609DGFN#10
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 80 70 No 13 14 15 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 17-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 12 x 12 x 1.7 3 Get Samples,
    R5F56609HGFB#30
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 144 131 No 15 16 17 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes JTAG/Single-wire Serial LFQFP 20 x 20 x 1.7 3 Get Samples,
    R5F56609AGFM#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 64 56 No 12 13 13 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 14-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 10 x 10 x 1.4 3 4.693
    R5F56609CDFP#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 100 90 No 14 15 16 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 14 x 14 x 1.4 3 4.85
    R5F56609FDFB#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 No 144 133 No 15 16 17 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes JTAG/Single-wire Serial LFQFP 20 x 20 x 1.7 3 6.042
    R5F56609BDFN#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 No 80 72 No 13 14 15 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 17-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 12 x 12 x 1.7 3 5.025
    R5F56609DDFM#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 64 54 No 12 13 13 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 14-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 10 x 10 x 1.4 3
    R5F56609GDFP#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 100 89 No 14 15 16 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes JTAG/Single-wire Serial LFQFP 14 x 14 x 1.4 3 4.85
    R5F56609BGFN#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 80 72 No 13 14 15 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 17-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 12 x 12 x 1.7 3 5.354
    R5F56609DGFN#30
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 80 70 No 13 14 15 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 17-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 12 x 12 x 1.7 3 4.664 Get Samples,
    R5F56609HGFP#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 100 89 No 14 15 16 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes JTAG/Single-wire Serial LFQFP 14 x 14 x 1.4 3 5.709
    R5F56609AGFN#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 No 80 72 No 13 14 15 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 17-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 12 x 12 x 1.7 3
    R5F56609CGFB#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 144 132 No 15 16 17 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 20 x 20 x 1.7 3
    R5F56609FDFB#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 144 133 No 15 16 17 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes JTAG/Single-wire Serial LFQFP 20 x 20 x 1.7 3 5.828
    R5F56609BDFN#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 80 72 No 13 14 15 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 17-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 12 x 12 x 1.7 3 5.025
    R5F56609DDFM#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 64 54 No 12 13 13 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 14-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 10 x 10 x 1.4 3
    R5F56609BDFB#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 No 144 134 No 15 16 17 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 20 x 20 x 1.7 3 6.042
    R5F56609CGFN#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 80 70 No 13 14 15 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 17-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 12 x 12 x 1.7 3
    R5F56609FGFB#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 144 133 No 15 16 17 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes JTAG/Single-wire Serial LFQFP 20 x 20 x 1.7 3 5.76
    R5F56609BGFB#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 144 134 No 15 16 17 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 20 x 20 x 1.7 3
    R5F56609DDFP#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 100 90 No 14 15 16 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 14 x 14 x 1.4 3
    R5F56609HDFB#10
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 144 131 No 15 16 17 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes JTAG/Single-wire Serial LFQFP 20 x 20 x 1.7 3 Get Samples,
    R5F56609ADFB#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 144 134 No 15 16 17 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 20 x 20 x 1.7 3
    R5F56609BGFL#30
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 48 40 No 9 10 10 CAN FD x 1-ch Yes 8-bit x 3-ch, 16-bit x 11-ch, 32-bit x 2-ch 12-bit x 10-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 7 x 7 x 1.7 3 Get Samples,
    R5F56609DGFB#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 144 132 No 15 16 17 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 20 x 20 x 1.7 3
    R5F56609HDFP#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 100 89 No 14 15 16 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes JTAG/Single-wire Serial LFQFP 14 x 14 x 1.4 3 5.363
    R5F56609AGFL#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 No 48 40 No 9 10 10 CAN x 1-ch Yes 8-bit x 3-ch, 16-bit x 11-ch, 32-bit x 2-ch 12-bit x 10-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 7 x 7 x 1.7 3
    R5F56609CDFN#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 80 70 No 13 14 15 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 17-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 12 x 12 x 1.7 3
    R5F56609EGFB#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 144 133 No 15 16 17 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes JTAG/Single-wire Serial LFQFP 20 x 20 x 1.7 3 5.76
    R5F56609BDFL#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 48 40 No 9 10 10 CAN FD x 1-ch Yes 8-bit x 3-ch, 16-bit x 11-ch, 32-bit x 2-ch 12-bit x 10-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 7 x 7 x 1.7 3 4.614
    R5F56609CGFP#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 100 90 No 14 15 16 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 14 x 14 x 1.4 3 5.165
    R5F56609GDFB#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 144 131 No 15 16 17 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes JTAG/Single-wire Serial LFQFP 20 x 20 x 1.7 3 5.619
    R5F56609ADFL#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 No 48 40 No 9 10 10 CAN x 1-ch Yes 8-bit x 3-ch, 16-bit x 11-ch, 32-bit x 2-ch 12-bit x 10-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 7 x 7 x 1.7 3
    R5F56609BGFM#10
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 No 64 56 No 12 13 13 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 14-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 10 x 10 x 1.4 3 4.387 Get Samples,
    R5F56609DGFM#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 64 54 No 12 13 13 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 14-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 10 x 10 x 1.4 3
    R5F56609HDFP#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 100 89 No 14 15 16 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes JTAG/Single-wire Serial LFQFP 14 x 14 x 1.4 3 5.275
    R5F56609AGFL#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 48 40 No 9 10 10 CAN x 1-ch Yes 8-bit x 3-ch, 16-bit x 11-ch, 32-bit x 2-ch 12-bit x 10-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 7 x 7 x 1.7 3
    R5F56609CDFN#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 80 70 No 13 14 15 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 17-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes Single-wire Serial LFQFP 12 x 12 x 1.7 3
    R5F56609BDFM#10
    circleActive
    memory
    view_in_ar
    		Tray (Full Carton) TBD RXv3 1024 32 128 2.7 - 5.5 120 No 64 56 No 12 13 13 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 14-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 10 x 10 x 1.4 3
    R5F56609GDFB#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 Yes 144 131 No 15 16 17 CAN x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 3-ch 12-bit x 24-ch 12-bit x 2-ch Remote control signal receiver Yes 2 Yes JTAG/Single-wire Serial LFQFP 20 x 20 x 1.7 3 5.42
    R5F56609ADFL#30
    circleActive
    memory
    view_in_ar
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 48 40 No 9 10 10 CAN x 1-ch Yes 8-bit x 3-ch, 16-bit x 11-ch, 32-bit x 2-ch 12-bit x 10-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 7 x 7 x 1.7 3
    R5F56609BGFM#30
    circleActive
    memory
    view_in_ar
    Samples Available
    Buy Now
    		Tray TBD RXv3 1024 32 128 2.7 - 5.5 120 No 64 56 No 12 13 13 CAN FD x 1-ch Yes 8-bit x 4-ch, 16-bit x 12-ch, 32-bit x 2-ch 12-bit x 14-ch 12-bit x 2-ch Remote control signal receiver No 2 Yes Single-wire Serial LFQFP 10 x 10 x 1.4 3 Get Samples,
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    Videos & Training

    RX660 Voice Recognition Solution

    This video explains the newly designed RX660 voice recognition solution, including board information, relevant tools, and evaluation results in an environment that appears in daily life.

    Video List
    RX660 Voice Recognition Solution
    High Performance and Noise-Tolerant RX660 MCU for 5V Power Supply

    News & Blog Posts

    Blog Post Apr 6, 2023
    Blog Post Mar 20, 2023
    Blog Post Feb 27, 2023
    Blog Post Jan 23, 2023
    Blog Post Sep 1, 2022
    Blog Post Aug 5, 2022
    Blog Post Aug 2, 2022
    Blog Post Jul 22, 2022
    Blog Post Jul 11, 2022
    Blog Post Jun 17, 2022
    Blog Post Apr 19, 2022
    Blog Post Apr 5, 2022
    Blog Post Mar 9, 2022
    Blog Post Mar 4, 2022
    Blog Post Jan 27, 2022
    Blog Post Dec 1, 2021
    Blog Post Oct 6, 2021
    Blog Post Sep 28, 2021
    Blog Post Sep 17, 2021
    Blog Post Aug 6, 2021
    Blog Post Aug 5, 2021
    Blog Post Jul 12, 2021
    Blog Post Jul 1, 2021

    Resonator Information

    Please search for your resonator on its manufacturer's site linked below. If you require optimal oscillation circuit constants for your particular system, please ask the manufacturer of the oscillator.
    For main clock resonators / For subclock resonators:　
    KYOCERA: Click here for the RX660 oscillation evaluation result.
    Murata Manufacturing: For IC Manufacturer, select Renesas Electronics, and enter "R5F5660" or "RX660" into the IC Part Number search box.
    NIHON DEMPA KOGYO: Please see IC Matching Information in the RX660 column.
    Seiko Instruments: Please see the matching data in the RX660 column.

    For information on resonators, please also refer to the following application note.
    Design Guide for Main Clock Circuits and Sub-Clock Circuits Rev.1.01 (PDF | English, 日本語)
