The ISL28217 is a very high precision amplifier featuring low noise vs. power consumption, low offset voltage, low bias current, and low temperature drift making it the ideal choice for applications requiring both high DC accuracy and AC performance. The combination of precision, low noise and small footprint provides users with outstanding value and flexibility relative to similar competitive parts. Applications for these amplifiers include precision active filters, medical and analytical instrumentation, precision power supply controls, and industrial controls. The ISL28217 dual op amp is offered in 8 Ld SOIC, MSOP and TDFN packages. Additionally, the device is offered in standard pin configurations and operates across the extended temperature range from -40 °C to +125 °C.
特長
- Low input offset voltage: ±50µV, maximum
- Superb offset voltage TC: 0.6µV/°C, maximum
- Input bias current: ±1nA, maximum
- Input bias current TC: ±5pA/°C, maximum
- Low current consumption: 440µA
- Voltage noise: 8nV/Hz
- Wide supply range: 4.5V to 40V
- Operating temperature range: -40 °C to +125 °C
- Small package offerings in single, dual and quad
- Pb-free (RoHS compliant)
- No phase reversal
製品比較
アプリケーション
- Precision instruments
- Medical instrumentation
- Power supply control

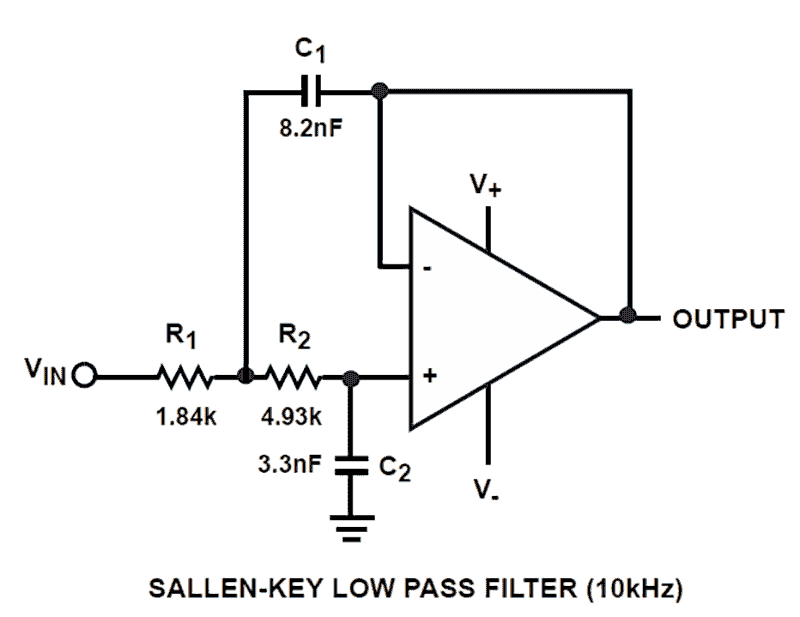

- Active filter blocks
- Thermocouples and RTD reference buffers
- Data acquisition
設計・開発
ソフトウェア／ツール
ボード＆キット
Precision Dual Low Noise Op Amp Evaluation Board
The ISL28217SOICEVAL2Z evaluation board contains all the circuitry needed to characterize critical performance parameters of the ISL28217 operational amplifier in...
主要ドキュメント:
Precision Dual Low Noise Op Amp Evaluation Board
The ISL28227SOICEVAL2Z evaluation board contains all of the circuitry needed to characterize critical performance parameters of the ISL28227 operational amplifiers in...
主要ドキュメント:
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
Pkg. Type |
Carrier Type |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
ご購入 / サンプル |
|
|---|---|---|---|---|---|
| 型名 | |||||
| SOICN | Reel | 2 | |||
| SOICN | Reel | 2 | |||
| SOICN | Reel | 2 | |||
| SOICN | Reel | 2 | 2.489 | ||
| MSOP | Tube | 2 | 2.428 | サンプルを入手, | |
| MSOP | Reel | 2 | |||
| MSOP | Reel | 2 |
