14-Channel Programmable Gamma Buffer Evaluation Board
The ISL76534EVAL1Z evaluation board is a complete platform used to evaluate the specifications and functionalities of the ISL76534 programmable gamma buffer. The...
主要ドキュメント:
概要
説明

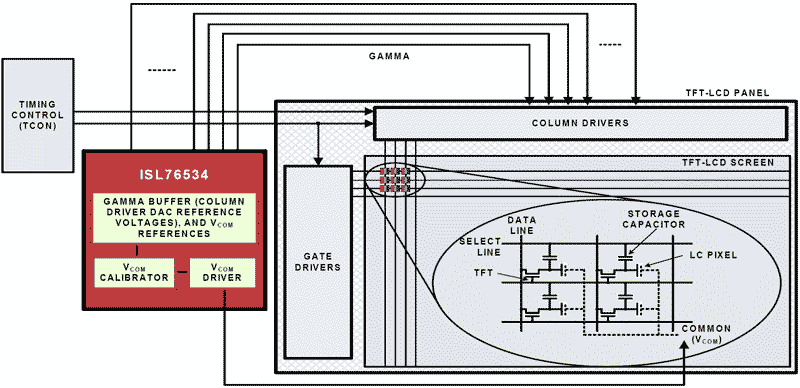

The ISL76534 is a programmable gamma buffer for TFT-LCDs featuring ultra-low power operation. The ISL76534 contains an I²C programmable, 10-bit, 14-channel gamma reference voltage generator with buffered outputs, a 10-bit programmable VCOM calibrator, a high output current VCOM amplifier, and internal EEPROM to store all reference voltage data. The EEPROM features an endurance of 10,000 write cycles and a data retention of 20 years at 105 °C. Combining gamma and VCOM reference voltage generators with low power operation and EEPROM, the ISL76534 provides a complete reference voltage solution ideal for TFT-LCD displays. The ISL76534 is available in a super thin (height = 0.4mm maximum) 28 Ld 4mm x 5mm X2QFN thermally enhanced package. The device is specified for operation across the ambient temperature range of -40 °C to +105 °C.
特長
- 14-channel gamma references, 10-bit resolution with buffered outputs
- 1-channel VCOM calibrator with 10-bit resolution
- High output current VCOM amplifier
- Ultra-low power operation, ideal for automotive displays: Typical quiescent power, 12mW at 8V AVDD
- EEPROM data retention: 20 years at 105 °C
- EEPROM endurance: 10,000 write cycles
- Read/write capable over 2.25V to 3.6V DVDD range
- 6.3V to 19V analog supply operating range
- 2.25V to 3.6V digital supply operating range
- Power Supply Rejection Ratio (PSRR): 75dB typical
- 28 Ld 4mm x 5mm super thin X2QFN package
- Pb-free (RoHS compliant)
- AEC-Q100 qualified
