ISL54061

The ISL54061 device is a low ON-resistance, low voltage, bidirectional, dual single-pole/single-throw (SPST) analog switch. It is designed to operate from a single +1.8V to +6.5V supply and pass signals that swing down to 6.5V below the positive supply rail. Targeted applications include battery-powered equipment that benefit from low r_ON (0.56Ω), low power consumption (8nA) and fast switching speeds (t_ON = 55ns, t_OFF = 18ns). The digital inputs are 1.8V logic-compatible up to a +3V supply. This device is offered in a small form factor package, alleviating board space limitations. It is available in a tiny 10 Ld 1.8mm x 1.4mm µTQFN or 10 Ld 3mm x 3mm TDFN package. The ISL54061 is a committed dual single-pole/single-throw (SPST) that consists of two normally closed (NC) switches with independent logic control.

Pb-free (RoHS compliant)
Negative signal swing (Max 6.5V below V+)
ON-resistance (r_ON)
- V+ = +4.5V: 0.52Ω
- V+ = +4.3V: 0.65Ω
- V+ = +2.7V: 0.9Ω
- V+ = +1.8V: 1.8Ω
r_ON matching between channels: 10mΩ
r_ON flatness across signal range: 0.33Ω
Low THD+N @ 32Ω load: 0.02%
Single supply operation: +1.8V to +6.5V
Low power consumption @ 3V (P_D): 24nW

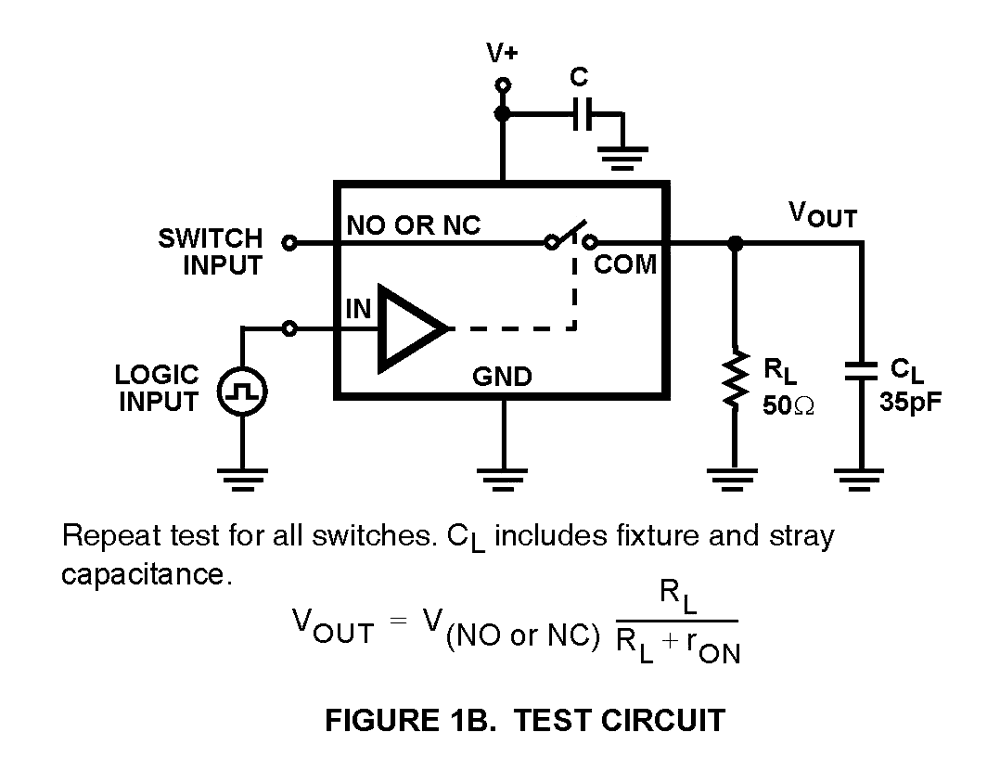

Fast switching action (V+ = +4.3V)
- t_ON: 43ns
- t_OFF: 23ns
ESD HBM rating: >6kV
Guaranteed break-before-make
1.8V logic compatible (+3V supply)
Low I+ current when V_INH is not at the V+ rail
Available in 10 Ld µTQFN 1.8mm x 1.4mm and 10 Ld 3mm x 3mm TDFN

Audio and video switching
Battery powered, handheld, and portable equipment
- MP3 and multimedia players
- Cellular/Mobile phones
- Pagers
- Laptops, notebook PCs, palmtops
Portable test and measurement
Medical equipment
