概要

The RC19216 is a 2:16 PCIe Gen6 multiplexer that is backward compatible with earlier PCIe generations. The RC19216 provides ultra-low additive jitter and reduced in-to-out delay performance for better design margin and incorporates several features for easier and more robust design.

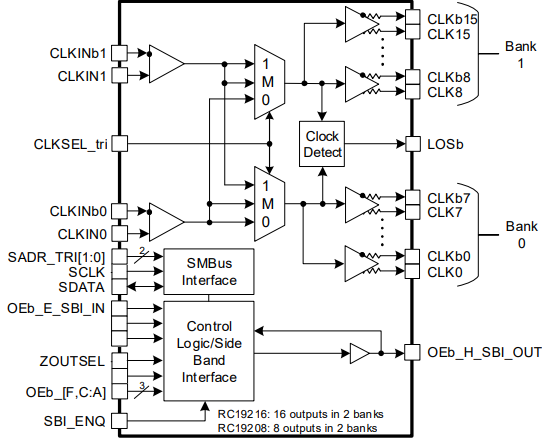

RC19216A - Block Diagram

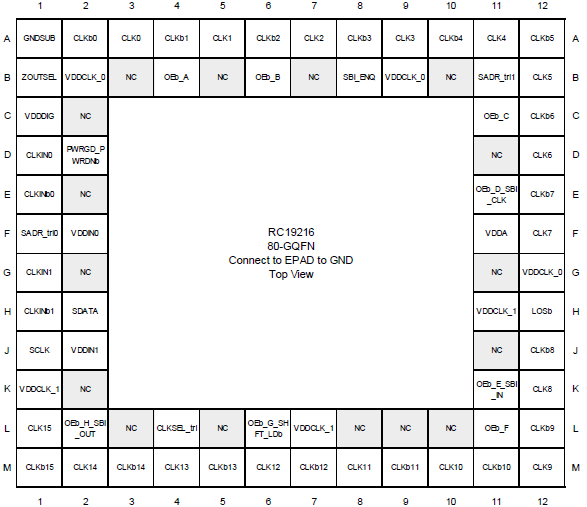

RC19216A - Pin Assignment
RC19216A - Block Diagram
RC19216A - Pin Assignment
  • LP-HCSL outputs eliminate up to 64 terminated resistors.
  • PCIe Gen 1–6 compliance
  • 2:16 or two 1:8 multiplexer options
  • Drive both source-terminated and double-terminated loads selectable 85Ω and 100Ω output impedance
  • Open-drain LOS (Loss-Of-Signal) indication output
  • Power down tolerance (PDT)
  • Flexible startup sequencing (FSS)
  • Automatic clock parking (ACP)
  • Dedicated OE# pins to control group output
  • 4-wire Side-Band interface supports high-speed serial output enable
  • SMBus write protection features with 9 selectable addresses
  • 6mm × 6mm 80-GQFN package

ドキュメント

設計・開発

ソフトウェアダウンロード
分類 タイトル 日時
ソフトウェア／ツール－その他
RC19 Symbol
ログインしてダウンロード ZIP 3.50 MB
1件

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Output Impedance
    Carrier Type
    Temp. Range
    Lead Count (#)
    Pkg. Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    ご購入 / サンプル
    型名
    RC19216AGN6#BD0
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    今すぐ購入する
    		85, 100 Tray -40 to 105°C 80 VFQFPN 3 5.727 サンプルを入手,
    RC19216AGN6#KD0
    circleアクティブ
    memory
    view_in_ar
    		85, 100 Reel -40 to 105°C 80 VFQFPN 3
