概要

The 9ZXL0851 is a low-power 8-output differential buffer that meets all the performance requirements of the Intel DB1200ZL specification. It is suitable for PCI-Express Gen1/2/3 or QPI/UPI applications, and uses a fixed external feedback to maintain low drift for demanding QPI/UPI applications.

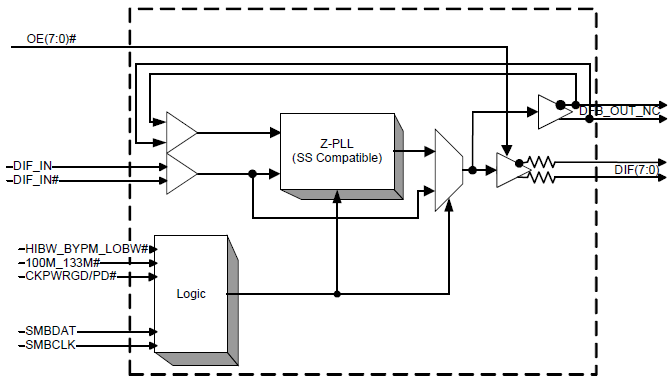

9ZXL0851A - Block Diagram

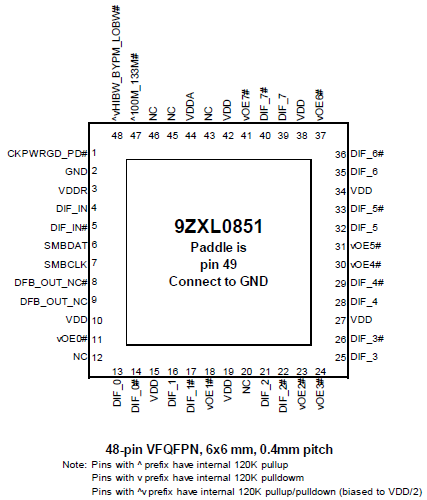

9ZXL0851A - Pin Assignment
9ZXL0851A - Block Diagram
9ZXL0851A - Pin Assignment
  • 8 – 0.7V low-power HCSL-compatible output pairs
  • LP-HCSL outputs with Zo = 85ohms ; save power and board space - no termination resistors required.
  • Space-saving 48-pin VFQFPN package
  • Fixed feedback path for 0ps input-to-output delay
  • 8 OE# pins; hardware control of each output
  • PLL or bypass mode; PLL can dejitter incoming clock
  • 100MHz or 133MHz PLL mode operation; supports PCIe and QPI applications
  • Selectable PLL bandwidth; minimizes jitter peaking in downstream PLL's
  • Spread Spectrum Compatible; tracks spreading input clock for low EMI
  • Cycle-to-cycle jitter < 50ps
  • Output-to-output skew < 65 ps
  • Input-to-output delay variation < 50ps
  • PCIe Gen3 phase jitter < 1.0ps RMS
  • QPI/UPI 9.6GT/s 12UI phase jitter < 0.2ps RMS

ドキュメント

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Lead Count (#)
    Temp. Grade
    Pb (Lead) Free
    Carrier Type
    Moisture Sensitivity Level (MSL)
    ご購入 / サンプル
    型名
    9ZXL0851AKLF
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    		 VFQFPN 48 C Yes Tray 3 サンプルを入手,
    9ZXL0851AKLFT
    circleアクティブ
    memory
    view_in_ar
    		VFQFPN 48 C Yes Reel 3
