概要
説明

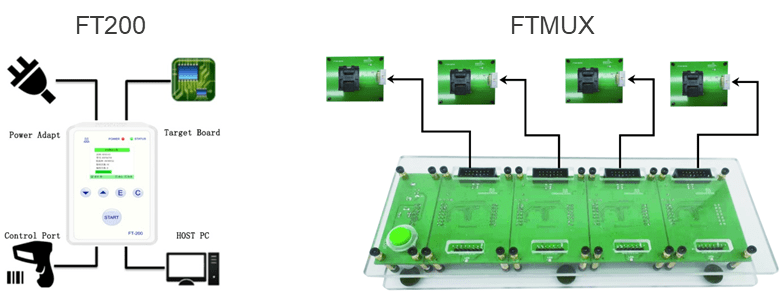

The FT200 series programmer is a single-channel programmer, with good compatibility, and powerful features. It can support Renesas RA/RX/RL78 MCUs, including Device Lifecycle Management (DLM) key function support on the latest RA Cortex®-M33 core MCUs. The FTMUX series programmer is a multi-channel output programmer with multiple master units to program multiple chips at the same time. This equipment is suitable for mass production in the factory.
画像
特長
- The output interface is a 14-pin (2.54mm) standard interface and compatible with E1, E2, E2 Lite, PG-FP6, and supports online/offline modes
- Supports automatic programming, robot or other control machine communicating and controlling programming, remote control of the remote PC for programming or caching to the server, support limit programming times, multiple projects (bin/hex/mot/s19 formats) storage and other functions
- Supports most active Renesas MCUs
- RA: SWD/UART interface, IDCODE/DLM protection
- RX: FINE/UART interface, IDCODE protection
- RL78: Single-Wire interface, Debug-ID protection
- Support custom serial numbers
- Additional functional requirements at customer request
製品比較
アプリケーション
アプリケーション
- Mass production programming in factory
- Product upgrade and maintenance
- After-sales maintenance and upgrade
- Automatic programming machine or robot
ソフトウェア
ソフトウェア／ツールページ
| Software title
|
Software type
|
会社名
|
|---|---|---|
| E2エミュレータ [RTE0T00020KCE00000R] オンチップデバッギングエミュレータ。フラッシュプログラマ兼用。 [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | ルネサス |
| E2エミュレータLite [RTE0T0002LKCE00000R] オンチップデバッギングエミュレータ。フラッシュプログラマ兼用。 [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | ルネサス |
| PG-FP6 フラッシュメモリプログラマ [書き込み用ソフト: 付属のプログラミングGUI ”FP6 Terminal”] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, RISC-V MCU, Renesas Synergy, パワーマネージメント, Renesas USB Power Deliveryファミリ, モータドライバ/アクチュエータドライバIC, SuperH, V850, 78K, R8C]
|
Programmer (Unit/SW) | ルネサス |
3件
|
||
