概要

The RH850/F1x 144pin Piggyback Board supports all devices of the RH850/F1L, RH850/F1K, RH850/F1KM-S2, and RH850/F1KM-S4 series in 144pin-package. It can be used standalone or in combination with a mainboard of the RH850 Evaluation Platform. The modular RH850 Evaluation Platform consisting of mainboards and piggyback boards is a platform for evaluating the features and performance of Renesas 32-bit RH850 microcontrollers.

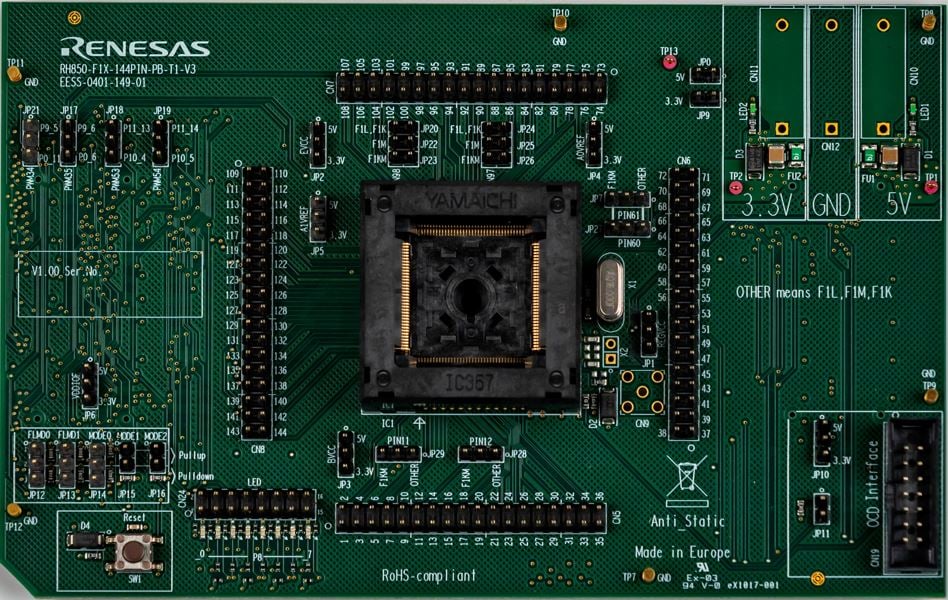

Y-RH850-F1X-144PIN-PB-T1-V3
Y-RH850-F1X-144PIN-PB-T1-V3
  • Can be used with all mainboards of the RH850 Evaluation Platform.
  • Socket for mounting the MCU [NOTE: MCU is not included, needs to be ordered separately]
  • 3.3V or 5.0V single supply voltage via 4mm Banana Jacks (2x red, 1x black)
  • External clock circuit
    • with an exchangeable 8, 16, or 20 MHz Crystal Resonator
    • sub clock 32.768 KHz
  • 8x Signal LEDs
  • 14pin Renesas Debug Connector to connect a Renesas or 3rd party emulator
    • offering LPD (1pin/4pin) and JTAG debug connection support
    • offering serial Flash programming support for the RH850 on-chip Flash memory.
  • Each pin of the device is accessible via 2.54 mm pitch connector (single row).
  • Reset circuit/switch.
  • Jumpers for device mode selection.

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－開発ツール
RH850/F1x 144pin Piggyback Board v3
PDF 1.82 MB
アプリケーションノート
RH850/F1Kx - Getting Started
ログインしてダウンロード PDF 334 KB
アプリケーションノート
RH850/F1x - Getting Started
PDF 302 KB
3件
