RH850/E2x 292pin Piggyback Board of RH850 Evaluation Platform
The RH850/E2X 292pin Piggyback Board supports all devices of the RH850/E2M and RH850/E2x-FCC1 series in 292pin-package. It can be used standalone or in combination with...
主要ドキュメント:
概要
説明

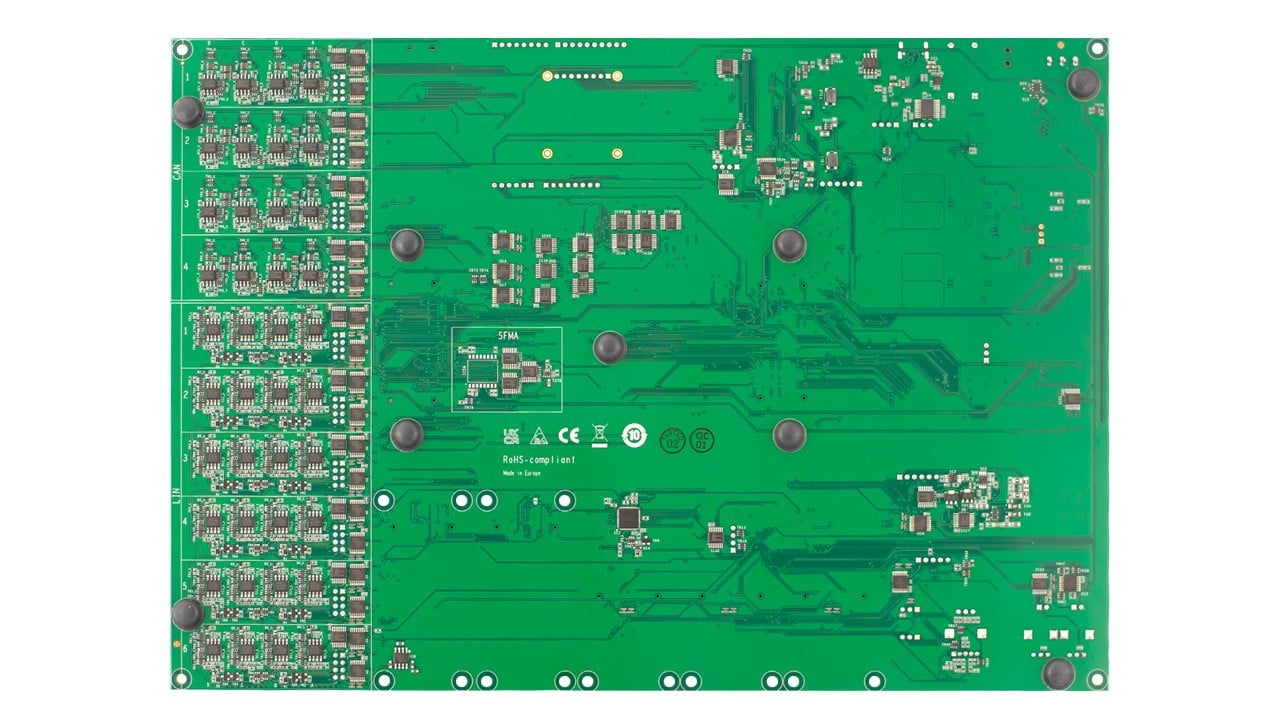

This mainboard provides communication interfaces to the RH850 MCU piggyback boards, offering compatibility across the entire RH850 MCU line for scalable development. The modular evaluation system consists of mainboards and piggyback boards allowing users to evaluate the features and performance of Renesas 32-bit RH850 microcontrollers.
特長
- Single board power supply (12V) with onboard voltage regulators
- High density connectors to adapt MCU piggyback boards
- Board Set-up Configuration via PC / GUI Software
- 16 CAN-FD interfaces
- 24 LIN interfaces
- 2 FlexRay interfaces
- 2 SENT interfaces
- 3 connectors for Ethernet Extension modules supporting MII/RMII, SGMII and T1S
- 2 connectors for CAN-XL Extension modules
- 2 connectors for graphic display extensions
- 2 connectors for motor control signal outputs [one with resolver input circuit]
- 2 PMOD connectors providing I²C/SPI connectivity in various standards
- 1 USB-C/UART1 interface for PC terminal communication
- 1 UART0 shared with one LIN connector
- 1 SD-Card interface
- 4 general-purpose Signal-LEDs
- 16 Signal-LEDs connected via CSI/LED driver
- 2 interrupt push buttons
- 2 potentiometers for analog signal input
- 1 Rotary switch/encoder with RGB illuminated shaft
- Operating temperature from 0°C to +40°C
アプリケーション
