概要

The iW1780H high-performance AC/DC RapidCharge™ power supply controller pairs with Renesas' iW636 secondary-side IC to provide a simple, low cost, high-efficiency solution to support Qualcomm Quick Charge 3.0 and 2.0 protocols.

The iW1780H uses a unique secondary-to-primary digital communication link signal to receive all rapid charge commands from the iW636 RapidCharge™ secondary-side controller via a single optocoupler.

A full array of protection features integrated into the iW1780H include Renesas' SmartDefender™ advanced hiccup technology to address soft short circuits in charger cables and connectors, helping to prevent excessive heat build-up and damage.

Qualcomm® Quick Charge™ is a product of Qualcomm Technologies, Inc.

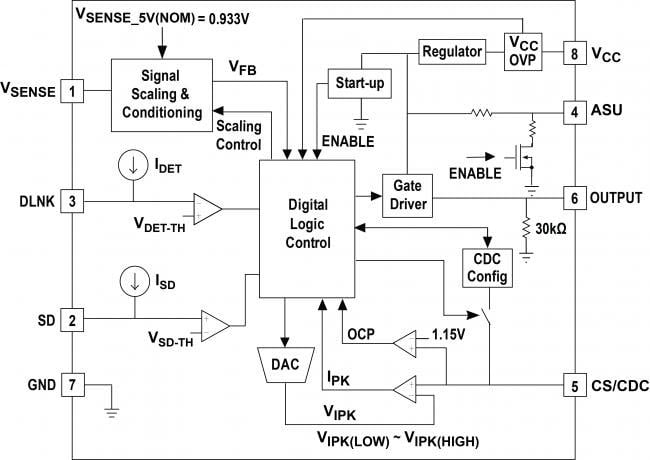

iW1780H Functional Block Diagram

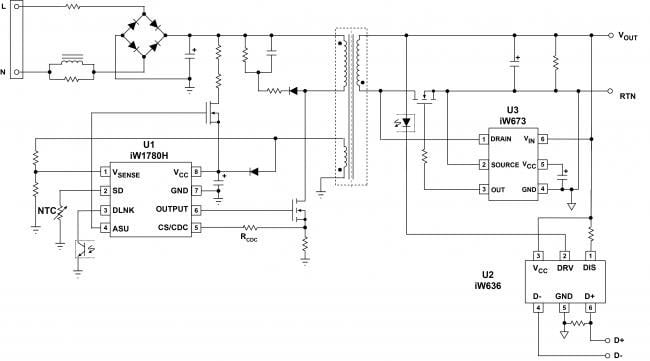

iW1780H Typical Applications Diagram
iW1780H Functional Block Diagram
iW1780H Typical Applications Diagram
  • Supports Qualcomm® Quick Charge™ 3.0 and 2.0 protocols
  • Proprietary secondary-to-primary digital communication and built-in decoder:
    • Reduces BOM and significantly simplifies design
  • Single optocoupler for all RapidCharge information
  • Low no-load power consumption <10mW
  • High efficiency up to 90%
  • Fully protected from fault conditions
    • Output overvoltage protection
    • Overcurrent protection
  • SmartDefender™ Smart Hiccup Technology
    • Helps protect cables and connectors from excessive heat and damage by reducing average power during short circuit by at least 50%

アプリケーション

  • Qualcomm® Quick Charge™ 3.0 or 2.0 power adapters
  • Rapid-charging AC/DC adapters for smartphones, tablets, other portable devices (3.6V to 12V, 1A to 3A)

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート
iW1780H Datasheet
ログインしてダウンロード PDF 1.01 MB
製品概要
iW1780H Product Summary
PDF 515 KB
2件

設計・開発

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    ご購入 / サンプル
    型名
    iW1780H-21
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    		 SOIC-8 Tape & Reel 1 サンプルを入手,
    iW1780H-27
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    		 SOIC-8 Tape & Reel 1 サンプルを入手,
    iW1780H-28
    circleアクティブ
    memory
    view_in_ar
    サンプル入手可能
    		 SOIC-8 Tape & Reel 1 サンプルを入手,
