概要

The RAA788000 is a low-power, power-line current sensor for contactless AC current measurements in the range of 2A to 5000A. The device consists of an on-chip Rogowski coil, a buffer amplifier, and a signal amplifier.

From an alternating power-line current, the magnetic flux flows through the on-chip coil, generating an electromotive force (EMF) that is amplified and filtered by a signal amplifier.

The amplifier output is typically fed into an analog-to-digital converter with a subsequent signal processor that calculates the current magnitude.

The RAA788000 operates from a single 2.7V to 3.6V supply. The device is available in a small 16 Ld TSSOP package and has an operation specified for the temperature range from -40°C to +105°C.

The RAA788000 is available in a 16 Ld thin shrink small outline package (TSSOP).

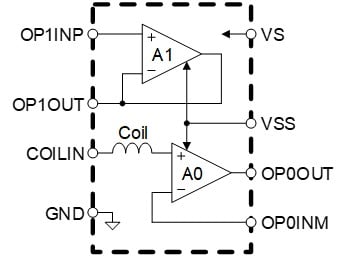

RAA788000 Block Diagram
RAA788000 Typical Application
RAA788000 Typical Application with Enable
RAA788000 Pin Assignments
RAA788000 Block Diagram
RAA788000 Typical Application
RAA788000 Typical Application with Enable
RAA788000 Pin Assignments
  • On-chip coil sensor
  • Low noise density: En = 50nV/√Hz at 10Hz
  • Low supply voltage: VS = 2.7V to 3.6V
  • Temperature range: -40°C to +105°C
  • Small 16 Ld TSSOP package

アプリケーション

  • Power-line current measurements
  • Watt meters

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート
RAA788000 Datasheet
PDF 1.36 MB
製品別信頼性資料
RAA788000 Reliability Report
PDF 179 KB
2件

設計・開発

ソフトウェア／ツール
iSim:PEオフラインシミュレーションツール
iSim Personal Edition（iSim：PE）は、プロジェクトの早い段階で設計サイクルを速め、プロジェクト初期のリスクを低減し、現在のみならず次世代の設計に耐えうる部品を選定します。
 Simulator ルネサス
1件

ソフトウェアダウンロード
分類 タイトル 日時
ソフトウェア／ツール－その他
RAA788000 Design Tool
ログインしてダウンロード XLSX 101 KB
1件
RTKA788000DE0010BU - Angle

RTKA788000DE0010BU

Evaluation
詳しくはこちら

RAA788000 Stacked Sensor Topology Evaluation Board, Two Current Sensor ICs, Current Measurement 80A, 2.7V to 3.6V Vin

The RTKA788000DE0010BU evaluation board allows the measurement of power line currents up to 80A.

The board includes two RAA788000 current sensor ICs in stacked sensor...

主要ドキュメント:
RTKA788000DE0010BU Evaluation Board Manual
RTKA788000DE0000BU - Angle

RTKA788000DE0000BU

Evaluation
詳しくはこちら

RAA788000 Opposite Sensor Topology Evaluation Board, Two Current Sensor IC, 40A Current Measurement, 2.7V to 3.6V Vin

The RTKA788000DE0000BU evaluation board allows for the measurement of power line currents up to 40A.

The board includes two RAA788000 current sensor ICs in an opposite...

主要ドキュメント:
RTKA788000DE0000BU Evaluation Board Manual
