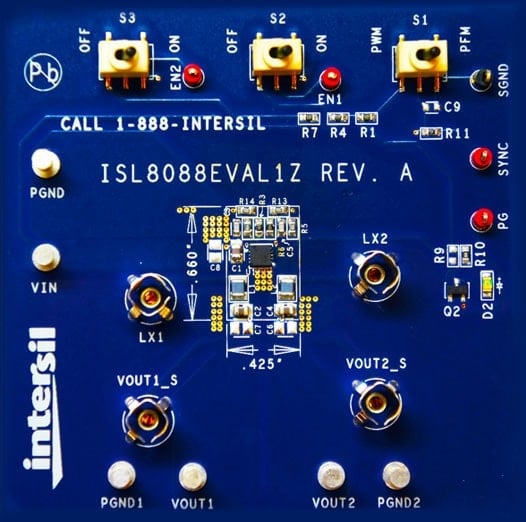

The ISL8088EVAL2Z evaluation board is intended for use by individuals with requirements for point-of-load (POL) applications sourcing from 2.75V to 5.5V. This evaluation board is used to demonstrate the performance of the ISL8088 low quiescent current mode converter.

ISL8088EVALxZ Synchronous Buck Regulator Eval Board
ISL8088EVALxZ Synchronous Buck Regulator Eval Board
  • Dual 800mA high-efficiency synchronous buck regulator with up to 97% efficiency
  • 800mA guaranteed output current per channel
  • Power-good (PG) output with 1ms delay
  • 2.75V to 5.5V supply voltage
  • 3% output accuracy over temperature/load/line
  • Start-up with pre-biased output
  • Internal digital soft-start - 2ms
  • Soft-stop output discharge during disabled
  • 30µA quiescent supply current in PFM mode
  • Selectable forced PWM mode and PFM mode
  • External synchronization up to 4MHz
  • Typical 6.5µA logic controlled shutdown current
  • 100% maximum duty cycle for lowest dropout
  • Internal current mode compensation
  • Peak current limiting
  • Over-temperature protection
  • Independent enable
  • Small form factor

アプリケーション

  • DC/DC POL modules
  • µC/µP, FPGA and DSP power
  • Plug-in DC/DC modules for routers and switchers
  • Test and measurement systems
  • Li-ion battery power devices
  • Barcode readers

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－開発ツール
ISL8088EVAL2Z User Guide
PDF 434 KB
データシート
ISL8088 Japanese Datasheet
PDF 956 KB 英語
2件

設計・開発

ソフトウェアダウンロード
分類 タイトル 日時
PCB設計ファイル
ISL8088EVAL2Z Design Files
ZIP 218 KB
1件
