概要

The ZL2101 is a 6A digital converter with auto compensation and integrated power management that combines an integrated synchronous step-down DC/DC converter with key power management functions in a small package, resulting in a flexible and integrated solution. The ZL2101 can provide an output voltage from 0. 54V to 5. 5V (with margin) from an input voltage between 4. 5V and 14V. Internal low rDS(ON) synchronous power MOSFETs enable the ZL2101 to deliver continuous loads up to 6A with high efficiency. An internal Schottky bootstrap diode reduces discrete component count. The ZL2101 also supports phase spreading to reduce system input capacitance. Power management features such as digital soft-start delay and ramp, sequencing, tracking, and margining can be configured by simple pin-strapping or through an on-chip serial port. The ZL2101 uses the PMBus™ protocol for communication with a host controller and the Digital-DC bus for interoperability between other Zilker Labs devices.

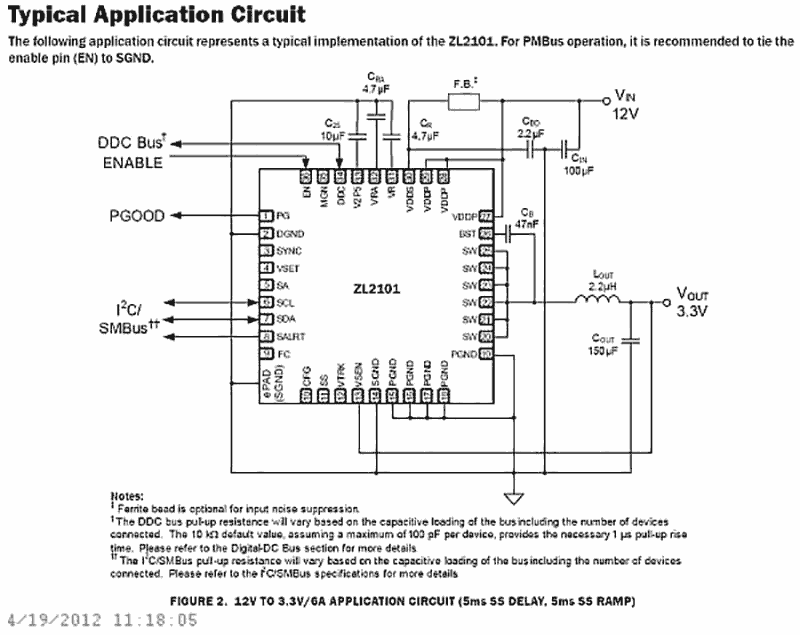

ZL2101 Functional Diagram
ZL2101 Functional Diagram
  • Integrated MOSFET Switches
  • 6A Continuous Output Current
  • ±1% Output Voltage Accuracy
  • Auto Compensation
  • Snapshot™ Parametric Capture
  • I2C/SMBus Interface, PMBus Compatible
  • Internal Non-Volatile Memory (NVM)

アプリケーション

  • Telecom, Networking, Storage equipment
  • Test and Measurement Equipment
  • Industrial Control Equipment
  • 5V and 12V Distributed Power Systems

ドキュメント

設計・開発

ソフトウェア／ツール
PowerNavigator Software
Renesas' PowerNavigator™ software allows simple configuration and monitoring of multiple Digital-DC devices using a PC with a USB interface.
ダウンロード
Production Configuration Utility User GuideProduction Configuration Utility v5.4.139PowerNavigator™ Software v5.4.139PowerNavigator User Guide for POLPMBus Interface Install Guide - Win7 x86 and x64
 Monitor Debugger/RAM Monitor ルネサス
1件

ソフトウェアダウンロード
分類 タイトル 日時
ソフトウェア／ツール－その他
Production Configuration Utility v5.4.139
ログインしてダウンロード ZIP 120.25 MB
ソフトウェア／ツール－ソフトウェア
PowerNavigator™ Software v5.4.139
ログインしてダウンロード ZIP 96.49 MB
2件

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    Pkg. Type
    Carrier Type
    MOQ
    ご購入 / サンプル
    型名
    ZL2101ALAF
    circle廃止品
    memory
    spa
    view_in_ar
    今すぐ購入する
    		QFN Tube 400
    ZL2101ALAFT
    circle廃止品
    memory
    spa
    view_in_ar
    		QFN Reel 4000
    ZL2101ALAFTK
    circle廃止品
    memory
    spa
    view_in_ar
    		QFN Reel 1000
