High-Current Buck-Boost Switching Regulator Evaluation Board
The ISL91110IIA-EVZ evaluation platform allows for quick evaluation of the high performance features of the ISL91110 buck-boost switching regulator. The ISL91110IIA-EVZ...
概要
説明
ISL91110 and ISL91110IR are high-current buck-boost switching regulators for systems using new battery chemistries. They use Intersil’s proprietary buck-boost algorithm to maintain voltage regulation while providing excellent efficiency and very low output voltage ripple when the input voltage is close to the output voltage. ISL91110 and ISL91110IR are capable of delivering at least 2A continuous output current (VOUT = 3.3V) over a battery voltage range of 2.5V to 4.35V. This maximizes the energy utilization of advanced single-cell Li-ion battery chemistries that have significant capacity left at voltages below the system voltage. Their fully synchronous low ON-resistance 4-switch architecture and a low quiescent current of only 35μA optimize efficiency under all load conditions.

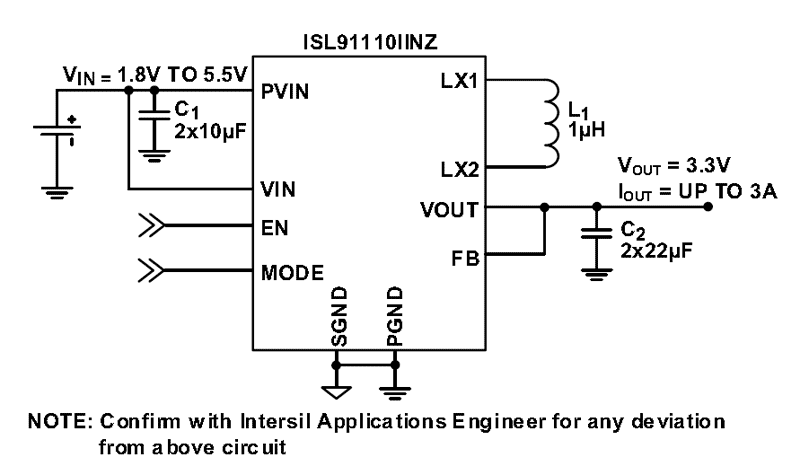

ISL91110 and ISL91110IR support standalone applications with a fixed 3.3V or 3.5V output voltage or adjustable output voltage with an external resistor divider. Output voltages as low as 1.0V or as high as 5.2V are supported. ISL91110 and ISL91110IR require only a single inductor and very few external components. Power supply solution size is minimized by its 2. 5MHz switching frequency, allowing small size external components.
The ISL91110 is available in a 25-bump, 0.4mm pitch WLCSP (2.33mm x 2.07mm) and the ISL91110IR is available in a 4mm x 4mm, 20 Ld TQFN package.
特長
- Accepts input voltages above or below regulated output voltage
- Automatic and seamless transitions between buck and boost modes
- Input voltage range: 1.8V to 5.5V
- Output current: up to 2A (PVIN = 3.4V, VOUT = 5V) (ISL91110IR only)
- Output current: up to 2A (PVIN = 2.5V, VOUT = 3.3V) (ISL91110 and ISL91110IR)
- Burst current: up to 3A (PVIN = 3V, VOUT = 3.3V, tON < 600μs, t = 4.6ms)
- High efficiency: up to 96%
- High efficiency: up to 95% (ISL91110IR only)
- 35μA quiescent current maximizes light- load efficiency
- 2.5MHz switching frequency minimizes external component size
- Fully protected for short-circuit, over-temperature, and undervoltage
- Small 2.33mmx2.07mm WLCSP (ISL91110 only)
- Small 4mmx4mm 20 Ld TQFN package (ISL91110IR only)
製品比較
アプリケーション
アプリケーション
- Brownout free system voltage for smartphones and tablet PCs
- Wireless communication devices
- 2G/3G/4G RF power amplifiers
ドキュメント
= ピックアップ
ログイン後、ご登録が可能となります。
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日時 |
| データシート | PDF 778 KB | |
| アプリケーションノート | PDF 592 KB | |
| 製品変更通知 | PDF 89 KB | |
| データシート | PDF 857 KB | |
| アプリケーションノート | PDF 509 KB | |
| アプリケーションノート | PDF 397 KB | |
6件
|
||
設計・開発
ソフトウェア／ツール
ソフトウェア／ツール
| Software title
|
Software type
|
会社名
|
|---|---|---|
| iSim:PEオフラインシミュレーションツール iSim Personal Edition（iSim：PE）は、プロジェクトの早い段階で設計サイクルを速め、プロジェクト初期のリスクを低減し、現在のみならず次世代の設計に耐えうる部品を選定します。
|
Simulator | ルネサス |
1件
|
||
ボード＆キット
High-Current Buck-Boost Switching Regulator Evaluation Board
The ISL91110II2A-EVZ evaluation platform allows for quick evaluation of the high-performance features of the ISL91110 buck-boost switching regulator. The...
High-Current Buck-Boost Switching Regulator Evaluation Board
The ISL91110IIN-EVZ evaluation platform allows for quick evaluation of the high-performance features of the ISL91110 buck-boost switching regulator. The ISL91110IIN-EVZ...
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
Pkg. Type |
Carrier Type |
Moisture Sensitivity Level (MSL) |
Price (USD) | 1ku |
ご購入 / サンプル |
|
|---|---|---|---|---|---|
| 型名 | |||||
| WLCSP-TKCURDLBC | Reel | 1 | サンプルを入手, | ||
ISL91110II2AZ-T7A アクティブ サンプル入手可能
今すぐ購入する
|
WLCSP-TKCURDLBC | Reel | 1 | 1.608 | サンプルを入手, |
| WLCSP-TKCURDLBC | Reel | 1 | サンプルを入手, | ||
ISL91110IIAZ-T7A アクティブ サンプル入手可能
今すぐ購入する
|
WLCSP-TKCURDLBC | Reel | 1 | サンプルを入手, | |
| WLCSP-TKCURDLBC | Reel | 1 | サンプルを入手, | ||
| WLCSP-TKCURDLBC | Reel | 1 | 1.827 | サンプルを入手, | |
| QFN | Reel | 3 | サンプルを入手, | ||
| QFN | Reel | 3 | 2.884 | サンプルを入手, | |
| QFN | Reel | 3 | サンプルを入手, | ||
ISL91110IRAZ-T7A アクティブ サンプル入手可能
今すぐ購入する
|
QFN | Reel | 3 | 2.15 | サンプルを入手, |
| QFN | Reel | 3 | サンプルを入手, | ||
| QFN | Reel | 3 | 2.884 | サンプルを入手, |
