概要
説明
The P91E0A is a programmable, multi-channel power management IC (PMIC) designed to meet high performance requirements and provide high-feature integration to minimize system board area and BOM cost. The PMIC includes subsystems for voltage regulation, power sequencing management, A/D conversion, GPIOs, PWMs, and others. The P91E0A is factory programmable for application-specific sequencing and output voltage requirements. The device supports the serial voltage ID (SVID) interface for VCC, VNN, and VDDQ (optional). The output current capability of the P91E0A solution can be increased by adding Renesas' intelligent P9148A distributed power units (DPU).
特長
- 3.135 V to 5.25 V input voltage range
- 7 programmable step-down converters of which 5 with integrated Power FETs
- Supports the P9148A DPU distributed power unit (DPU)
- 8 LDOs, including a VTT
- SVID interface supporting IMVP8 protocol
- 10-bit ADC
- 15 programmable GPIOs and 12 programmable Enable Outputs
- Host interface and system power management functions
- High-speed I²C interface
- Factory programmable default power sequence and settings
- Industrial temperature range of -40 °C to +85 °C

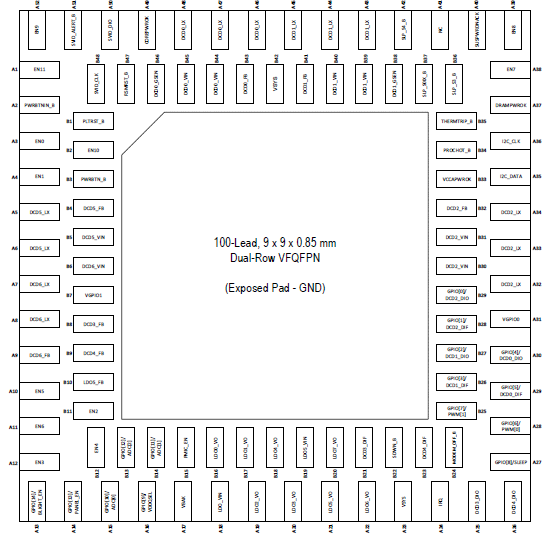

- 9mm x 9mm dual-row 100-GQFN (Type3-PCB) package option (NHG100)
製品比較
アプリケーション
ドキュメント
ピックアップ
ログイン後、ご登録が可能となります。
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日時 |
| データシート | PDF 2.04 MB | |
| 製品変更通知 | PDF 2.03 MB | |
| 製品変更通知 | PDF 175 KB | |
| デバイスエラッタ | PDF 152 KB | |
| デバイスエラッタ | PDF 152 KB | |
| デバイスエラッタ | PDF 283 KB | |
6件
|
||
設計・開発
ボード＆キット
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
| VFQFPN | 100 | Tray | I | Yes | 3 | ||
| VFQFPN | 100 | Reel | I | Yes | 3 |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product

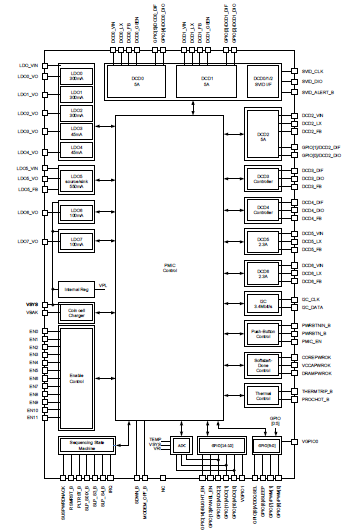

- Chip icon next to the right of the document icon in row: View the block diagram for this product
