Evaluation Board for F1912 6-bit Digital Step Attenuator
The F1912EVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1912 digital step attenuator. Attenuation may be set using either...

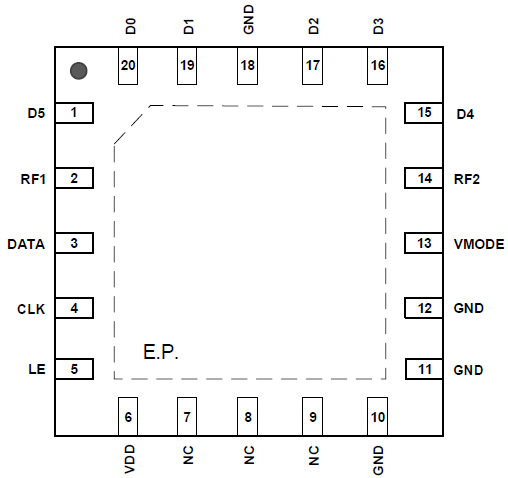

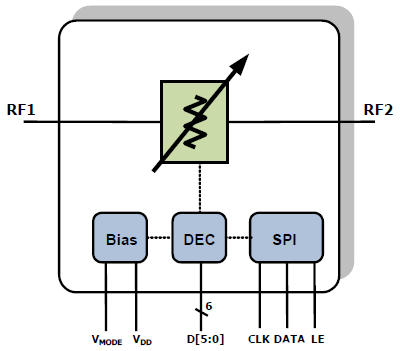

The F1912 Glitch-Free™ Digital Step Attenuator (DSA) offers very high reliability due to its monolithic silicon die construction in a compact 4mm x 4mm 20-pin package QFN package. The silicon design has very low insertion loss and low distortion (> +60dBm IP3I.) The device has pinpoint accuracy and settles to a final attenuation value within 400nsec. Most importantly, the F1912 includes Renesas' Glitch-Free technology which results in low overshoot and ringing during MSB transitions.
|
|
|
---|---|---|
