F1192B

概要

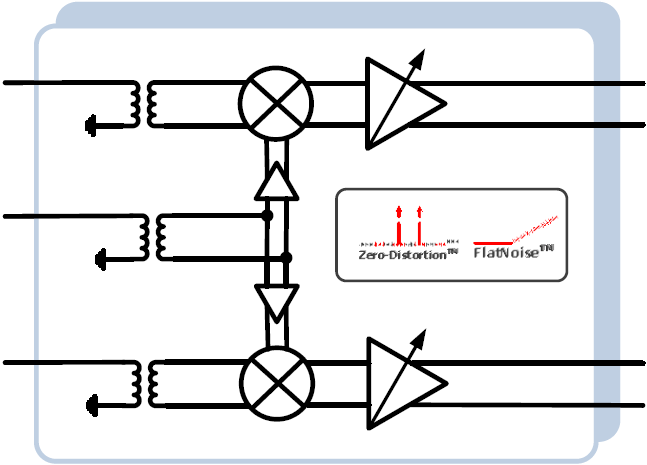

The F1192B dual-channel RF mixer offers maximum performance and flexibility at minimum power consumption. The unique and patented settable-gain feature allows it to be used in a very wide variety of radio card applications, even allowing for dynamic adjustment of gain to maximize performance on the fly. The extremely wide RF and IF bandwidths are achieved with a fixed BOM with all internal matching. The device can function with as little as -6dBm LO power and with independent channel shutdown modes for ease of integration into high-order TDD MIMO systems. The F1192B has also been optimized for use in both GSM and LTE systems.

RF range: 400MHz to 3800MHz
LO range: 400MHz to 3600MHz
IF range: 50MHz to 600MHz
Dual path for MIMO
4 gain settings: 11dB, 8dB, 5dB, 2dB

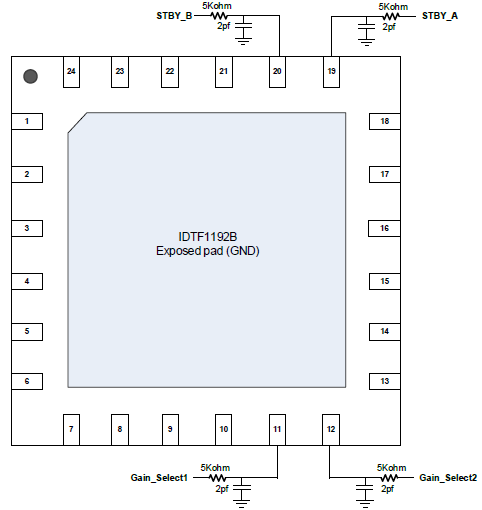

2-bit gain step control
Ideal for multi-carrier systems
+35dBm OIP3
Low noise figure at any gain setting via FlatNoise™ technology

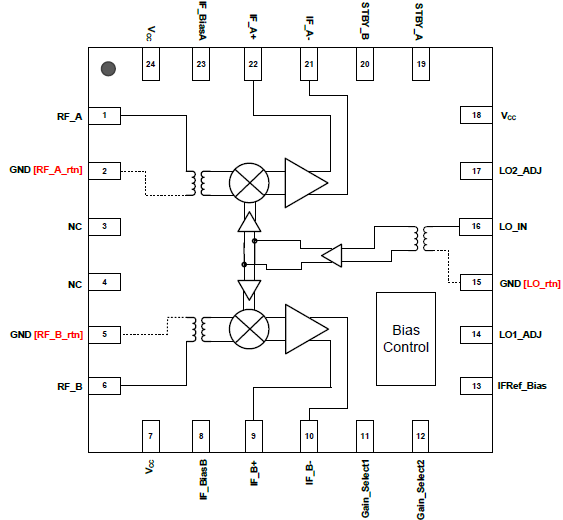

Z = 200Ω IF balanced, 50Ω RF, 50Ω LO single-ended
All internally matched. Single BOM for all RF, LO, and IF frequencies
4mm x 4mm, 24-TQFN package
Independent Path Standby mode
75nsec settling for gain adjustment
V_CC = 3.3V, 835mW

ドキュメント


分類	タイトル	日時
データシート	F1192B Datasheet PDF 1.49 MB	2017年8月29日
ガイド	RF Product Selection Guide PDF 2.24 MB	2023年9月27日
製品変更通知	PCN# : 230017 Add alternate assembly location on select VFQFPN package PDF 493 KB	2023年8月4日
製品概要	RF Mixer Family PDF 1.12 MB	2020年6月19日
製品変更通知	PCN# : TB1912-02(R1) Convert Shipping Media from Tube or Tray to Cut Reel PDF 5.71 MB	2020年6月9日
製品変更通知	PCN# : TB1912-02 Convert Shipping Media from Tube or Tray to Cut Reel PDF 5.61 MB	2020年1月8日
6件

設計・開発

F1192BEVBI

Evaluation

詳しくはこちら

Evaluation Board for F1192B VersaMixer™ Wideband / Low-Power Dual Channel

The F1192BEVBI is a fully populated evaluation board which allows the customer to easily evaluate the F1192B. There is on-board 4:1 Balun to translate 200Ω IF output...

主要ドキュメント:

F1192B Datasheet

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる

製品選択

Processing table

	Pkg. Type	Lead Count (#)	Temp. Grade	Pb (Lead) Free	Carrier Type	Moisture Sensitivity Level (MSL)	Price (USD) \| 1ku	ご購入 / サンプル
(2) アクティブ (0) Obsolete / NRND / LTB	VFQFPN	最大値最小値	K	Yes	Reel Tray	1	最大値参考価格は、1,000個を基準としています。また、予告なく変更される場合があります。最小値参考価格は、1,000個を基準としています。また、予告なく変更される場合があります。	サンプルを入手購入/見積
型名	Logical Operator		Logical Operator	Logical Operator	Logical Operator	Logical Operator		Logical Operator
F1192BNLGK circleアクティブ memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model サンプル入手可能今すぐ購入する	VFQFPN	24	K	Yes	Tray	1	5.186	サンプルを入手, 購入/見積
F1192BNLGK8 circleアクティブ memoryPkg. Info view_in_ar PCB Symbol, Footprint, and 3D Model	VFQFPN	24	K	Yes	Reel	1		購入/見積

Tips for Using This Parametric Table:

Hide Filters button in header: Collapse or expands filters
Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
Reset button in header: Reset all filters to the page default
Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
Export button in header: Export the filtered results of the table to an Excel document
Filter parts search bar in header: Type to filter table results by part number
Hide column button in column headers: Select to hide columns in table
AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
Document icon next to product name in row: View the featured document for this product
Chip icon next to the right of the document icon in row: View the block diagram for this product
Cart icon to the right of the chip icon: Indicates that samples are available for this product

ビデオ&トレーニング

IDT Versamixer RF IF Mixer Demonstration

A demonstration of IDT's F1192 RF mixer. The VersaMixer™ family of ultra-wide bandwidth RF mixers offer unparalleled flexibility. Delivering IDT’s (acquired by Renesas) hallmark high linearity, the VersaMixer devices are designed for any radio system requiring high performance and low power operating between 400MHz and 3800MHz. The F1192 is a dual-channel RF mixer, while the F1792 is single-channel.

The devices offer configurable gain operation for use in a wide array of radio card applications, including 2G-to-5G multimode remote radio units, backhaul systems, and public safety infrastructure. Coupled with ultra-wide bandwidth, this gives radio system designers the flexibility to optimize the receive system gain, noise, and linearity budget for virtually any application. Low power consumption — typically just 835mW total for two channels — supports high-density PCB layout design in modern remote radio units and small cells.

Unlike competitive offerings, the VersaMixer devices function over the entire operating bandwidth without any changes in external components. This means that a single bill of materials can support various RF and IF operating bandwidths, easing integration into different systems, and keeping a check on costs and time to market.
