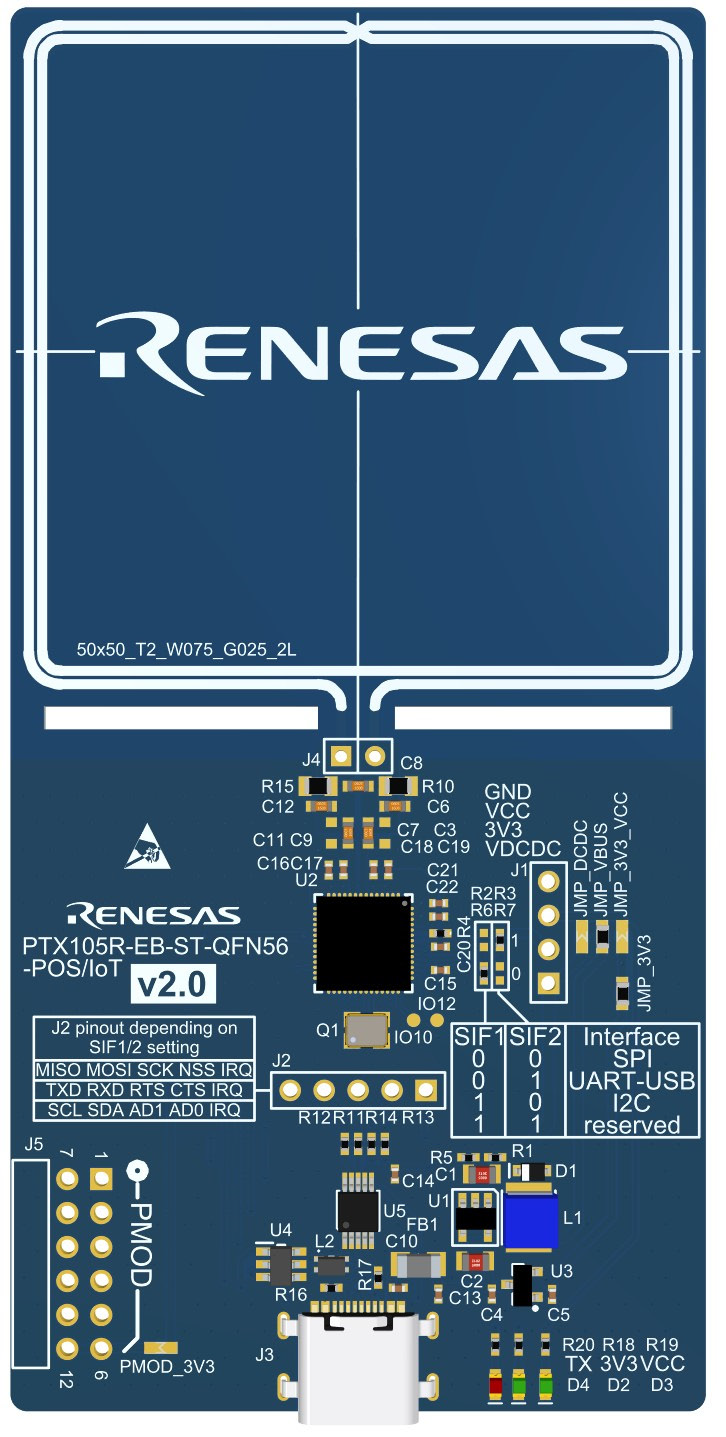

The demo kit for PTX105R enables quick evaluation of the PTX105R NFC reader IC for Internet of Things (IoT) applications.
The PTX105R is an optimized solution for IoT applications with small form factors due to its unique sine wave architecture. Superior sensitivity, accurate digital wave shaping, and a reduced bill-of-materials compared to conventional square-wave NFC controllers enable optimal interoperability, simplified FCC certification and faster NFC Forum compliance.
特長
- Mid-power (1W) NFC reader kit for universal reader hardware platform IC PTX105R.
- Easy-to-use, ready-to-go software integration into any terminal/device host MCU architecture supporting all types of NFC protocols, standards, and tag protocols (ISO 14443 A/B, ISO 18092, ISO 15693, FeliCa, and others)
- NFC P2P (initiator) and Card Emulation (HCE)
- Digital dynamic power control (DDPC), DIRAC®: EMI filter-less solution, advanced digital wave-shaping, phase accurate active load-modulation in card mode, very high dynamic range receiver (VHDRR)
- RF-design supported with config tool and SDKs
アプリケーション
アプリケーション
- Mid-power universal multi-market reader solutions
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
ビデオ&トレーニング
The IoT market has been booming over the last few years, to say the least. By 2030 there will be approximately half a trillion IoT devices shipped to the market, and already by the end of 2021, almost 7 billion IoT devices shipped will be NFC enabled.
NFC contributes a big deal to the growth and development of IoT applications, enabling a variety of different features in different setups. Ranging from consumer devices to industry 4.0, electric vehicles, and smart home ecosystems – NFC is an integral part of any application design. Our products at Renesas are designed with the end application in mind.
In this video, we present to you the benefits that PTX100R brings to the IoT arena and what can be achieved by using our industry's best NFC IC.
Read more about the innovative PTX100R and the demo kit solution for Internet of Things applications.
