概要

The EVK-8V49NS0312 evaluation board kit is a platform that is designed to help the customer evaluate Renesas's 8V49NS0312 FemtoClockR NG 12-output Clock Generator. When the board is connected to a PC running Renesas Timing Commander software through USB, the device can be configured and programmed through a graphical interface or through register settings, to generate frequencies with best-in-class performance.

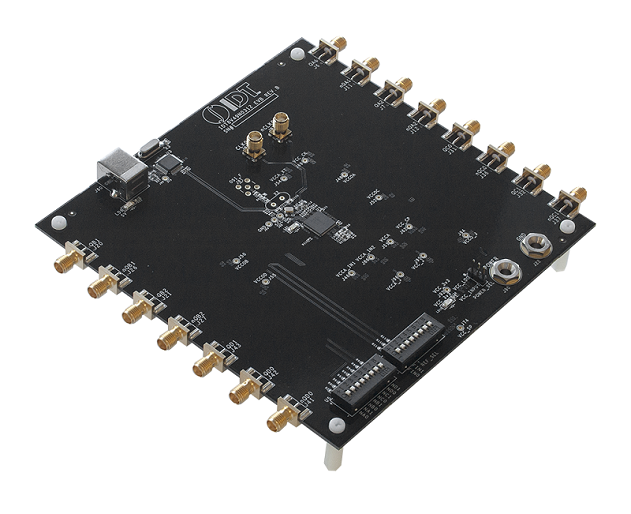

8V49NS0312 Evaluation Board - perspective
8V49NS0312 Evaluation Board - top
8V49NS0312 Evaluation Board - perspective
8V49NS0312 Evaluation Board - top
