Low Power High-Definition Haptic Driver Evaluation Kit
The DA728x-EVAL-KIT is designed to evaluate the DA7280x family of high-definition (HD) haptic drivers. The board is powered and controlled from the onboard USB...
主要ドキュメント:
概要
説明

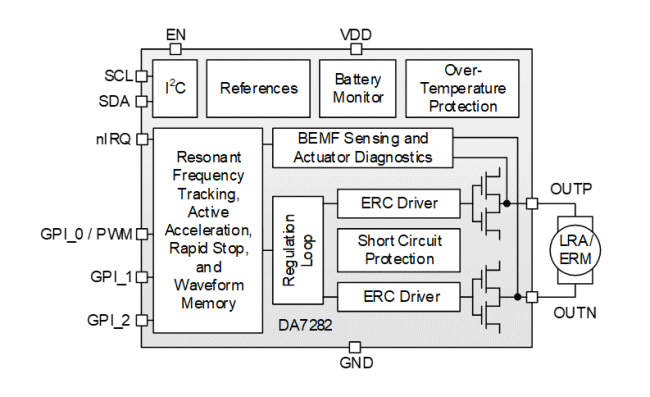

The DA7282 ultra-low power haptic driver, combines custom drive sequences, on- and off-resonance, at up to 1kHz. The DA7282 drives both ERM and LRA (narrow and wideband) actuators and track resonance up to 300Hz producing highly complex click/vibration touch effects in a wide range of applications.
The DA7282 differs from the DA7280 and DA7281 by providing the capability to go into a full standby mode, lowering current consumption to 5nA.
Benefits
- 20x lower standby current, minimizing the drain on small battery systems
- Constant resonance frequency tracking through continuous current drive monitoring
- Ultra-low power consumption meaning longer battery life
- Only 0.75ms latency when responding from ultra-low power state
- Drives LRAs off-resonance for custom effects, or dual-resonant systems for two-dimensional vibration
- Enables wideband effects as well as supporting dual-resonant systems
- Drives distinct haptic effects triggered by multiple inputs without need to wake the host processor
- Detects issues with motor automatically
- Frequency, time, amplitude triplets to program the waveform
- Quick and easy software development using the SmartCanvas™ GUI
特長
- 5nA standby current consumption
- Wideband LRA driver: 25Hz to 1kHz with resonant mode
- Frequency tracking support up to 300Hz
- Low-latency direct drive for haptics
- On-the-fly diagnostics
- Custom waveform sequences
- Three methods of drive with Linux and C-like driver (HAL)
- Packages
- WLCSP-12 (0.4mm pitch)
- QFN-12 (0.65mm pitch)
製品比較
アプリケーション
- Smartphone
- Gaming
- Wearables
- Portable computing systems (POS, barcode scanners, etc.)
- Computing – All-in-ones (display), notebook PC
- Any display driven consumer product
- Automotive
- Industrial
- Medical
ドキュメント
ピックアップ
ログイン後、ご登録が可能となります。
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日時 |
| データシート | PDF 1.41 MB | |
| マニュアル－開発ツール | PDF 3.41 MB | |
| マニュアル－開発ツール | PDF 2.78 MB | |
3件
|
||
設計・開発
ソフトウェア／ツール
ボード＆キット
次世代ヒューマンマシンインタフェース用低消費電力高精細ハプティックドライバ評価ボード
US082-DA7280EVZ評価ボードは、DA7280超低消費電力ハプティックドライバを搭載したカスタムシステム設計のため、迅速なプロトタイピングを可能にします。このボードには、オンボードモータ・ドライバ用の標準的なPmod™ タイプ6A（拡張I2C）接続が用意されており...
主要ドキュメント:
モデル
ECADモデル
[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。
Processing table
| 12-QFN | Tape & Reel | ||||
| 12-QFN | Tape & Reel | 0.8636 | |||
| 12-WLCSP | Tape & Reel | 1 | 0.7114 | ||
| 12-WLCSP | Tape & Reel | 1 | 0.8636 |
