概要
説明

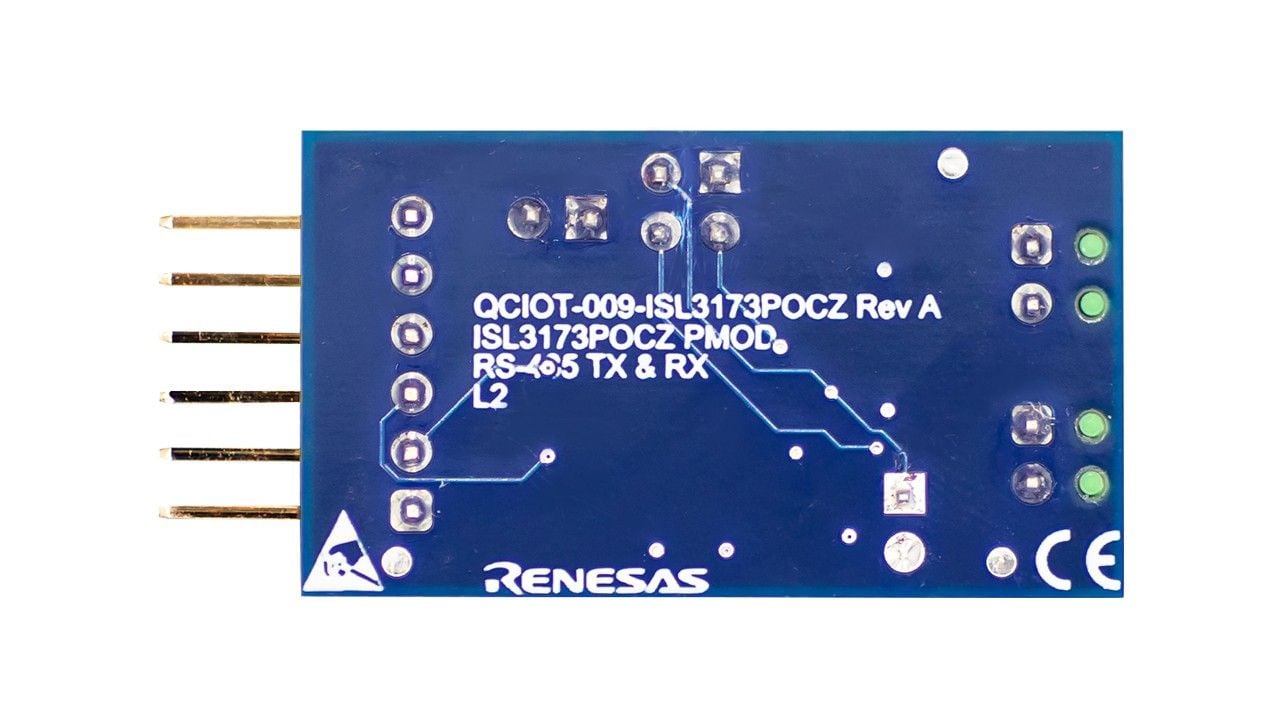

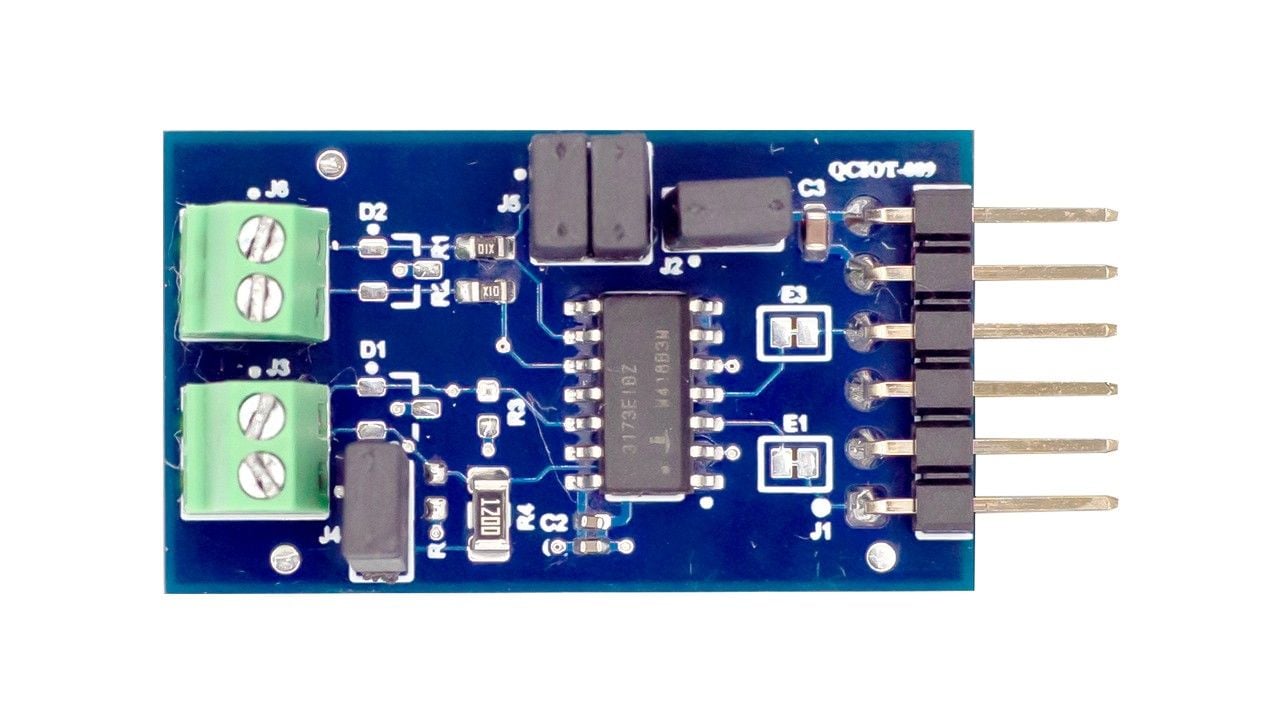

The QCIOT-ISL3173POCZ board enables the usage of the ISL3173 for RS485 communications. The board provides a standard PMOD™ Type 3 connection to plug into the MCU evaluation kit.
The QCIOT-ISL3173POCZ features a configurable interface that can be used in Half or Full Duplex mode. With its standard connector and software support, the QCIOT ISL3173POCZ is ideal for Renesas’ Quick-Connect IoT to rapidly create an IoT system.
特長
- Configurable half and full duplex modes with
jumpers - Flow control support
- Configurable termination resistors
- High speed RS485 enables long distance
communications - Differential interface for noise immunity
- PMOD type 3 interface for easy connectivity
アプリケーション
アプリケーション
- Quick-Connect-IoT
設計・開発
ソフトウェア／ツール
サンプルコード
