概要

The ISL9123xIIx-EVZ platform allows for quick evaluation of the high-performance features of the ISL9123, ISL9123A, and ISL9123B ultra-low IQ buck regulator in the WLCSP package. The ISL9123B is a highly integrated buck switching regulator capable of supplying output voltage down to 0.4V. The device features an extremely low quiescent current consumption of 950nA in regulation mode, 140nA in forced bypass mode (ISL9123/A), and 7nA in shutdown mode. It provides 86% efficiency at 10μA load (VIN = 3.6V, VOUT = 3.3V) and has peak efficiency greater than 97% (VIN = 3.6V, VOUT = 3.3V) for ISL9123/A. It supports input voltages from 1.8V to 5.5V. The device features an I2C interface, which allows the user to access its internal registers for output voltage and operation mode control.

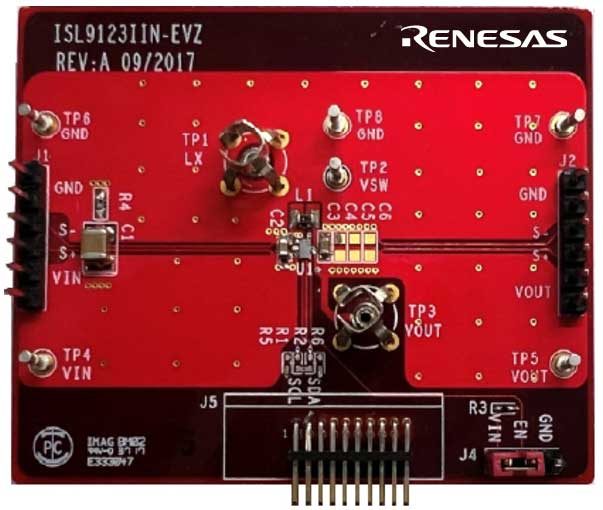

ISL9123xIIx-EVZ Evaluation Board
ISL9123xIIx-EVZ Evaluation Board
  • Small, compact design
  • I2C interface for programmable VOUT, slew rate and various operation modes (forced bypass, auto-PFM, forced PWM)
  • Connectors, test points and jumpers for easy probing

アプリケーション

  • Smart watches and wristband devices
  • Wireless earphones
  • Internet of Things (IoT) devices
  • Water, gas, and oil meters
  • Portable medical devices
  • Hearing aid devices

ドキュメント

= ピックアップ
分類 タイトル 日時
マニュアル－開発ツール
ISL9123xIIx-EVZ Evaluation Board Manual
PDF 1.39 MB
データシート
ISL9123, ISL9123A, ISL9123B Datasheet
PDF 1.57 MB
2件

製品選択

    Processing table
    説明
    ご購入 / サンプル
    型名
    ISL9123IIC-EVZ
    circleアクティブ
    サンプル入手可能
    今すぐ購入する
    		Evaluate ISL9123IIC (WLCSP package; default VOUT = 1.8V) サンプルを入手,
    ISL9123IIN-EVZ
    circleアクティブ
    サンプル入手可能
    		 Evaluate ISL9123IIN (WLCSP package; default VOUT = 3V) サンプルを入手,
    ISL9123BII9-EVZ
    info
    		 Evaluate ISL9123BII9 (WLCSP package; default VOUT = 0.88V)
    ISL9123AIIC-EVZ
    info
    		 Evaluate ISL9123AIIC (WLCSP package; default VOUT = 1.8V)
