概要

The RAA211230 is an integrated 24V, 3A synchronous buck regulator with current mode constant on-time (COT) control. The RAA211230 features comprehensive protection including input undervoltage lockout (UVLO), overcurrent protection (OCP), output undervoltage protection (OUVP), and over-temperature protection (OTP).

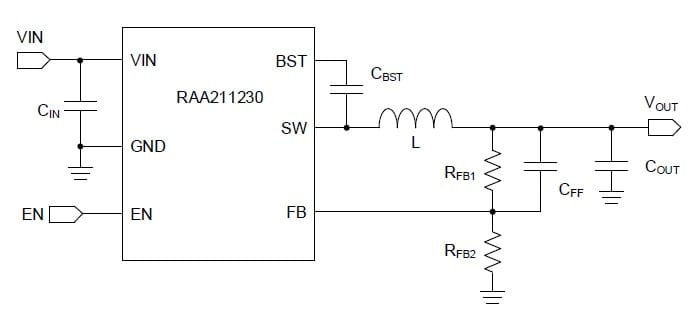

RAA211230 Typical Application Circuit Diagram
RAA211230 Pin Assignments
RAA211230 Typical Application Circuit Diagram
RAA211230 Pin Assignments
  • 4.5V to 24V input supply range
  • Up to 3A output current
  • Integrated high-side (85mΩ) and low-side (45mΩ) MOSFETs
  • 400μA quiescent current
  • Minimum on-time of 60ns and minimum off-time of 275ns
  • 0.765V reference voltage with 2% accuracy
  • PFM mode under light load condition
  • Current mode constant on-time (COT) control with internal compensation
  • Internal 0.8ms soft start time
  • Protection: low-side overcurrent (LSOC) limit, input undervoltage lockout (UVLO), over-temperature protection (OTP), output undervoltage protection (OUVP) with Hiccup mode
  • Accurate EN threshold
  • 6-lead TSOT23 package

アプリケーション

  • General purpose
  • Industrial power supplies
  • Embedded systems and I/O supplies

ドキュメント

= ピックアップ
分類 タイトル 日時
データシート
RAA211230 Datasheet
PDF 3.97 MB
1件

設計・開発

ソフトウェア／ツール
iSim:PEオフラインシミュレーションツール
iSim Personal Edition（iSim：PE）は、プロジェクトの早い段階で設計サイクルを速め、プロジェクト初期のリスクを低減し、現在のみならず次世代の設計に耐えうる部品を選定します。
ダウンロード
RAA211230 Startup iSim:PE ModelRAA211230 Analysis iSim:PE Model
 Simulator ルネサス
1件

ソフトウェアダウンロード
分類 タイトル 日時
ソフトウェア／ツール－その他
RAA211230 Power Design Spreadsheet
XLSX 286 KB
1件
RTKA211230DE0020BU Evaluation Board

RTKA211230DE0020BU

Evaluation
詳しくはこちら

RAA211230 Synchronous Buck Evaluation Board with 4.5V to 24V Input Range, 3.3V 3A Output (TSOT23-6 version)

The RTKA211230DE0020BU board evaluates the RAA211230, a DC/DC synchronous step-down regulator with current mode Constant On Time (COT) control. The RAA211230 supports a...

主要ドキュメント:
RTKA211230DE0020BU Evaluation Board Manual

ECADモデル

[製品選択]テーブル内の製品名をクリックするとSamacSysが提供する回路図シンボル、PCBフットプリント、3D CADモデルがご確認いただけます。 お探しのシンボルやモデルが見つからない場合、Webサイトから直接リクエストできます。

ECADモデルを調べる
Diagram of ECAD Models

製品選択

    Processing table
    PLP
    Pkg. Type
    Carrier Type
    Moisture Sensitivity Level (MSL)
    Price (USD) | 1ku
    ご購入 / サンプル
    型名
    RAA2112304GP3#JA0
    circleアクティブ
    memory
    spa
    view_in_ar
    サンプル入手可能
    今すぐ購入する
    		2033 12月 TSOT Reel 1 0.7459 サンプルを入手,
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product

    ビデオ&トレーニング

    Compact Buck Regulators with COT Control

    Renesas’ RAA211230/320 family of synchronous buck regulators are integrated with current mode constant on-time (COT) control which enables fast transient response while shrinking the output filter size. Visit renesas.com/cot-regulators to learn more about how these high performance, compact and pin-compatible COT regulators will make designing your power supply easy!

    Video List
    Compact Buck Regulators with COT Control
