SLG59M1736C Evaluation Board
The SLG59M1736C-EVB board evaluates the SLG59M1736C GreenFET, Single P-Channel Load Switch.
概要
説明

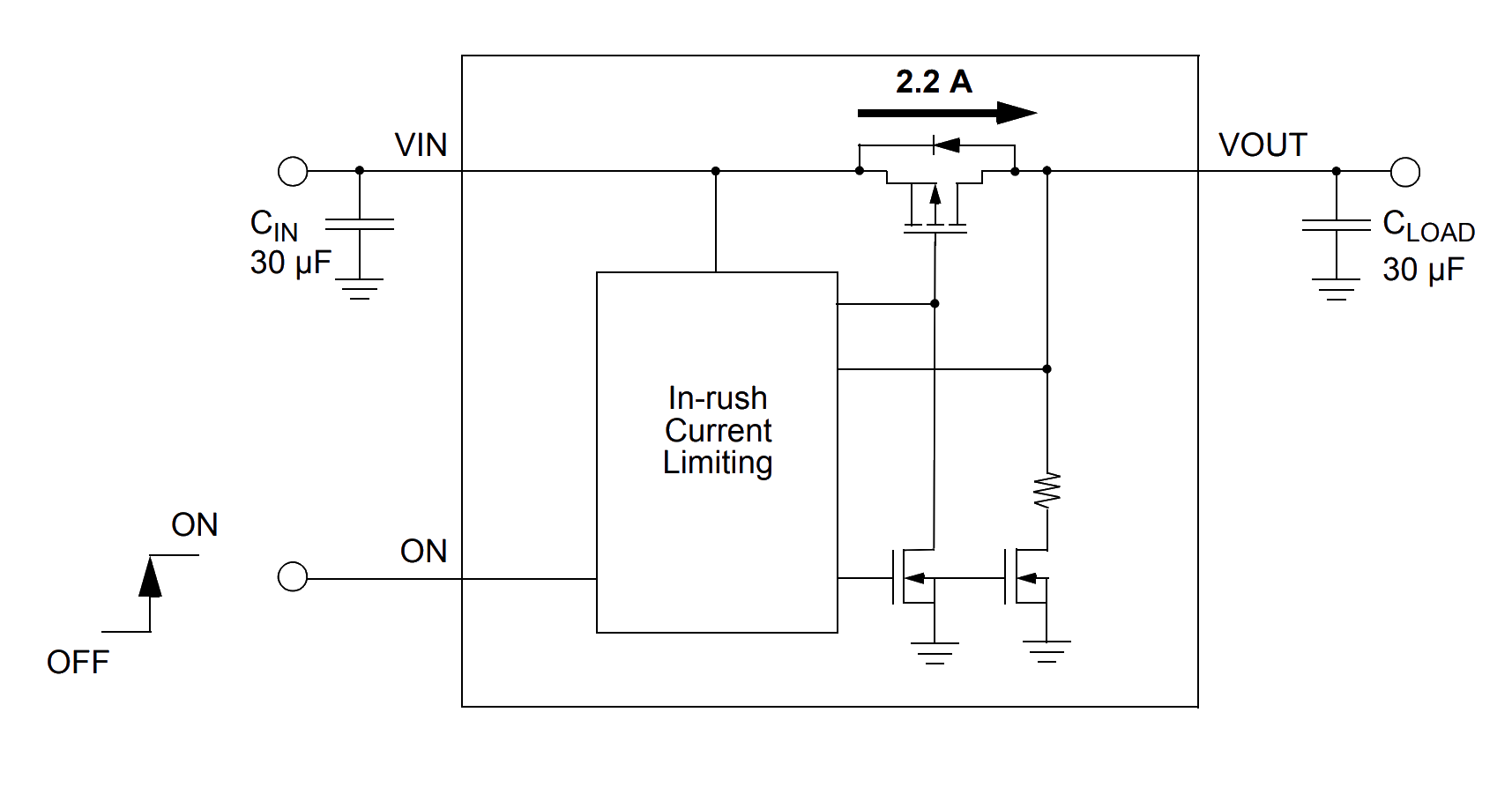

Operating from a 2.5V to 5.5V power supply, the SLG59M1736C is a self‑powered, high‑performance 33mΩ, 2.2A single-channel pFET load switch with a controlled VIN inrush current profile. The SLG59M1736C’s low supply current and controlled VIN inrush current profile make it an ideal pFET load switch in small form factor personal health monitor and watch applications. Using a proprietary MOSFET design, the SLG59M1736C achieves a low RDSON across the entire input voltage range. Through the application of proprietary technology, the SLG59M1736C’s can be used in applications up to 2.2A with a very‑small 0.64mm² WLCSP form factor.
特長
- Key applications: Small form factor personal health monitors and watches
- Low RDSON: 33mΩ
- Continuous IDS: Up to 2.2A
- Wide input voltage range: 2.5V ≤ VIN ≤ 5.5V
- Controlled VIN inrush current profile protects Li-ion batteries
- Integrated VOUT discharge resistor
- Operating temperature range: -40 °C to 85 °C
- Other options available
- Fixed Soft-start Control
- VOUT Discharge Disabled
- Reverse-voltage (VOUT-VIN) detection
製品比較
アプリケーション
アプリケーション
- Small Form Factor
- Personal Health Monitors
- Watches
